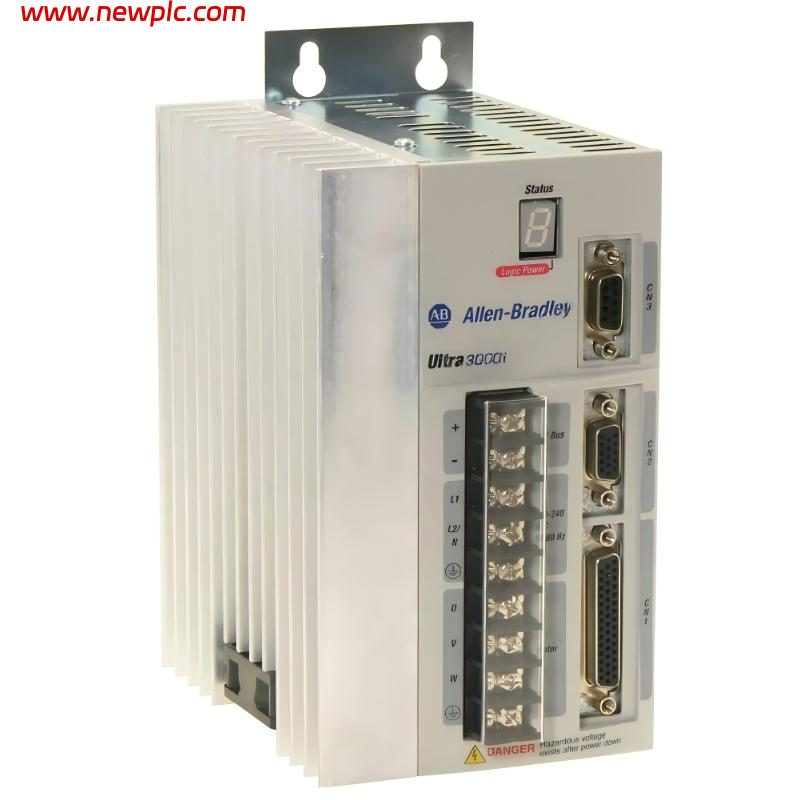

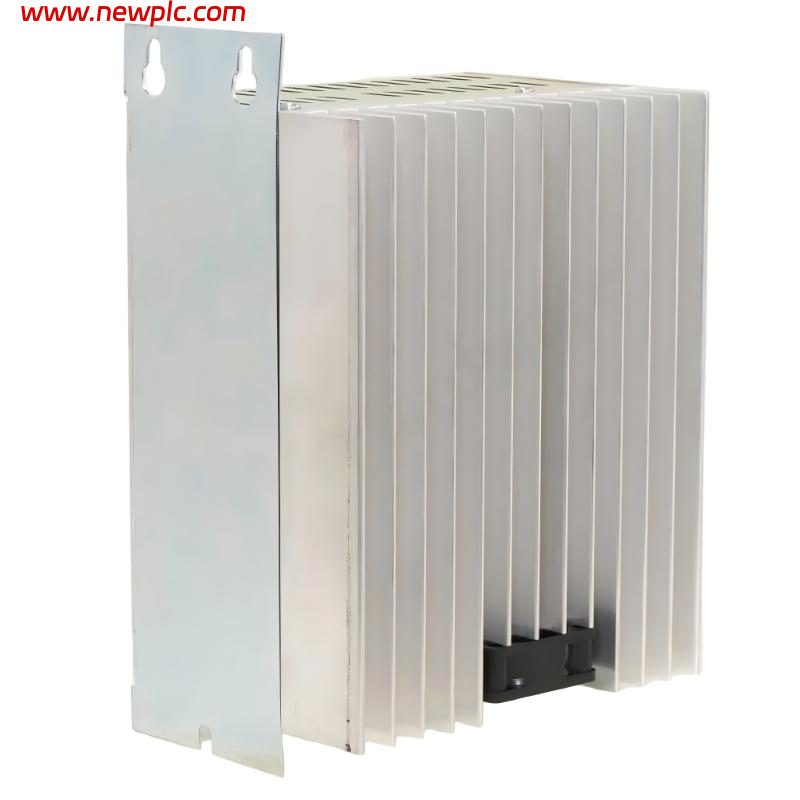

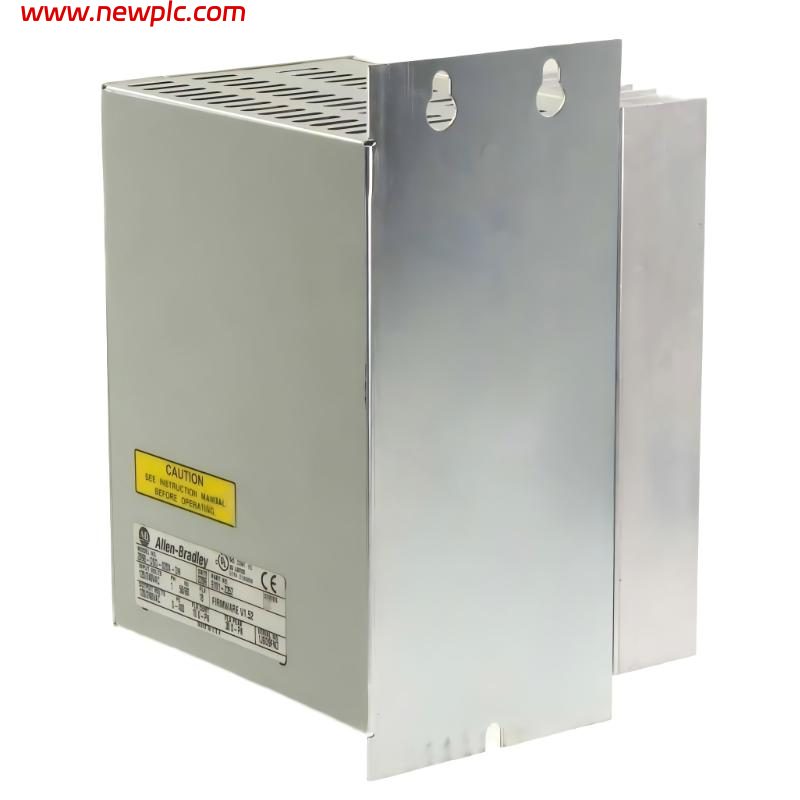

Allen Bradley 2098-DSD-020X Digital Servo Drive

FAQ

Q1: What is the Allen-Bradley 2098-DSD-020X used for?
The 2098-DSD-020X is an Ultra 3000 digital servo drive used for precision motor control in industrial automation and positioning applications.

Q2: What type of control interface does the 2098-DSD-020X support?
The drive supports analog command signals and pulse train control interfaces for motion control applications.

Q3: What input voltage is required for the 2098-DSD-020X?
It operates from a 100–240V AC single-phase power supply.

Q4: What is the output capability of the 2098-DSD-020X?
The drive delivers 10 A RMS continuous output current with up to 20 A RMS peak output current.

Q5: Does the 2098-DSD-020X include an internal shunt regulator?
Yes, the drive includes an integrated shunt regulator to manage regenerative energy during motor deceleration.

Q6: Is the 2098-DSD-020X still available from Rockwell Automation?
No, the Ultra 3000 series has been discontinued, and newer Kinetix servo platforms are recommended for system upgrades.

Q7: What are the dimensions and weight of the 2098-DSD-020X?
The approximate dimensions are 260 × 80 × 200 mm, and the drive weighs about 2.5–3.0 kg.

Q8: What applications commonly use the 2098-DSD-020X?
It is commonly used in packaging machines, labeling equipment, indexing systems, conveyors, assembly machinery, and automated positioning systems.
