Technical Specifications
| Parameter | Specification |
|---|---|

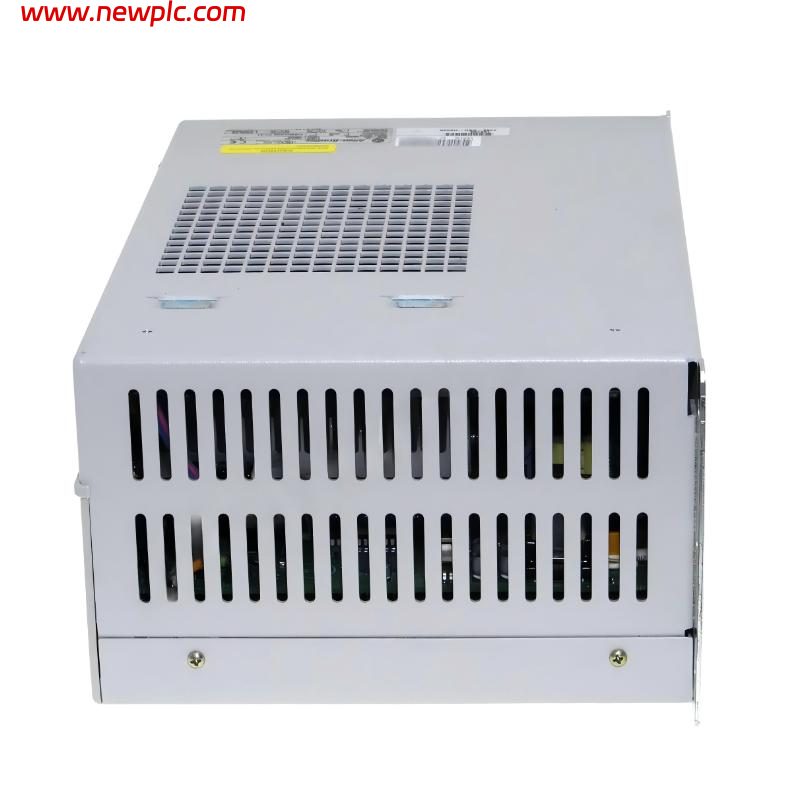

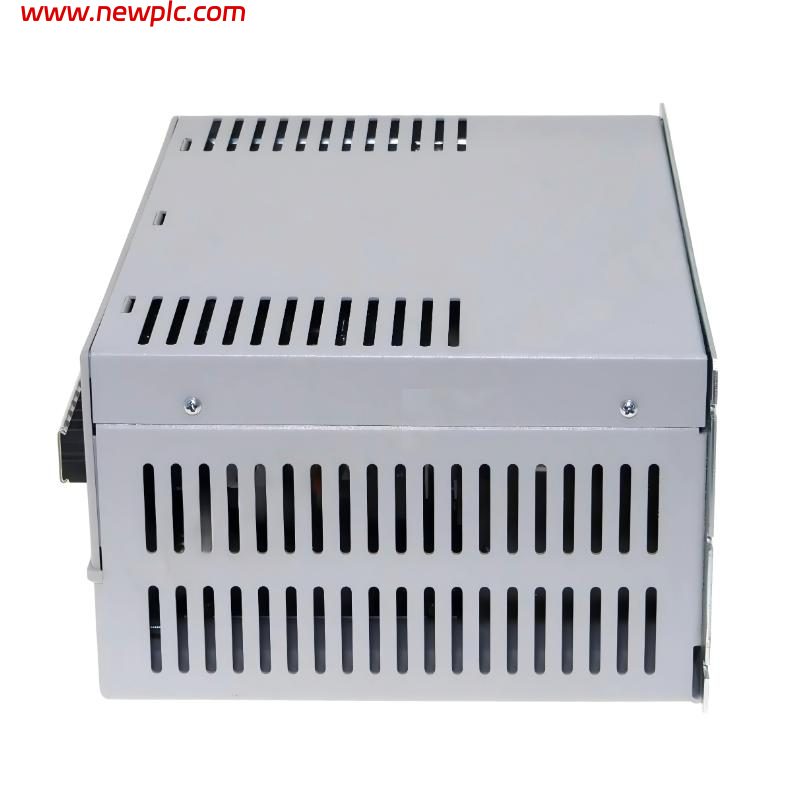

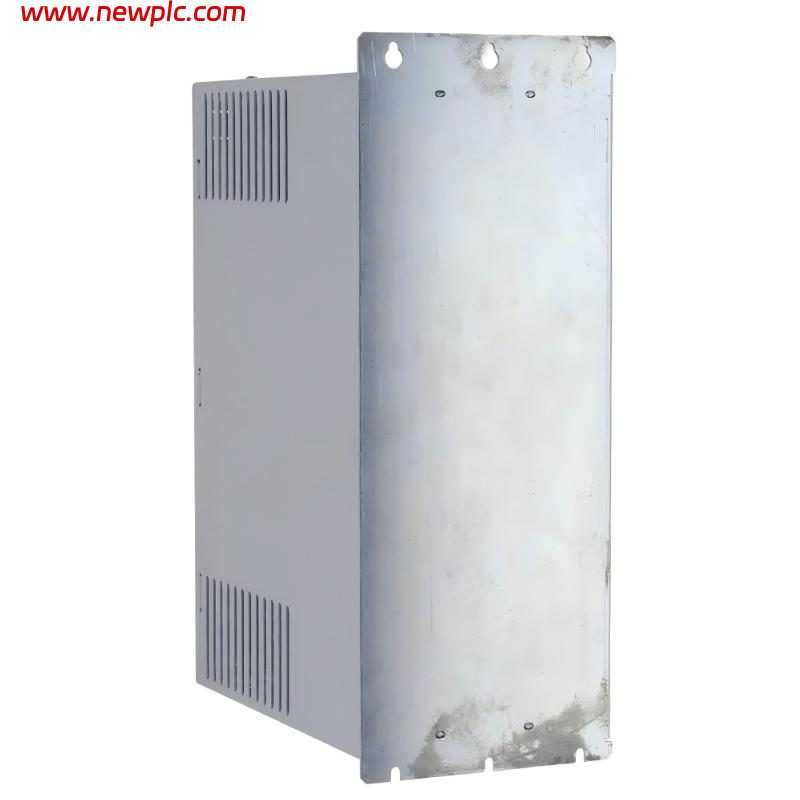

| Product Name | Allen-Bradley Ultra 3000 High-Voltage Servo Drive |
| Model Number | 2098-DSD-HV050 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Ultra 3000 |
| Product Type | Digital Servo Drive |
| Drive Type | High-Voltage Servo Drive |
| Input Voltage | 230–480V AC Three-Phase |
| Input Frequency | 47–63 Hz |
| Nominal Input Current | ~7 A RMS |
| Continuous Output Current | 11 A (0-peak) |
| Peak Output Current | 22 A (0-peak) |
| Continuous Output Power | 2.5 kW @ 230V AC / 5.0 kW @ 460V AC |
| Communication Interface | Serial / optional module-based (no native fieldbus on base unit) |
| Indexing Function | Not included (standard HV050 base version) |
| Feedback Support | Incremental / absolute encoder (system dependent) |
| Auxiliary Power Supply | Supported |
| Internal Shunt Resistance | ~120 Ω |
| Bus Capacitance | ~470 µF |
| Bus Overvoltage | ~410–810 VDC (depending on configuration) |
| Shunt Activation | ~800 VDC |
| Cooling Method | Forced air cooling |
| Mounting Type | Panel Mount |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5–95% non-condensing |
| Certifications | CE, UL, CSA |
| Dimensions | Approx. 362 × 244 × 91 mm |
| Weight | Approx. 8–9 kg |
| Lifecycle Status | Discontinued |
| Replacement Option | 2198-E4020-ERS |
| Application | High-power industrial servo motion control |
FAQ
FAQ
Q1: What is the Allen-Bradley 2098-DSD-HV050 used for?
The 2098-DSD-HV050 is an Ultra 3000 high-voltage digital servo drive used for controlling medium-to-high power servo motors in industrial automation systems such as packaging, material handling, and production machinery.
Q2: What input power does the 2098-DSD-HV050 require?
It operates from a 230–480V AC three-phase supply with a frequency range of 47–63 Hz.
Q3: What is the output power rating of this drive?
It provides approximately 2.5 kW at 230V and up to 5.0 kW at 460V depending on system configuration.
Q4: Does the 2098-DSD-HV050 support industrial networks like EtherNet/IP or SERCOS?
The base HV050 model does not include integrated fieldbus networking; communication is typically handled through optional modules or external controllers.
Q5: What is the peak output current of the drive?
The drive supports up to 22 A peak output current (0-peak rating).
Q6: Is the 2098-DSD-HV050 still manufactured?
No, the Ultra 3000 series including HV050 was discontinued by Rockwell Automation, with migration options available in newer Kinetix platforms.
Q7: What are the physical size and weight of the 2098-DSD-HV050?
It is approximately 362 × 244 × 91 mm in size and weighs around 8–9 kg depending on configuration.
Q8: What applications typically use this drive?
It is commonly used in servo-driven automation systems such as indexing tables, conveyors, packaging machines, and coordinated motion control systems.
