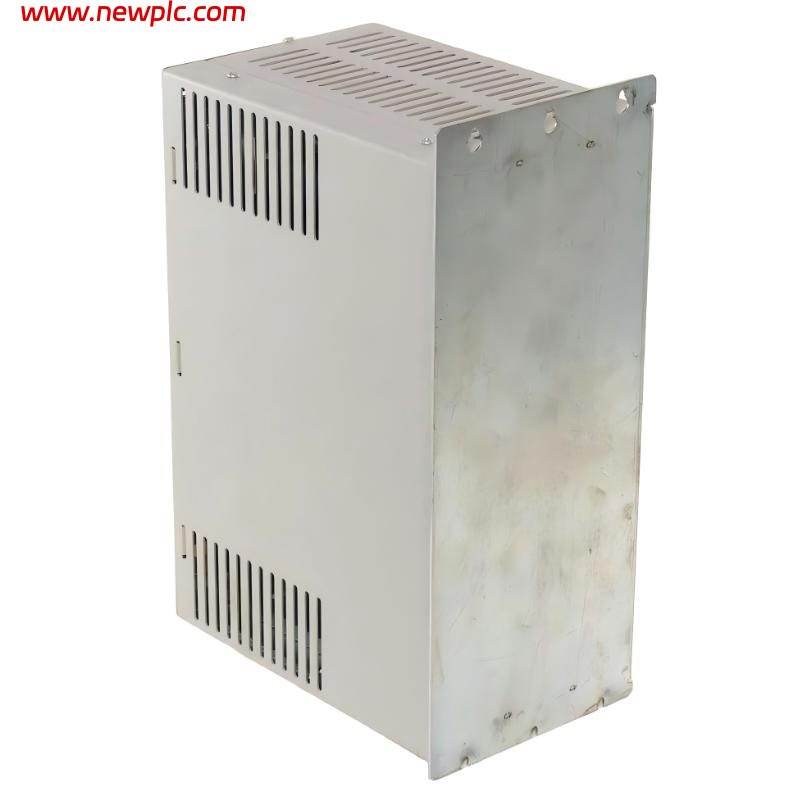

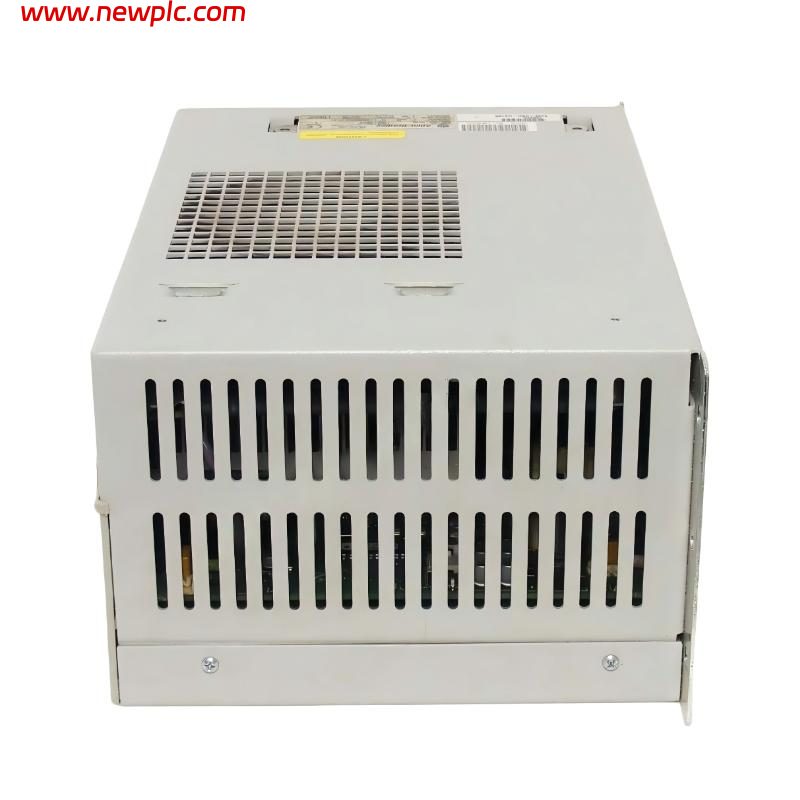

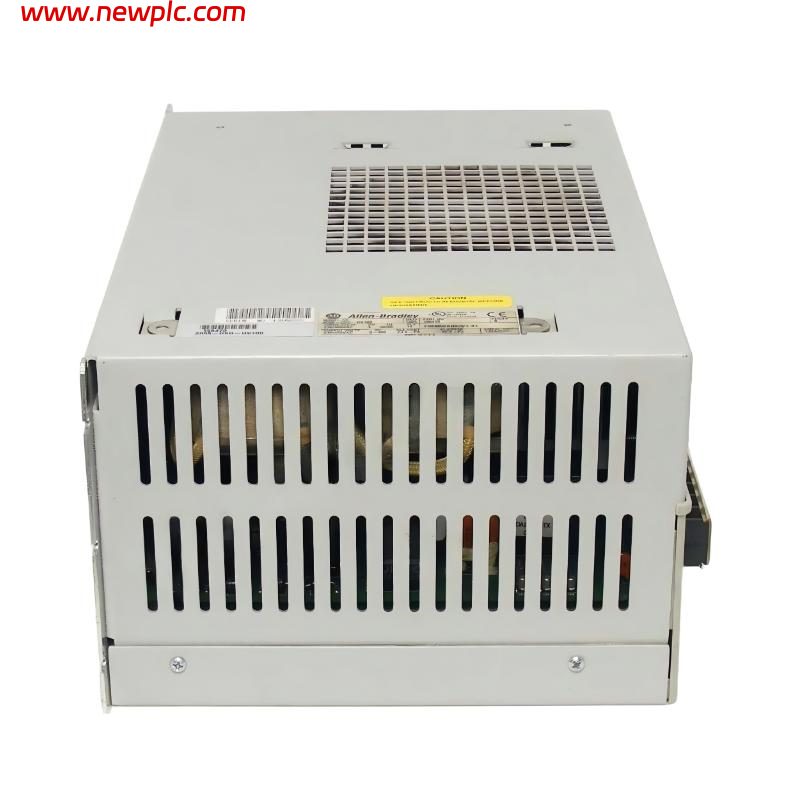

Allen Bradley 2098-DSD-HV100 High-Voltage Digital Servo Drive

FAQ

Q1: What is the Allen-Bradley 2098-DSD-HV100 used for?
The 2098-DSD-HV100 is an Ultra 3000 high-voltage servo drive used for high-power industrial motion control applications such as packaging lines, heavy material handling, robotics, and synchronized multi-axis systems.

Q2: What is the power rating of the 2098-DSD-HV100?
It provides approximately 5.0 kW continuous output power at 230V AC and up to 10 kW at 460V AC depending on system configuration.

Q3: What input voltage does the 2098-DSD-HV100 require?
The drive operates on a 230–480V AC three-phase supply with a frequency range of 47–63 Hz.

Q4: Does the 2098-DSD-HV100 support fieldbus communication?
Yes, depending on the variant, it supports SERCOS or DeviceNet communication for integration with industrial control systems.

Q5: What is the peak output current of this drive?
The drive supports up to 44 A peak output current (0-peak rating).

Q6: Is the 2098-DSD-HV100 still manufactured?
No, it belongs to the discontinued Ultra 3000 series. Modern systems such as Kinetix 5700 are typical migration replacements.

Q7: What are the physical size and weight of the 2098-DSD-HV100?
The approximate dimensions are 362 × 244 × 91 mm, and the weight is around 9–10 kg.

Q8: What types of motors are compatible with the 2098-DSD-HV100?
It is commonly used with Allen-Bradley MP-Series servo motors and other compatible high-power industrial servo motor systems.
