Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | AC Variable Frequency Drive |

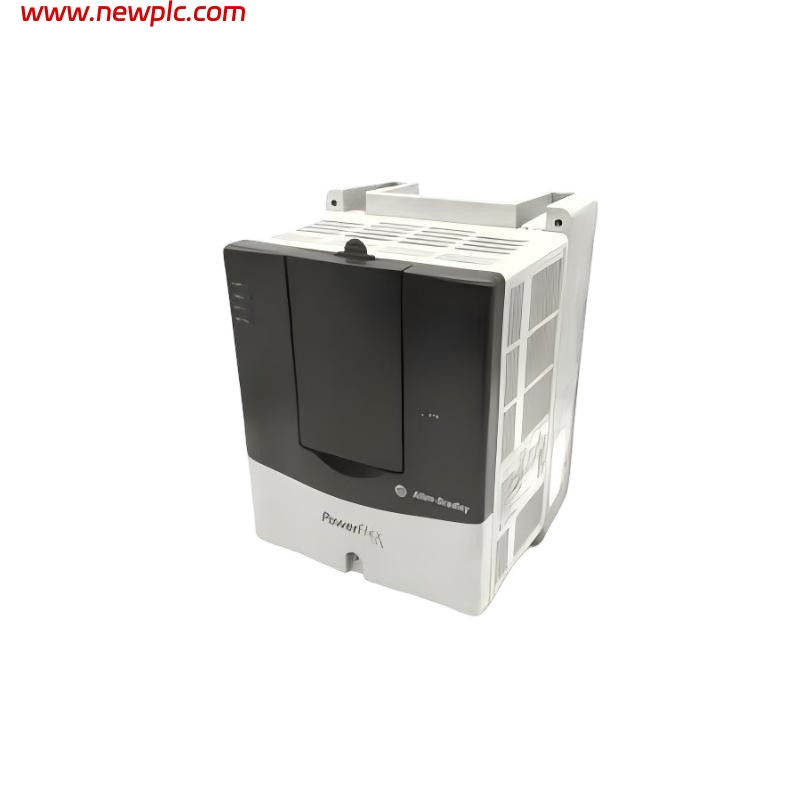

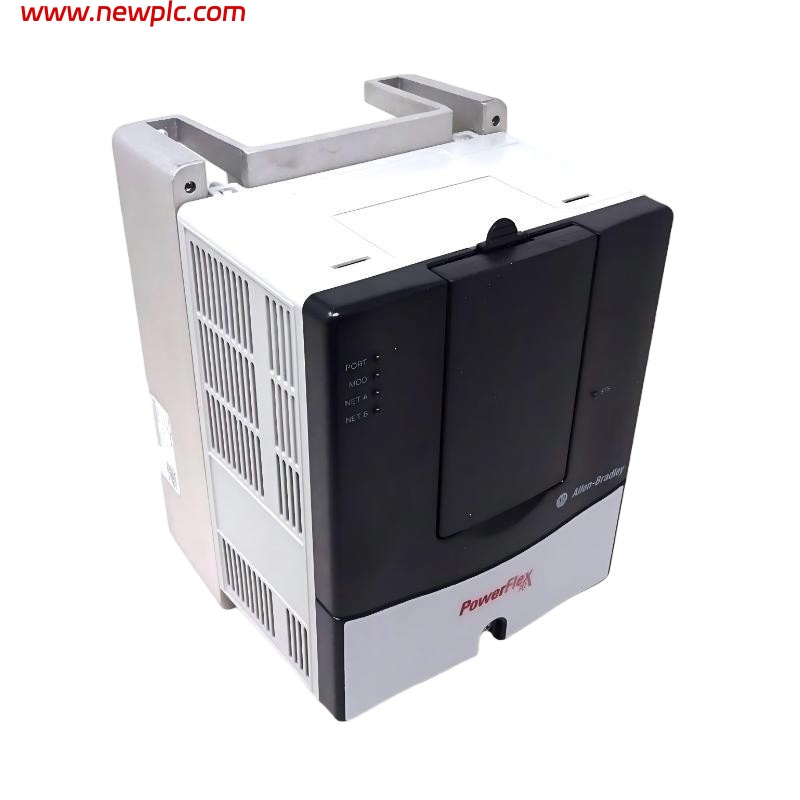

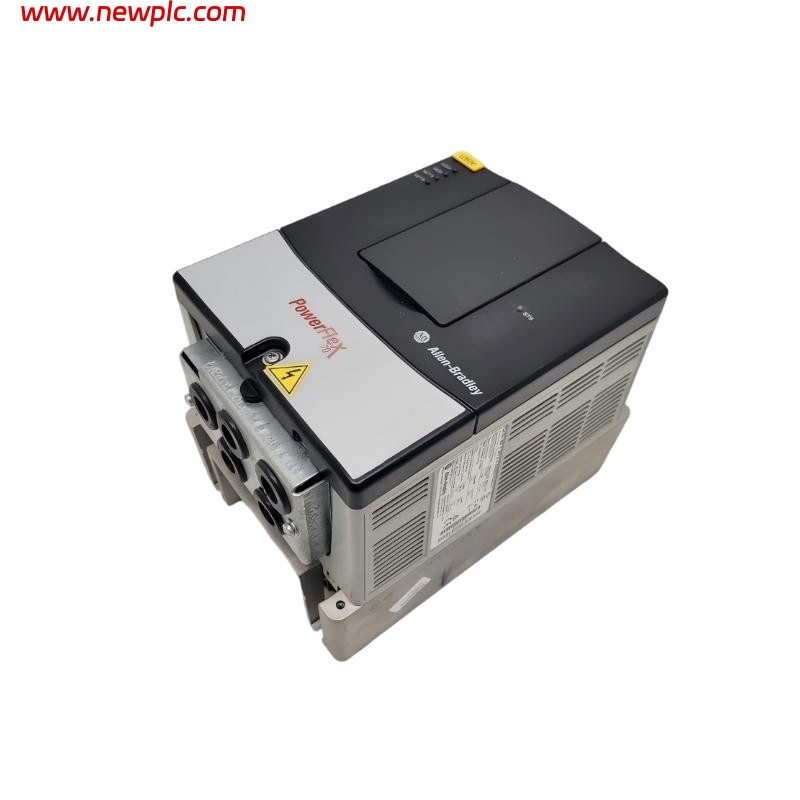

| Model | Allen-Bradley 20AC3P5A0AYNANC0 |
| Series | PowerFlex 70 |
| Function | Industrial AC motor speed and torque control |
| Input Voltage | 380–480 V AC, 3-phase |
| Input Frequency | 50/60 Hz |
| Output Current | 3.5 A |
| Output Power | 1.5 kW (Normal Duty) / 1.1 kW (Heavy Duty) |
| Frame Size | B Frame |
| Control Method | Sensorless Vector Control / V/Hz |
| Communication | EtherNet/IP, DeviceNet, Modbus, PROFIBUS (optional) |
| EMC Filter | Integrated EMC filter with common-mode choke |
| Brake Function | Brake IGBT installed (no internal brake resistor) |
| Control I/O | 6 digital inputs, 2 digital outputs, 2 analog inputs, 1 analog output |
| Protection Functions | Overvoltage, undervoltage, overcurrent, motor overload, ground fault |
| Efficiency | ~97.5% |
| Enclosure Rating | IP20 / NEMA Type 1 |
| Operating Temperature | 0 to 50 °C |
| Dimensions (H × W × D) | 225.7 × 122.4 × 179.8 mm |
| Weight | 2.71 kg |
FAQ
FAQ
Q1. What is the 20AC3P5A0AYNANC0 used for?
It is a PowerFlex 70 AC drive used to control the speed and torque of three-phase induction motors in industrial applications.
Q2. What is the power rating of this drive?
It is rated at 1.5 kW normal duty and 1.1 kW heavy duty.
Q3. What type of input supply does it require?
It operates on a 380–480 V AC three-phase power supply.
Q4. Does it include braking capability?
Yes, it includes a built-in brake IGBT, but no internal brake resistor is included.
Q5. What communication protocols are supported?
It supports EtherNet/IP and other industrial networks such as Modbus and PROFIBUS depending on configuration.
Q6. What is the enclosure type?
It is an IP20 / NEMA Type 1 panel-mount drive designed for cabinet installation.
Q7. What are its physical dimensions?
Its size is 225.7 × 122.4 × 179.8 mm.
Q8. What is its weight?
It weighs approximately 2.71 kg.
