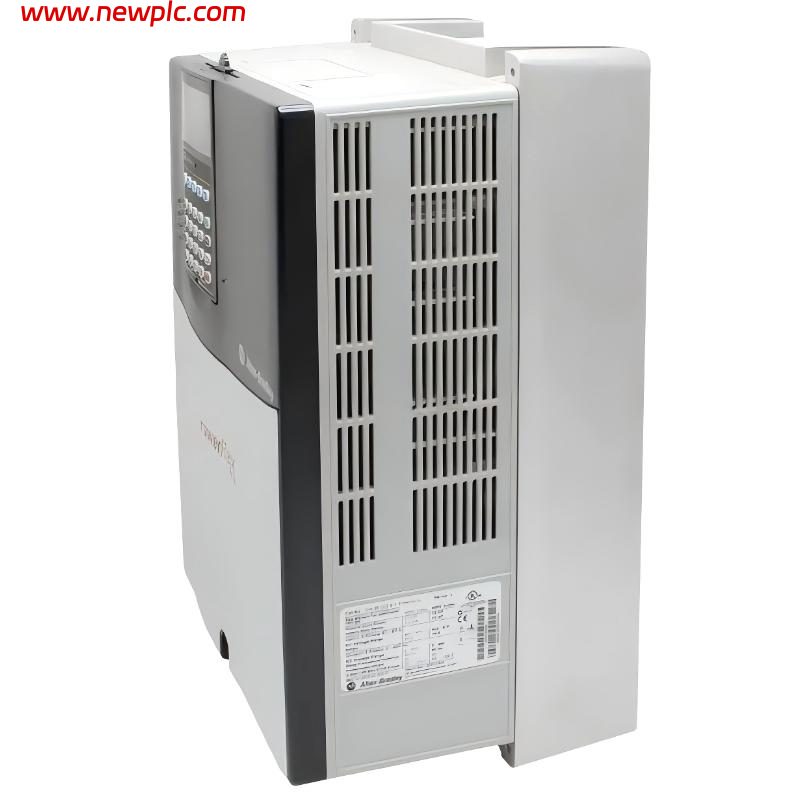

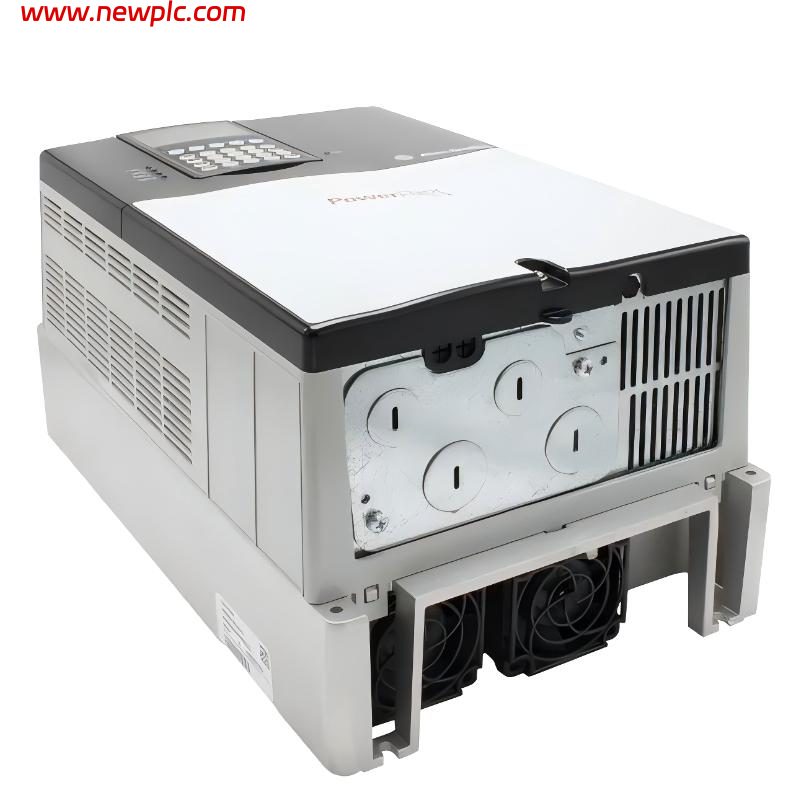

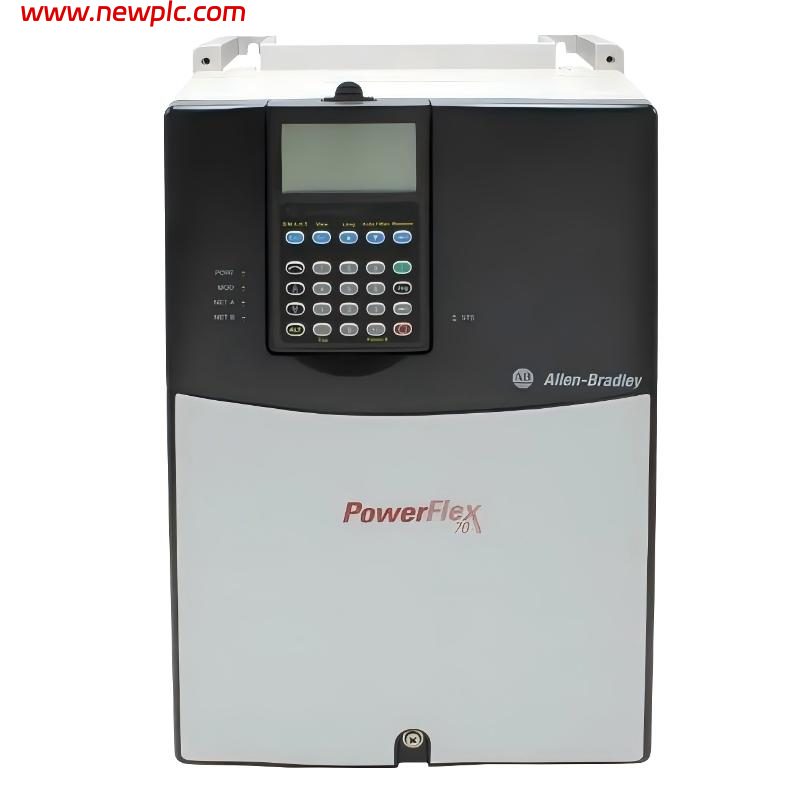

Allen Bradley 20BD022A0AYNACD0 PowerFlex 700 AC Drive

FAQ

Q1: What is the Allen-Bradley 20BD022A0AYNACD0?

A: The Allen-Bradley 20BD022A0AYNACD0 is a PowerFlex 700 variable frequency AC drive manufactured by Rockwell Automation. It is designed to regulate the speed and torque of three-phase AC motors in industrial equipment such as conveyors, pumps, fans, compressors, and automated machinery. The supplied specifications list a 480 VAC input and a rated output current of 22 A.

Q2: What are the normal-duty and heavy-duty power ratings?

A: The listed normal-duty rating is 15 HP (11 kW), while the heavy-duty rating is 10 HP (7.5 kW). Normal-duty operation generally suits applications with less demanding overload requirements, while heavy-duty operation is intended for applications that require greater starting or overload torque. Select the rating based on the motor nameplate, load characteristics, and the manufacturer’s derating requirements.

Q3: What motor control and output frequency capabilities does this drive offer?

A: The drive supports sensorless vector control and vector control, with a stated output frequency range of 0–400 Hz. These control methods allow the drive to adjust motor speed and torque for different industrial processes. Actual performance depends on motor compatibility, parameter configuration, load conditions, and the selected control mode.

Q4: Does the 20BD022A0AYNACD0 support dynamic braking?

A: The supplied specifications state that a brake IGBT is installed, but no internal braking resistor is included. Dynamic braking may therefore require a compatible external braking resistor to dissipate regenerated energy during deceleration. The resistor’s resistance, power rating, duty cycle, and wiring requirements must be verified against the manufacturer’s documentation.

Q5: What communication options are available?

A: The listed configuration includes a ControlNet Coaxial DPI communication module and uses a DPI interface. EtherNet/IP, DeviceNet, PROFIBUS, and Modbus are listed as possible communication options with optional adapters. These options should not be assumed to be built in simultaneously; confirm the installed module, supported protocol, and required adapter before connecting the drive to a PLC or industrial network.

Q6: What I/O and enclosure features does this drive have?

A: The drive is specified with 120V AC I/O, no HIM (blank plate), no feedback option, a second-environment EMC filter, and conformal coating. Its IP20 / NEMA Type 1 enclosure is intended for indoor installation and does not provide protection against water ingress. Since no HIM is included, local operator access may require a compatible separate interface or another supported control method.

Q7: What are the environmental and installation requirements?

A: The listed operating temperature is 0°C to +50°C, storage temperature is −40°C to +85°C, and relative humidity is 5–95% non-condensing. The drive uses forced-air cooling and is designed for panel mounting. Maintain adequate airflow and electrical clearances, and protect the drive from moisture, conductive contamination, and other environmental hazards. Confirm the installation conditions and overload limits in the applicable manual.

Q8: What are the dimensions and weight of the 20BD022A0AYNACD0?

A: The supplied approximate dimensions are 286 × 220 × 250 mm (H × W × D), and the approximate weight is 12.7 kg. These figures are useful for estimating panel space and planning handling. Verify the physical dimensions, mounting-hole pattern, required clearances, and terminal access using the manufacturer’s installation documentation before installing or replacing the drive.
