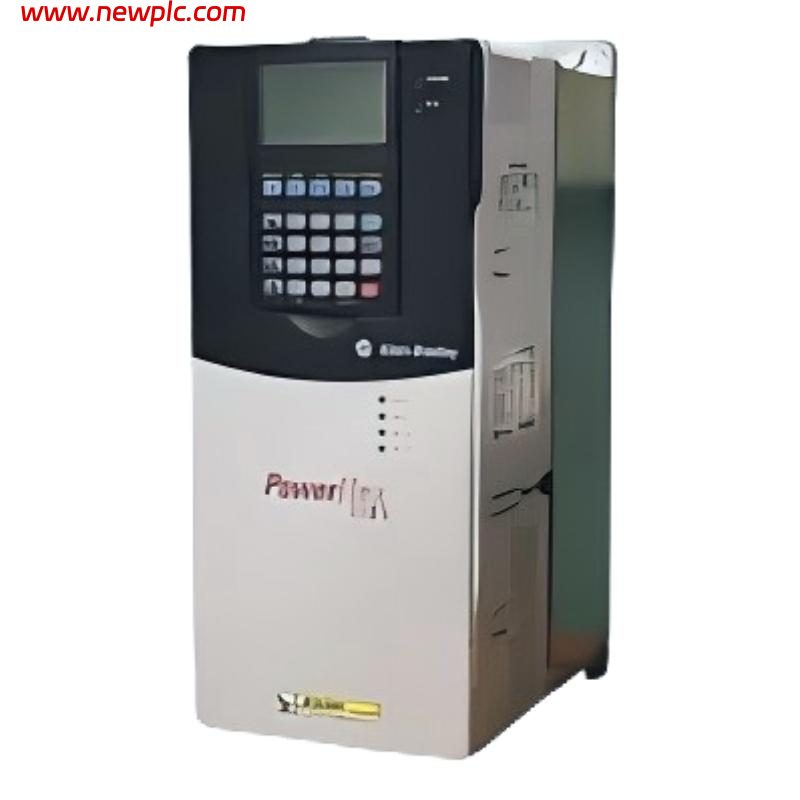

Allen Bradley 20BD022A3AYNAND1NNAD PowerFlex 700

FAQ

Q1: What is the Allen-Bradley 20BD022A3AYNAND1NNAD?

A: The Allen-Bradley 20BD022A3AYNAND1NNAD is a PowerFlex 700 AC drive designed to control the speed and torque of three-phase AC motors. It is rated for a 480 V AC input and a 22 A output current, with normal-duty and heavy-duty power ratings of 15 HP and 10 HP, respectively. It is suitable for industrial motor-control applications when correctly selected and configured for the connected motor and load.

Q2: What are the input and output voltage specifications?

A: The drive is specified for a three-phase, 480 V AC input at 60 Hz. Its output voltage range is 0–460 V AC, with a rated motor voltage of 460 V AC. The maximum output frequency is listed as 420 Hz. Actual output voltage and frequency depend on the input supply, motor requirements, parameter settings, and operating limits.

Q3: Which motor-control methods does this drive support?

A: The listed control methods are sensorless vector control, V/Hz control, and vector control. V/Hz control is commonly used for general-purpose motor speed regulation, while vector-control methods can provide improved torque and speed performance. The appropriate method depends on the motor, load characteristics, and required control precision. Proper motor data entry and commissioning are important for achieving the expected performance.

Q4: Does the 20BD022A3AYNAND1NNAD support encoder feedback?

A: Yes. The supplied specifications list standard incremental encoder feedback and a 12 V DC, 250 mA encoder power supply. Encoder feedback can help the drive regulate motor speed and operation more precisely than open-loop control in applications that require feedback. Confirm encoder compatibility, wiring, signal requirements, and the supported feedback configuration in the manufacturer’s documentation before installation.

Q5: Does this drive include dynamic braking?

A: The listed configuration includes a built-in brake IGBT but does not include an internal brake resistor. A compatible external braking resistor may be required to dissipate regenerated energy during deceleration. The resistor must be selected according to the drive’s requirements and the application’s braking frequency, stopping time, and load inertia. Do not assume that the brake IGBT alone provides a complete braking system.

Q6: What I/O and communication interfaces are available?

A: The drive is specified with six digital inputs, three digital outputs, two analog inputs, and two analog outputs. No communication module is included in the listed configuration. Network connectivity may therefore require a compatible optional communication adapter or module. Confirm the required protocol, adapter, and connection method before integrating the drive with a PLC, HMI, or industrial network.

Q7: What protection and environmental requirements should be considered?

A: The listed overload capacity is 110% of rated current for up to one minute and 150% for up to three seconds. The drive also has an integrated EMC filter and common-mode choke, with a stated efficiency of approximately 97.5%. Its specified operating temperature is 0–50 °C, relative humidity is 5–95% non-condensing, and installation altitude is up to 1000 m without derating. The IP20 / NEMA Type 1 enclosure is intended for suitable indoor installations and does not provide water protection. The stated 200 kA symmetrical short-circuit rating must be verified against the manufacturer’s specified installation conditions and required protective devices.

Q8: What are the dimensions and weight of this drive?

A: The supplied dimensions are 336 × 200 × 135 mm (H × W × D), and the listed weight is 7.03 kg. These measurements can help with cabinet layout, mounting, and replacement planning. Allow sufficient clearance for ventilation, wiring, terminal access, and maintenance. Before installation or replacement, verify the dimensions, mounting requirements, and configuration against the official documentation for the exact catalog number.
