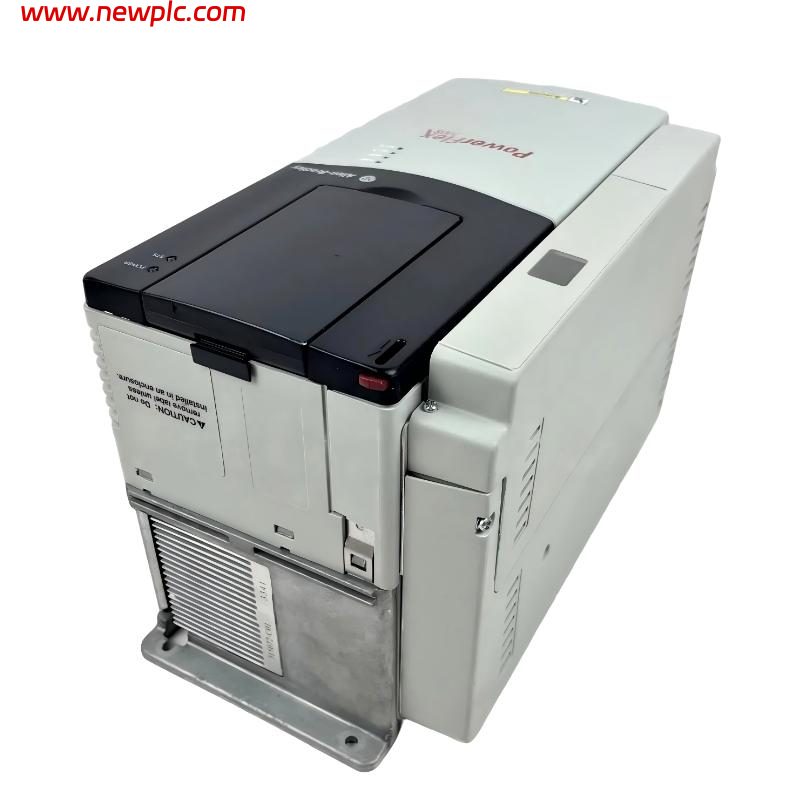

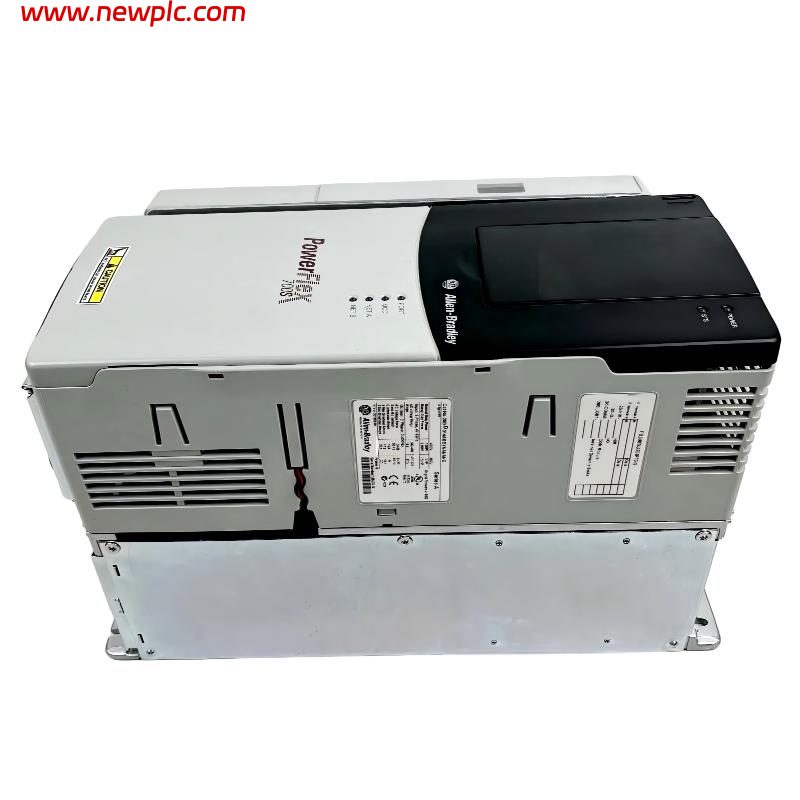

Allen Bradley 20BD034A0AYNANC0 PowerFlex 700 AC Drive

FAQ

Q1: What is the Allen-Bradley 20BD034A0AYNANC0?

A: The Allen-Bradley 20BD034A0AYNANC0 is a PowerFlex 700 variable frequency AC drive manufactured by Rockwell Automation. It is designed to regulate the speed and torque of three-phase AC motors in industrial applications. With a listed output current of 34 A, it is suitable for appropriately sized motors used in conveyors, pumps, fans, material-handling equipment, and automated production systems.

Q2: What are the normal-duty and heavy-duty power ratings?

A: The supplied specifications list a normal-duty rating of 25 HP (18.5 kW) and a heavy-duty rating of 20 HP (15 kW). Normal-duty operation generally suits applications with less demanding overload requirements, while heavy-duty operation is intended for loads requiring greater starting or overload torque. Confirm the drive rating against the motor nameplate, load requirements, and manufacturer’s documentation before selecting the drive.

Q3: What motor-control methods does this drive support?

A: The listed control methods are sensorless vector control and vector control, with 24V DC I/O. These methods allow the drive to adjust motor speed and torque according to application requirements. Sensorless vector control can improve low-speed torque performance compared with basic V/Hz control, while actual control accuracy depends on motor parameters, commissioning, load conditions, and the specific configuration.

Q4: Does the 20BD034A0AYNANC0 support dynamic braking?

A: The supplied specifications indicate that a brake IGBT is installed, but no internal braking resistor is included. A compatible external braking resistor may be required to dissipate regenerated energy during deceleration. The resistor must be selected according to the drive’s requirements and the application’s stopping time, load inertia, and braking frequency. Verify compatibility and wiring requirements before installation.

Q5: What communication and I/O options are available?

A: The listed configuration includes 24V DC I/O, a DPI communication interface, and no communication module. The supported communication options listed are EtherNet/IP, DeviceNet, ControlNet, PROFIBUS, and Modbus using optional adapters where applicable. These protocols are not all built into the drive by default, so confirm the required adapter and protocol compatibility before connecting the drive to a PLC or industrial network.

Q6: What enclosure and environmental protection does this drive provide?

A: The drive is listed with an IP20 / NEMA Type 1 enclosure and conformal coating. It is specified for operation at 0°C to +50°C, storage at −40°C to +85°C, and relative humidity of 5–95% non-condensing. The enclosure is intended for suitable indoor installations and does not provide water protection. Conformal coating can improve resistance to certain environmental contaminants, but it does not make the drive waterproof or suitable for every harsh environment.

Q7: What are the cooling and installation requirements?

A: The supplied specifications identify forced-air cooling and panel mounting. Install the drive with adequate airflow and the clearances specified by the manufacturer. Ensure that the cabinet can dissipate the heat generated during operation and that wiring, grounding, and protective devices meet applicable electrical requirements. The stated overload capacity is 110% for one minute and 150% for three seconds; confirm the conditions under which these ratings apply in the official documentation.

Q8: What are the dimensions and weight of the 20BD034A0AYNANC0?

A: The supplied approximate dimensions are 286 × 220 × 250 mm (H × W × D), and the approximate weight is 12.7 kg. These values can help with panel-layout planning, transport, and replacement work. Because dimensions can vary by frame and configuration, verify the physical measurements, mounting pattern, ventilation clearances, and terminal access requirements against the installation manual for the exact catalog number.
