Allen Bradley 20BD077A3ANNANC0 PowerFlex 700

FAQ

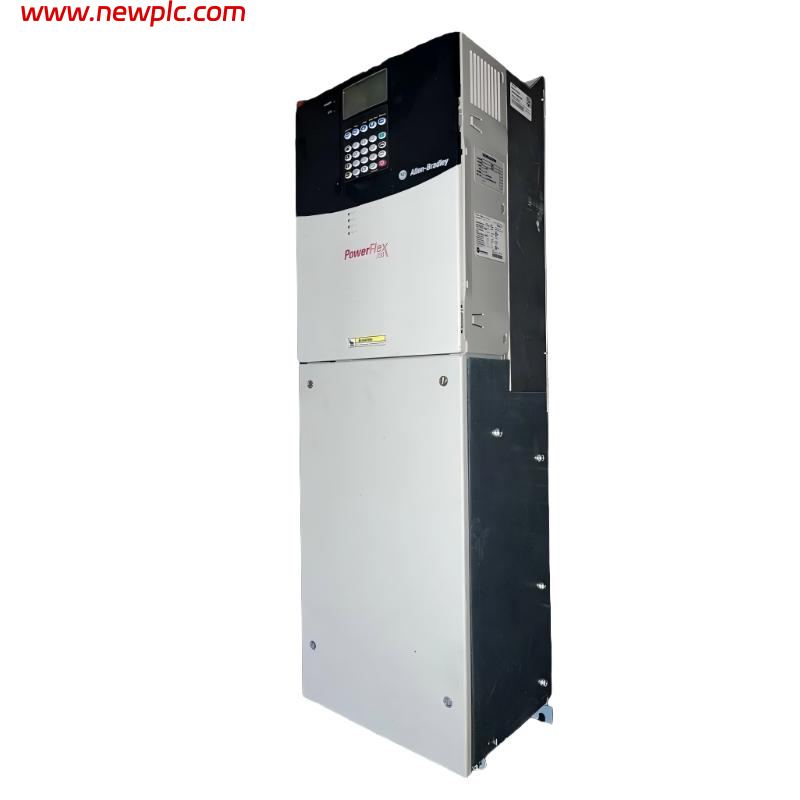

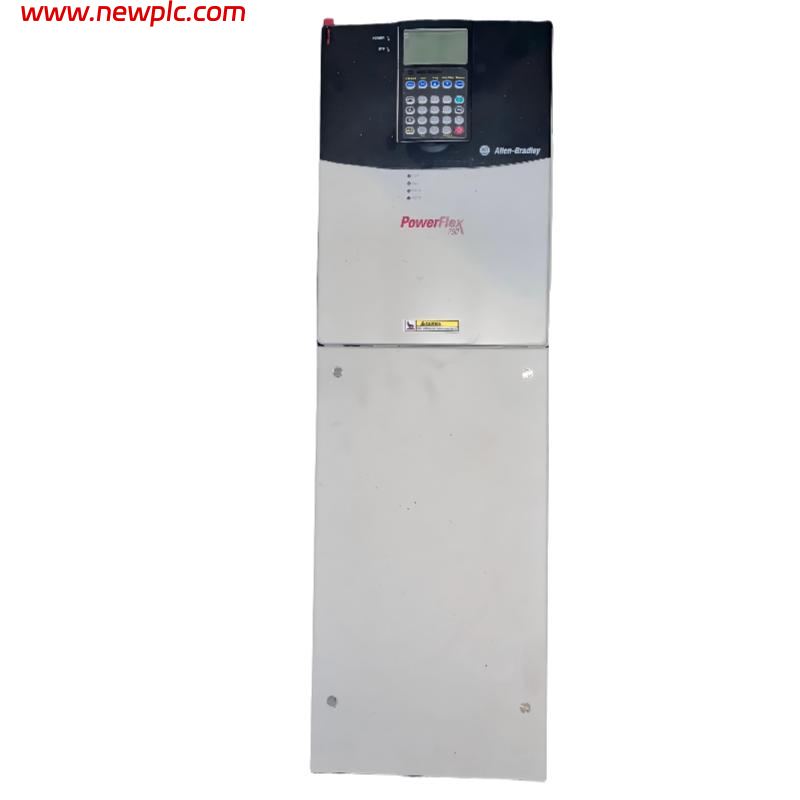

Q1: What is the Allen-Bradley 20BD077A3ANNANC0?

A: The 20BD077A3ANNANC0 is an Allen-Bradley PowerFlex 700 AC drive designed for variable-speed control of three-phase AC motors in industrial applications. It features a 480 V AC input, a 77 A rated output current, and Vector Control capability.

Q2: What are the power and current ratings of this drive?

A: The drive is rated at 60 HP (45 kW) for normal-duty applications and 50 HP for heavy-duty applications. Its continuous output current is 77 A, with specified overload currents of 98 A for one minute and 130 A for three seconds.

Q3: What type of motor control does this model support?

A: This model is specified for Vector Control, enabling variable-speed motor operation and torque control. Its listed maximum output frequency is 400 Hz. Actual performance depends on motor compatibility, parameter configuration, and application requirements.

Q4: What I/O and communication interfaces are available?

A: The supplied specifications list 24 V DC I/O and an RS-485 communication interface, with no internal communication module. The drive also includes an LCD Human Interface Module (HIM) with a full keypad for parameter setup and local operation. Confirm the exact RS-485 protocol and connector configuration before integrating it into a control network.

Q5: Does the 20BD077A3ANNANC0 support encoder feedback?

A: No. The supplied specifications identify this model as having no feedback. Verify that sensorless operation meets the application’s speed regulation and torque requirements before selecting the drive.

Q6: Does this drive include a braking transistor or internal brake resistor?

A: No. Neither a brake IGBT nor an internal brake resistor is listed as included. If the application requires rapid deceleration or dynamic braking, compatible external braking equipment may be required, subject to the manufacturer’s recommendations.

Q7: What protection and operating features are provided?

A: The drive includes electronic motor overload protection and programmable current limiting. Acceleration and deceleration times can be programmed independently. Its specified enclosure rating is IP20 / NEMA Type 1, and its EMC filtering is listed as a CE filter with a common-mode choke.

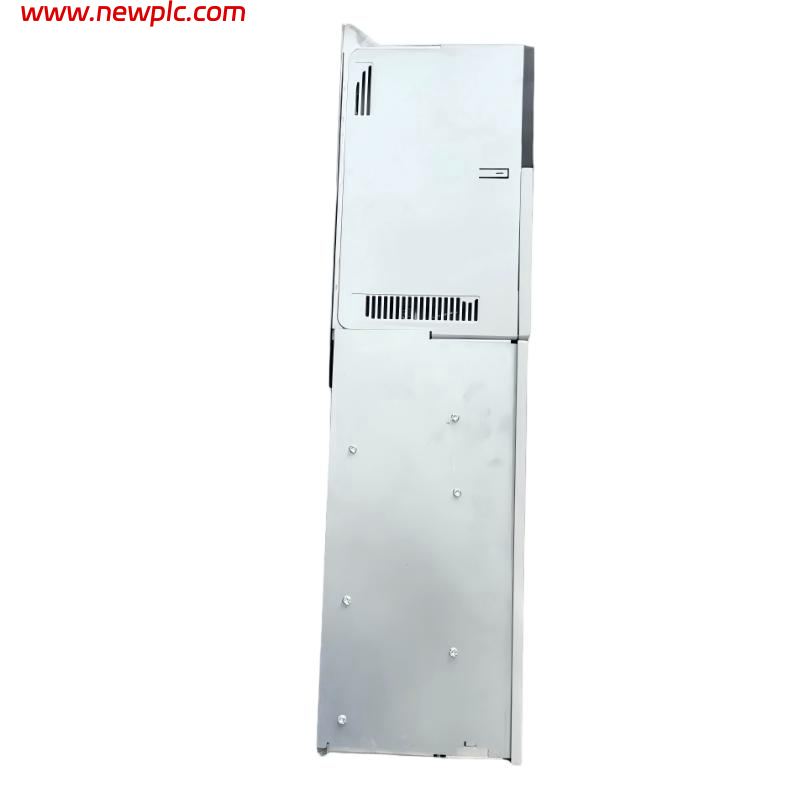

Q8: What are the mounting dimensions and installation considerations?

A: The drive is designed for surface mounting and has dimensions of 758.8 × 201.7 × 220 mm (H × W × D), with a listed weight of 24.49 kg. Before installation or replacement, verify the available cabinet space, mounting clearances, input supply, motor ratings, I/O voltage, communication requirements, and braking needs against the documentation for the exact catalog number.
