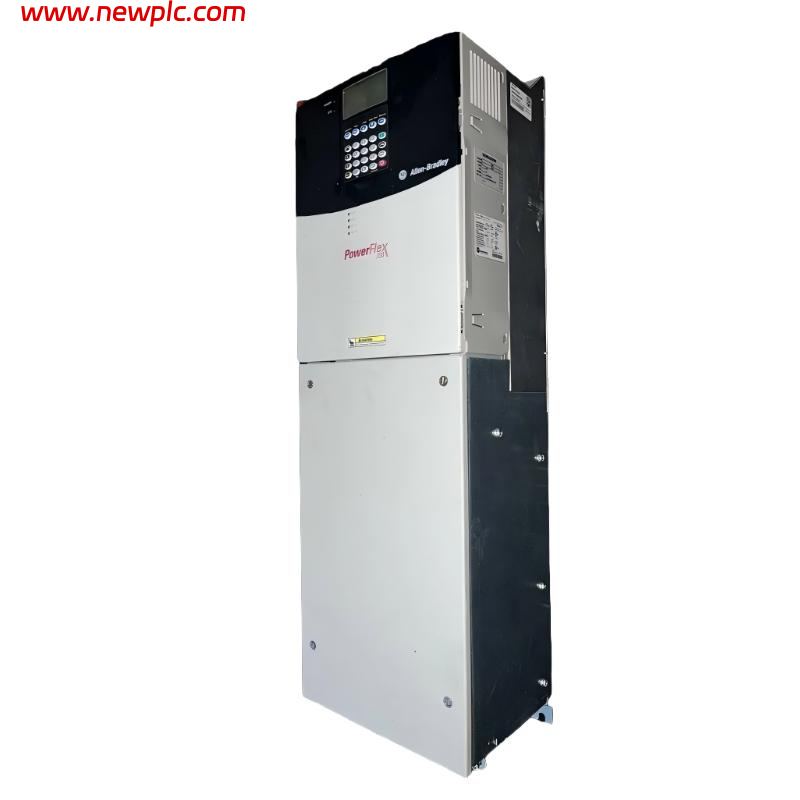

Allen Bradley 20BD077A3ANNAND0 PowerFlex 700

FAQ

Q1: What is the Allen-Bradley 20BD077A3ANNAND0?

A: The 20BD077A3ANNAND0 is identified as a PowerFlex 700 AC drive model. The PowerFlex 700 series is designed for industrial motor speed control. The related 77 A Frame 4 models support 480 V AC three-phase input, with ratings of 60 HP for normal-duty applications and 50 HP for heavy-duty applications. Confirm the complete catalog number before ordering or replacing the unit.

Q2: What are the input and output electrical ratings?

A: The related 77 A models use a 480 V AC three-phase input and provide a three-phase output of up to 460 V AC for compatible motors. The listed continuous output current is 77 A, with 60 HP normal-duty and 50 HP heavy-duty ratings.

Q3: Which motor control methods are supported?

A: PowerFlex 700 drives support V/Hz, Sensorless Vector Control, and Vector Control, depending on the installed control configuration. The comparable standard-control models list a maximum output frequency of 400 Hz, while vector-control configurations may support up to 420 Hz. The exact limit should be checked against the catalog number and firmware/control configuration.

Q4: Does this model include a DeviceNet communication module?

A: A closely related catalog number, 20BD077A3ANNADN0, is listed with a DeviceNet DPI module. However, the exact model provided here is 20BD077A3ANNAND0, which does not match that reference exactly. Confirm the nameplate and module configuration before assuming DeviceNet is included.

Q5: What operator interface and I/O features are available?

A: Comparable configurations include an LCD HIM with a full numeric keypad and programming keys, along with six digital inputs, three digital outputs, two analog inputs, and two analog outputs. I/O voltage and the presence of a HIM can vary by catalog configuration, so these features should be verified against the product label and official technical documentation.

Q6: Does the drive include encoder feedback or braking hardware?

A: The referenced configuration is specified without encoder feedback, without a brake IGBT, and without an internal brake resistor. If the application requires encoder-based feedback or dynamic braking, confirm the available options and compatible external equipment before installation.

Q7: What protection and operating characteristics should be considered?

A: Related PowerFlex 700 configurations specify Class 10 motor overload protection, programmable current limiting, independently programmable acceleration and deceleration times, and multiple stop modes. The comparable technical data also lists a 648 V DC nominal bus voltage at 480 V AC input, a 305 V DC bus undervoltage threshold, and an 810 V DC overvoltage threshold. Verify these values against the documentation for the exact model.

Q8: How can the correct replacement drive be selected?

A: Check the complete catalog number on the nameplate, input voltage, current and horsepower ratings, control type, I/O voltage, communication module, HIM, feedback options, braking hardware, enclosure, and physical dimensions. The final characters in PowerFlex catalog numbers can identify important configuration differences. For a reliable replacement, compare the original drive label with the official Rockwell Automation product page and installation manual before purchasing.
