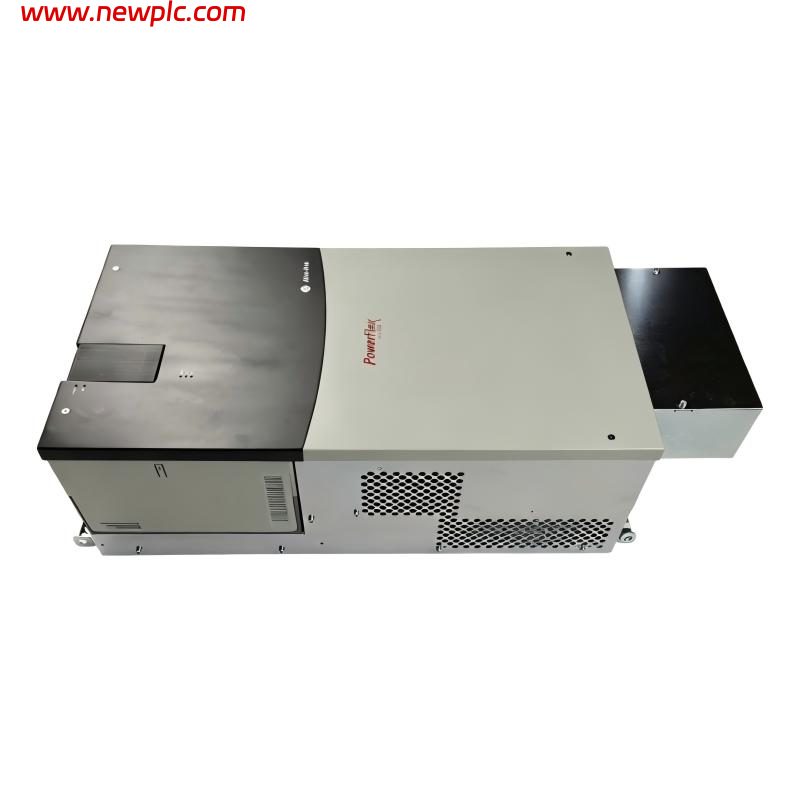

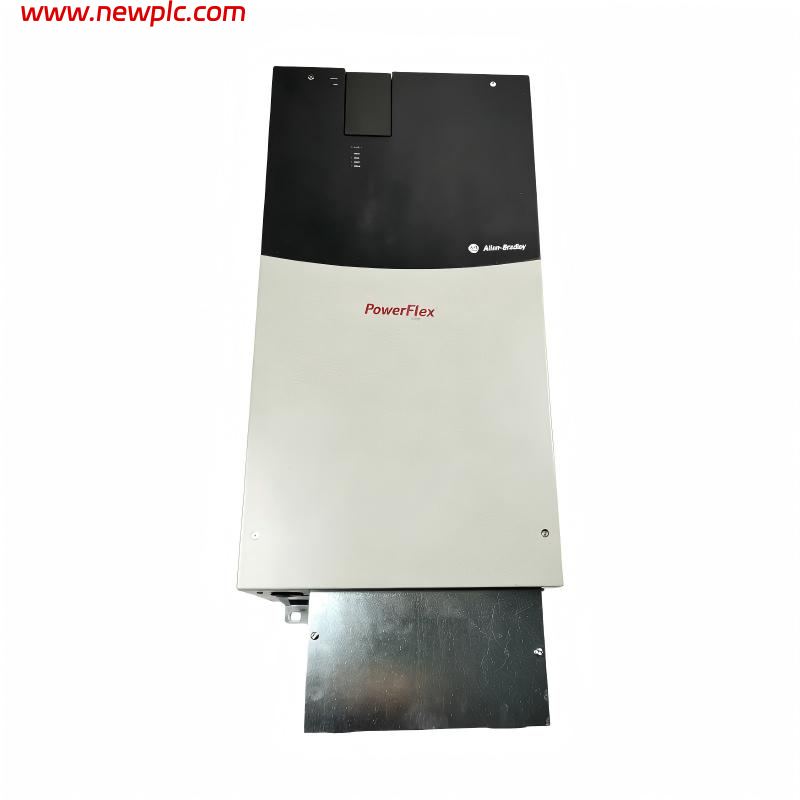

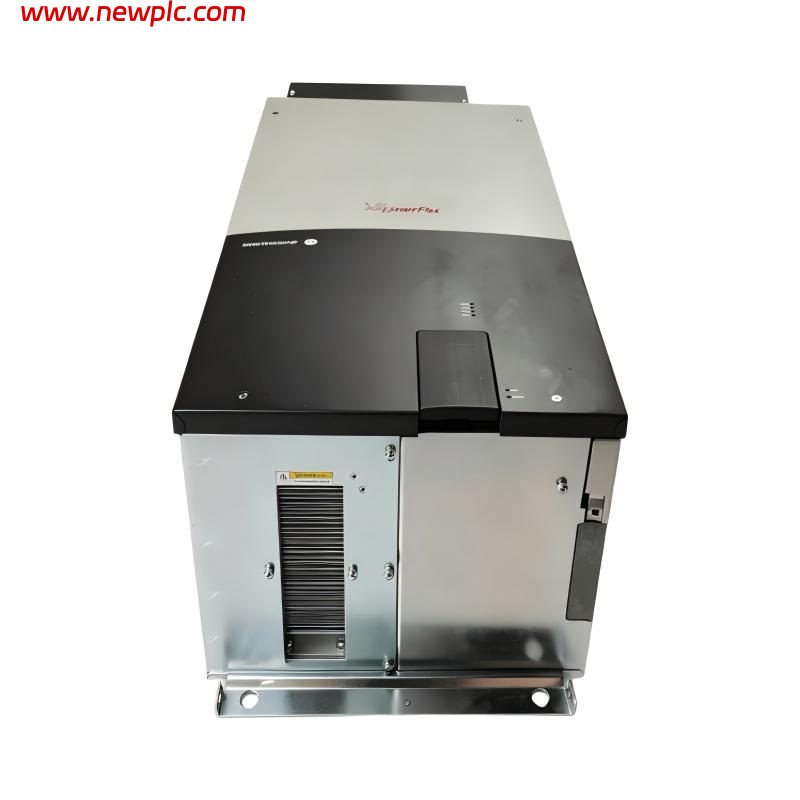

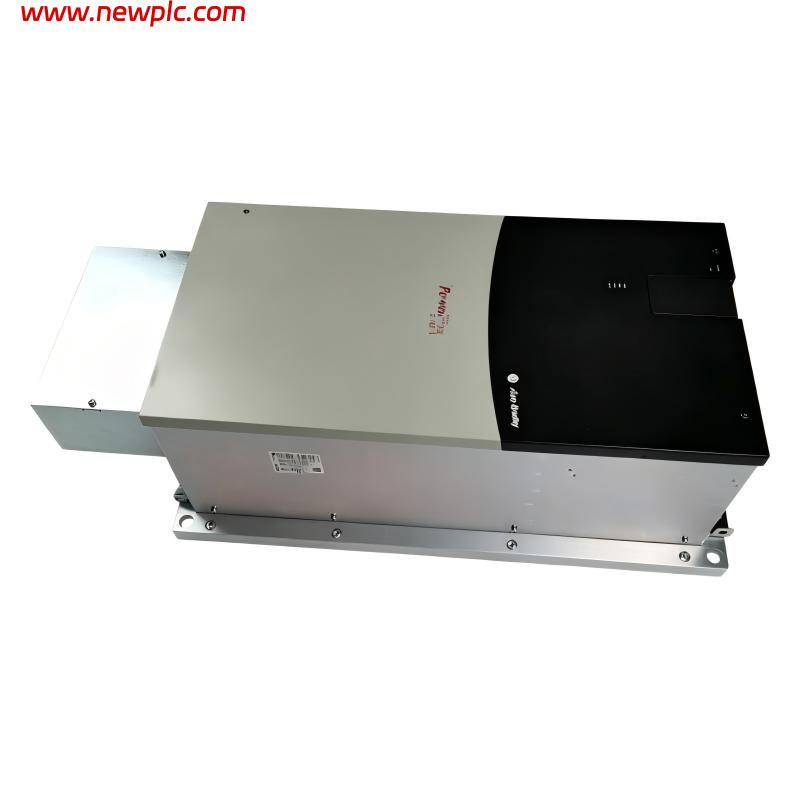

Allen Bradley 20BD096A0ANNANC0 PowerFlex 700

FAQ

Q1: What is the Allen-Bradley 20BD096A0ANNANC0?

A: The 20BD096A0ANNANC0 is an Allen-Bradley PowerFlex 700 AC drive designed for industrial motor speed and torque control. It has a 480 V AC three-phase input, a rated output current of 96 A, and supports 75 HP normal-duty and 60 HP heavy-duty applications.

Q2: What are the voltage and current ratings of this drive?

A: The drive is rated for a 480 V AC three-phase supply and is designed for compatible 460 V motors. Its continuous output current is 96 A, with specified heavy-duty overload currents of 106 A for one minute and 144 A for three seconds.

Q3: What motor control and speed regulation capabilities does it offer?

A: This model uses Vector Control and supports a maximum output frequency of 420 Hz. The supplied specifications state speed regulation of 0.1% of base speed across a 120:1 speed range without encoder feedback, with torque regulation of ±5% without feedback. Actual performance depends on motor characteristics, drive tuning, and operating conditions.

Q4: What I/O and communication features are included?

A: The drive is specified with 120 V AC I/O, two analog inputs, two analog outputs, six digital inputs, and three digital outputs. No internal communication module is included. Confirm the required network interface and any compatible optional adapter before integrating the drive into an automation system.

Q5: Does the 20BD096A0ANNANC0 include an operator interface or encoder feedback?

A: No. This configuration is specified without a Human Interface Module (HIM) and uses a blank plate. It also has no encoder feedback. Parameter configuration and monitoring may therefore require compatible external tools or an optional interface, depending on the installed configuration.

Q6: Does this drive include a braking transistor or internal brake resistor?

A: No. Neither a brake IGBT nor an internal brake resistor is included in the supplied specifications. If the application requires dynamic braking or rapid deceleration, check the manufacturer’s recommendations for compatible external braking equipment and confirm the required stopping performance.

Q7: What protection and environmental features does this drive provide?

A: The drive includes Class 10 motor overload protection, conformal coating, and a second-environment EMC filter with a common-mode choke. Its enclosure is rated IP20 / NEMA/UL Type 1. Verify installation conditions, required cabinet protection, grounding, and EMC requirements against the manufacturer’s installation manual.

Q8: What are the dimensions and weight, and what should be checked before installation?

A: The specified dimensions are 689.6 × 308.9 × 275.4 mm (H × W × D), and the weight is 37.19 kg. Before installation or replacement, verify the exact catalog number, supply voltage, motor ratings, 120 V AC I/O compatibility, absence of feedback and braking hardware, communication requirements, mounting clearances, and cabinet ventilation. Confirm the physical dimensions against the official dimensional drawing for the exact drive configuration.
