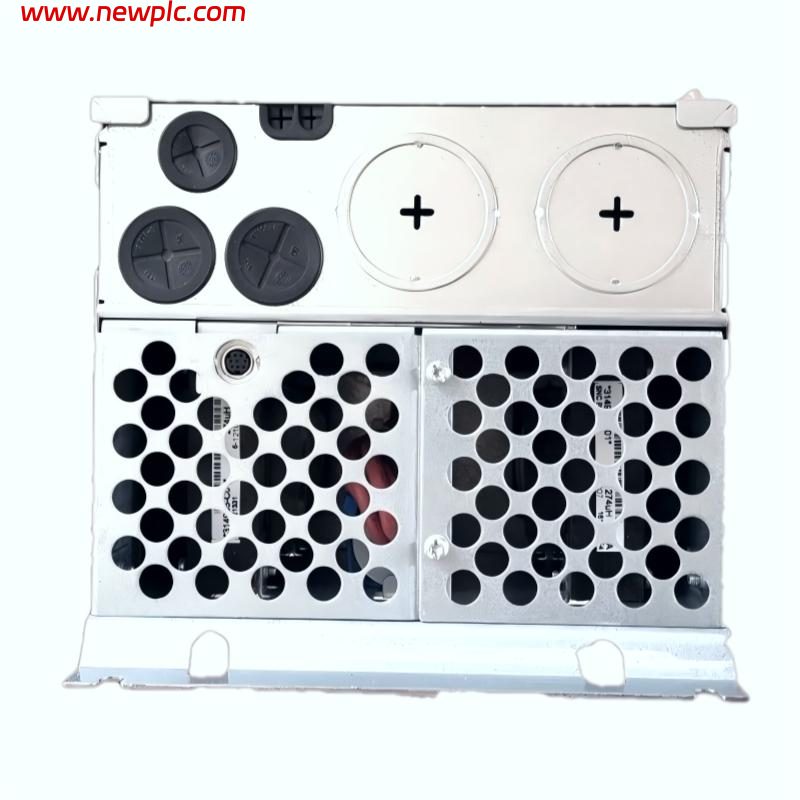

Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Brand |
Allen-Bradley / Rockwell Automation |
|
Model / Catalog Number |
|
|
Product Type |
PowerFlex 700 AC Drive |
|
Drive Series |
PowerFlex 700 |
|
Input Voltage |
480 VAC |
|
Input Phase |
3-phase |
|
Input Frequency |
60 Hz |
|
Input Current |
90.1 A |
|
Input Power |
74.9 kVA |
|
Continuous Output Current |
96 A |
|
Normal-Duty Power Rating |
75 HP (55.9 kW) |
|
Heavy-Duty Power Rating |
60 HP (44.7 kW) |
|
Heavy-Duty Output Current |
106 A for 1 minute; 144 A for 3 seconds |
|
Frame Size |
Frame 5 |
|
Enclosure Rating |
IP20 / NEMA/UL Type 1 |
|
Conformal Coating |
Yes |
|
Control Method |
Vector Control |
|
I/O Voltage |
120 VAC |
|
Human Interface Module (HIM) |
Not included; blank plate installed |
|
Feedback Option |
None |
|
Communication Module |
None |
|
Brake IGBT |
Not installed |
|
Internal Brake Resistor |
None |
|
EMC Filter |
Second-environment filter with common-mode choke |
|
Nominal Motor Voltage |
460 VAC |
|
Drive Voltage Rating |
380–480 VAC |
|
Maximum Output Frequency |
420 Hz |
|
Carrier Frequency |
2, 4, 8, or 10 kHz; rating based on 4 kHz |
|
Analog Inputs |
2 |
|
Analog Outputs |
2 |
|
Digital Inputs |
6 |
|
Digital Outputs |
3 |
|
Efficiency |
Approximately 97.5% at rated current and nominal line voltage |
|
Operating Temperature |
0–50°C under applicable IP20 / Type 1 conditions |
|
Relative Humidity |
5–95%, non-condensing |
|
Maximum Altitude Without Derating |
1,000 m |
|
Approximate Dimensions (H × W × D) |
644.5 × 308.9 × 275.4 mm (25.37 × 12.16 × 10.84 in) |
|
Approximate Net Weight |
37.19 kg (82.0 lb) |
|
Approximate Shipping Weight |
49.50 kg (109.0 lb) |
|
Mounting Hole Spacing (W × H) |
225.0 × 625.0 mm |
|
Lifecycle Status |
Discontinued |
|
Discontinuation Date |
November 30, 2023 |
FAQ
FAQ
Q1: What is the power rating of the 20BD096A0ANNAND0?
A: It is rated at 75 HP (55.9 kW) for normal duty and 60 HP (44.7 kW) for heavy duty.
Q2: What input power supply does this drive require?
A: It requires a nominal 480 VAC, three-phase supply at 60 Hz.
Q3: What is the rated output current?
A: The continuous output current is 96 A, with heavy-duty overload ratings of 106 A for 1 minute and 144 A for 3 seconds.
Q4: What are the dimensions and weight?
A: The approximate dimensions are 644.5 × 308.9 × 275.4 mm (H × W × D). The net drive weight is approximately 37.19 kg, and the estimated shipping weight is 49.50 kg.
Q5: Does this model include a keypad or communication module?
A: No. It is supplied with a blank plate instead of a HIM keypad and does not include an internal communication module.
Q6: Does it support dynamic braking?
A: This configuration does not include a brake IGBT or an internal brake resistor. Confirm the braking requirements before selecting external braking equipment.
Q7: What enclosure and operating environment does it support?
A: It has an IP20 / NEMA/UL Type 1 enclosure with conformal coating. The applicable ambient operating range is 0–50°C. It should be installed in a suitable protected electrical environment.
Q8: Is the 20BD096A0ANNAND0 still available from the manufacturer?
A: Rockwell Automation lists the model as discontinued effective November 30, 2023. Remaining inventory, refurbished units, and repair services may be available through independent suppliers. Verify the full catalog number and condition before purchasing.
