Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Brand |
Allen-Bradley / Rockwell Automation |
|
Product Type |
PowerFlex 700 AC Drive |
|
Catalog Number |
|
|
Input Voltage |
480 VAC |
|
Input Phase |
3-phase |
|
Input Frequency |
60 Hz |
|
Input Current |
90.1 A |
|
Input Power |
74.9 kVA |
|
Continuous Output Current |
96 A |
|
Normal-Duty Power Rating |
75 HP (55.9 kW) |
|
Heavy-Duty Power Rating |
60 HP (44.7 kW) |
|
Heavy-Duty Overload Current |
116 A for 1 minute; 154 A for 3 seconds |
|
Frame Size |
Frame 5 |
|
Enclosure Rating |
IP20 / NEMA/UL Type 1 |
|
Conformal Coating |
Yes |
|
Control Method |
Vector Control |
|
I/O Voltage |
24 V DC |
|
Human Interface Module (HIM) |
LCD display with full numeric keypad; 20-HIM-A3 |
|
Feedback Option |
No feedback |
|
Internal Communication Module |
None |
|
Brake IGBT |
Not installed |
|
Internal Brake Resistor |
None |
|
EMC Filter |
Second-environment filter with common-mode choke |
|
Nominal Motor Voltage |
460 VAC |
|
Maximum Output Frequency |
420 Hz |
|
Carrier Frequency |
2, 4, 8, and 10 kHz; rating based on 4 kHz |
|
Analog Inputs |
2 |
|
Analog Outputs |
2 |
|
Digital Inputs |
6 |
|
Digital Outputs |
3 |
|
Efficiency |
Approximately 97.5% |
|
Speed Regulation |
0.1% of base speed across a 120:1 speed range in Vector Control mode without feedback |
|
Torque Regulation |
±5% without feedback |
|
Short-Circuit Rating |
Up to 200 kA symmetrical, subject to specified protective-device requirements |
|
Operating Temperature |
0–50°C under applicable IP20 / Type 1 conditions |
|
Relative Humidity |
5–95%, non-condensing |
|
Approximate Dimensions (H × W × D) |
644.5 × 308.9 × 275.4 mm (25.37 × 12.16 × 10.84 in) |
|
Approximate Net Weight |
37.19 kg (82.0 lb) |
|
Approximate Shipping Weight |
49.50 kg (109.0 lb) |
|
Mounting Hole Spacing (W × H) |
225.0 × 625.0 mm |
|
Lifecycle Status |
Discontinued |
|
Discontinuation Date |
June 1, 2023 |
FAQ
FAQ

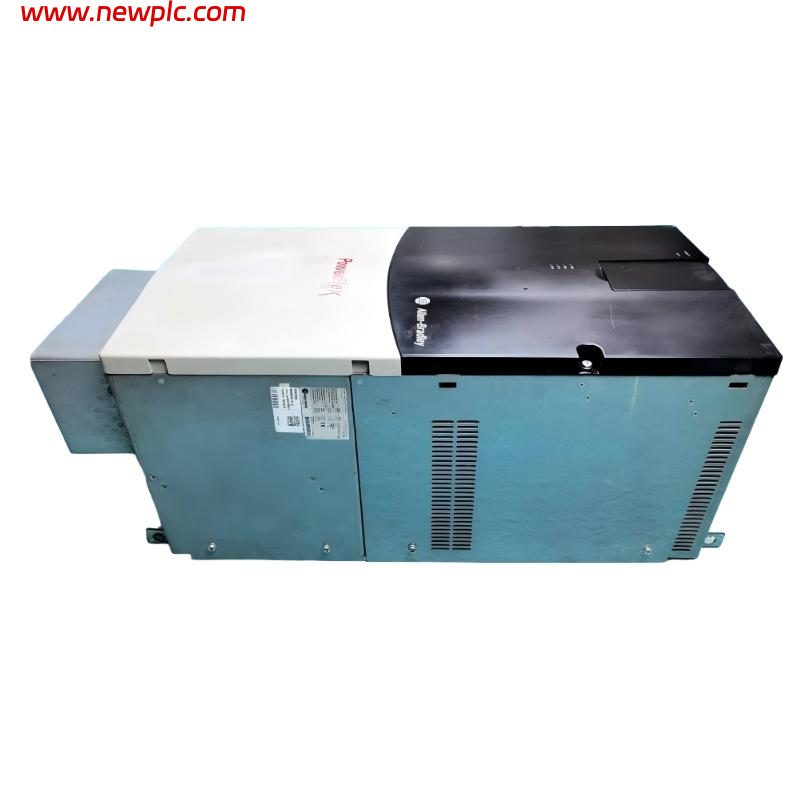

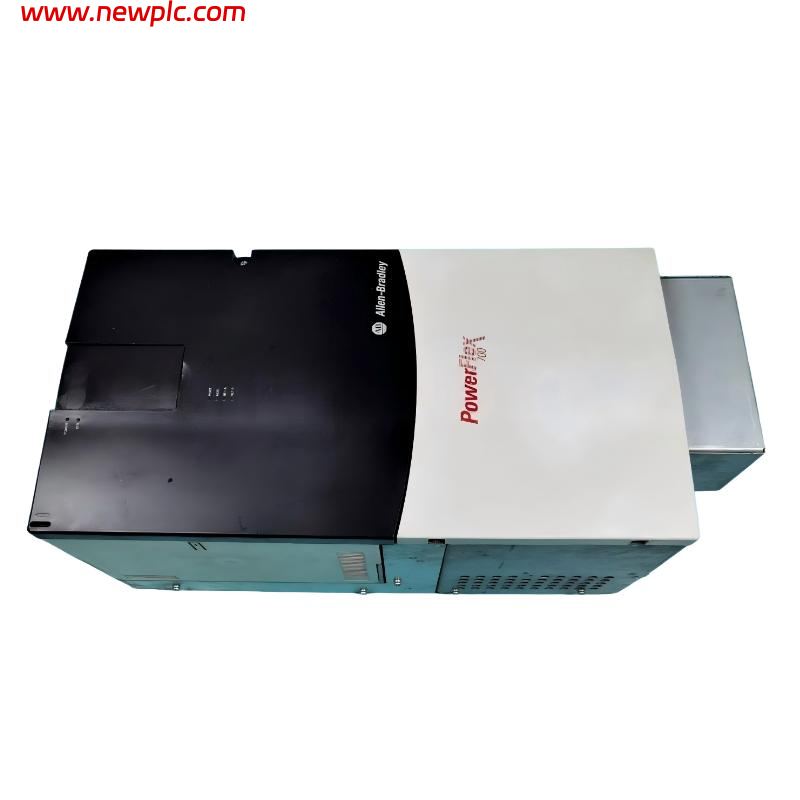

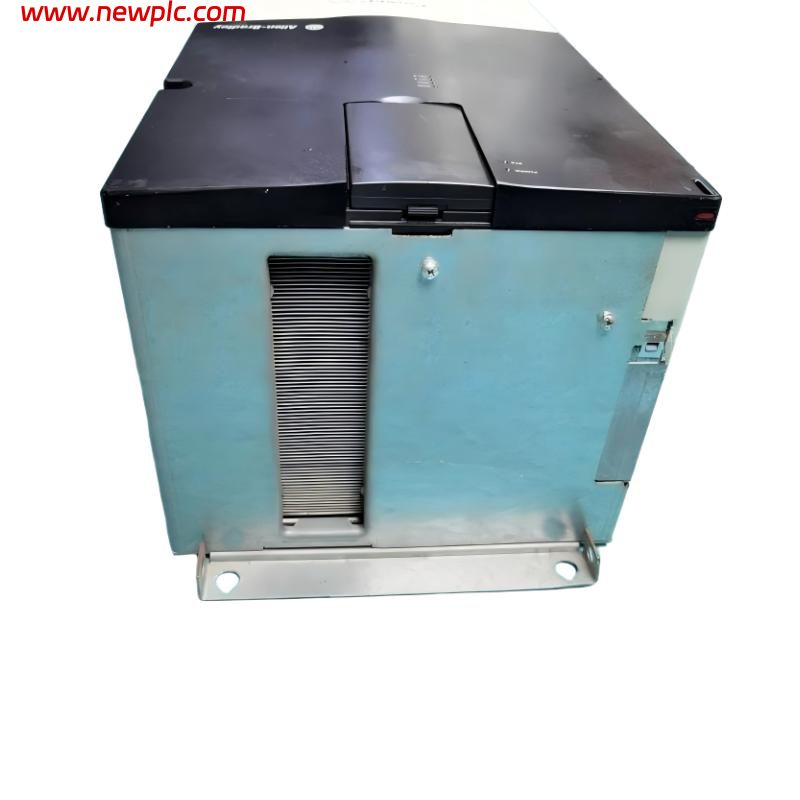

Q1: What is the 20BD096A3ANNANC0?
A: It is an Allen-Bradley PowerFlex 700 AC drive for controlling the speed and torque of industrial AC motors.
Q2: What is its rated power?
A: The drive is rated at 75 HP for normal duty and 60 HP for heavy duty.
Q3: What input power supply does it require?
A: It requires a 480 VAC, three-phase supply at 60 Hz.
Q4: What are the dimensions and weight?
A: The approximate dimensions are 644.5 × 308.9 × 275.4 mm (H × W × D). Net weight is approximately 37.19 kg, with an estimated shipping weight of 49.50 kg.
Q5: Does this model include a keypad?
A: Yes. It includes an LCD display with a full numeric keypad, identified as the 20-HIM-A3.
Q6: Does it include communication and braking hardware?
A: It has no internal communication module, brake IGBT, or internal brake resistor. Optional external accessories may be available depending on the application.
Q7: What I/O voltage and control method does it use?
A: It uses Vector Control with 24 V DC I/O and operates without an encoder feedback option.
Q8: Is this model still manufactured?
A: No. Rockwell Automation lists it as discontinued effective June 1, 2023. Check specialist suppliers for remaining stock, refurbished units, or repair services, and verify the complete catalog number before ordering.
