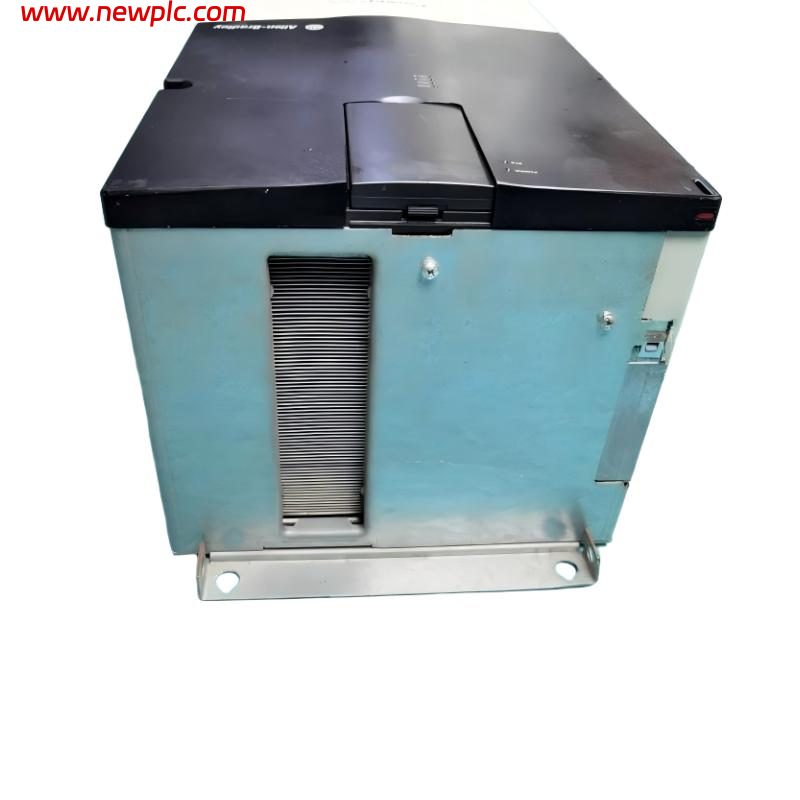

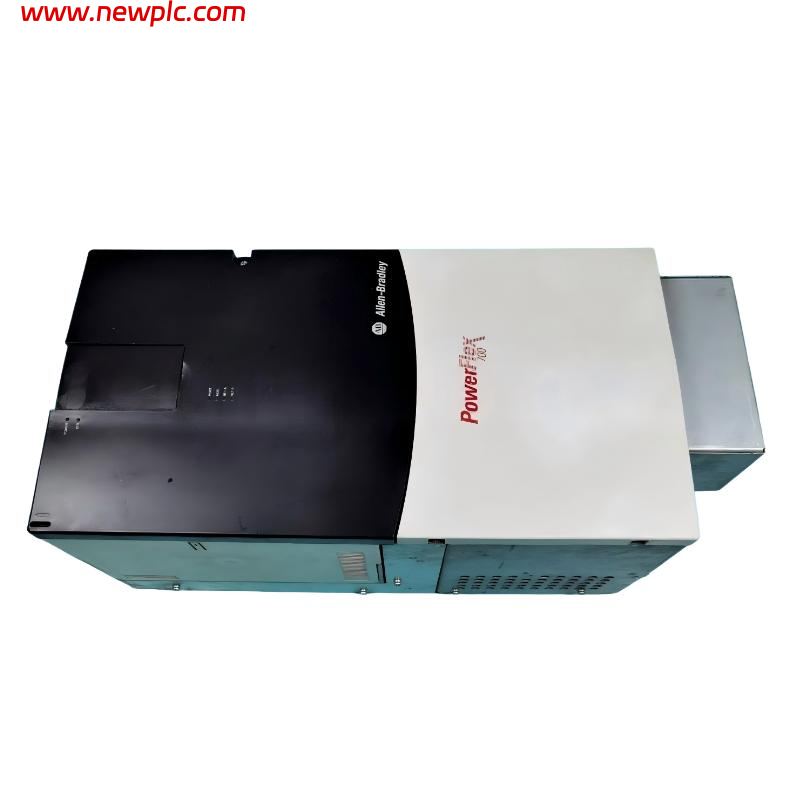

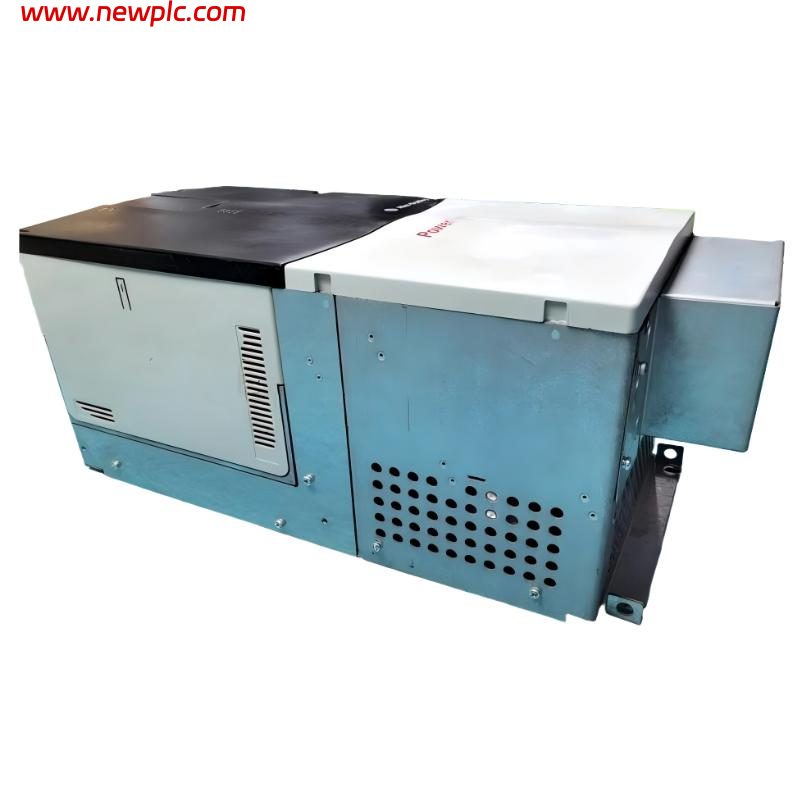

Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Brand |
Allen-Bradley / Rockwell Automation |
|
Product Series |
PowerFlex 700 |
|
Catalog Number |
|
|
Product Type |
Variable Frequency AC Drive (VFD) |
|
Input Voltage |
480 VAC |
|
Input Phase |
3-phase |
|
Input Frequency |
60 Hz |
|
Input Current |
90.1 A (manufacturer-listed value; verify against installation documentation) |
|
Input Power |
97.6 kVA |
|
Normal-Duty Output Current |
125 A |
|
Heavy-Duty Continuous Output Current |
96 A |
|
Normal-Duty Power Rating |
100 HP (75 kW) |
|
Heavy-Duty Power Rating |
75 HP (approximately 55.9 kW) |
|
Heavy-Duty Overload Current |
144 A for 1 minute; 168 A for 3 seconds |
|
Frame Size |
Frame 5 |
|
Enclosure Rating |
IP20 / NEMA/UL Type 1 |
|
Conformal Coating |
Yes |
|
Control Method |
Vector Control |
|
I/O Voltage |
24 V DC |
|
Human Interface Module (HIM) |
None; blank plate installed |
|
Feedback Option |
None |
|
Internal Communication Module |
None |
|
Brake IGBT |
Not installed |
|
Drive-Mounted Brake Resistor |
None |
|
EMC Filter |
Second-environment filter with common-mode choke |
|
Nominal Motor Voltage |
460 VAC |
|
Maximum Output Frequency |
420 Hz |
|
Carrier Frequency |
2, 4, 8, and 10 kHz; drive rating based on 4 kHz |
|
Analog Inputs |
2 |
|
Analog Outputs |
2 |
|
Digital Inputs |
6 |
|
Digital Outputs |
3 |
|
Efficiency |
Approximately 97.5% at rated current and nominal line voltage |
|
Speed Regulation |
0.1% of base speed across a 120:1 speed range in Vector Control mode without feedback |
|
Torque Regulation |
±5% without feedback |
|
Maximum Short-Circuit Rating |
200 kA symmetrical, subject to protective-device requirements |
|
Operating Temperature |
0–50°C under applicable IP20 / Type 1 conditions |
|
Relative Humidity |
5–95%, non-condensing |
|
Maximum Altitude Without Derating |
1,000 m |
|
Approximate Dimensions (H × W × D) |
644.5 × 308.9 × 275.4 mm (25.37 × 12.16 × 10.84 in) |
|
Approximate Net Weight |
37.19 kg (82.0 lb) |
|
Approximate Shipping Weight |
49.50 kg (109.0 lb) |
|
Mounting Hole Spacing (W × H) |
225.0 × 625.0 mm |
FAQ
FAQ
Q1: What is the 20BD125A0ANNANC0?
A: It is an Allen-Bradley PowerFlex 700 variable-frequency AC drive used to control the speed and torque of industrial AC motors.
Q2: What is its rated power?
A: It is rated at 100 HP (75 kW) for normal duty and 75 HP (approximately 55.9 kW) for heavy duty.
Q3: What input power supply does it require?
A: It is designed for 480 VAC, three-phase power at 60 Hz.
Q4: What are the dimensions and weight?
A: The approximate dimensions are 644.5 × 308.9 × 275.4 mm (H × W × D). Net weight is approximately 37.19 kg, and estimated shipping weight is 49.50 kg. These figures should be checked against the exact unit’s mechanical drawing.
Q5: Does it include a keypad or communication module?
A: No. This configuration has a blank plate instead of a HIM keypad and does not include an internal communication module.
Q6: Does it include dynamic braking hardware?
A: No. It has no brake IGBT and no drive-mounted brake resistor. External braking equipment may be required depending on the motor and application.
Q7: What control and I/O options does it support?
A: It uses Vector Control with 24 V DC I/O and has no feedback option. It provides 2 analog inputs, 2 analog outputs, 6 digital inputs, and 3 digital outputs.
Q8: Is this model still manufactured?
A: Rockwell Automation lists it as discontinued effective November 30, 2023. Remaining inventory, refurbished drives, and repair services may be available through specialist suppliers.
