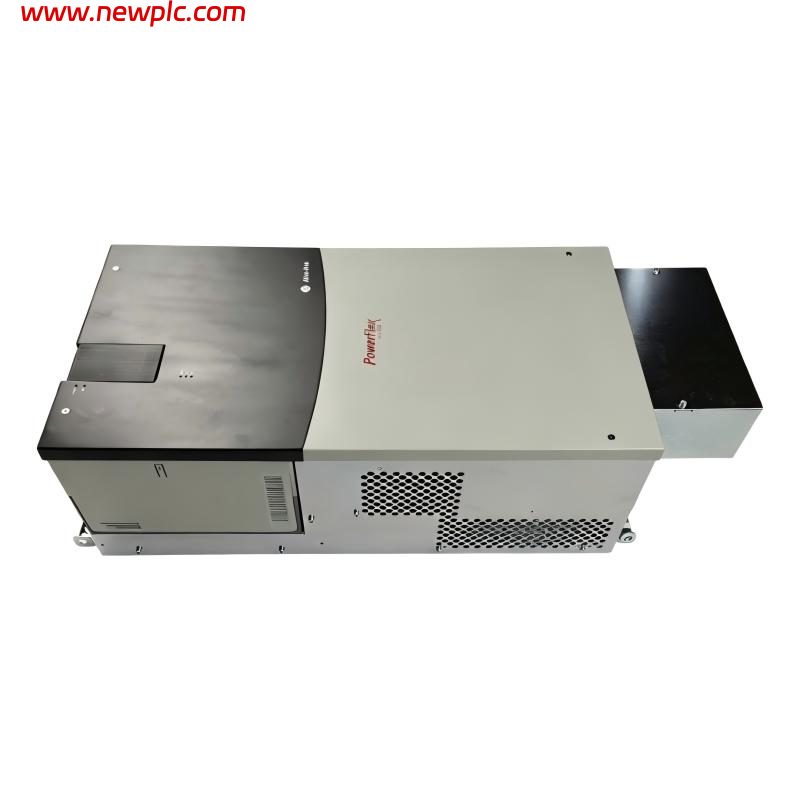

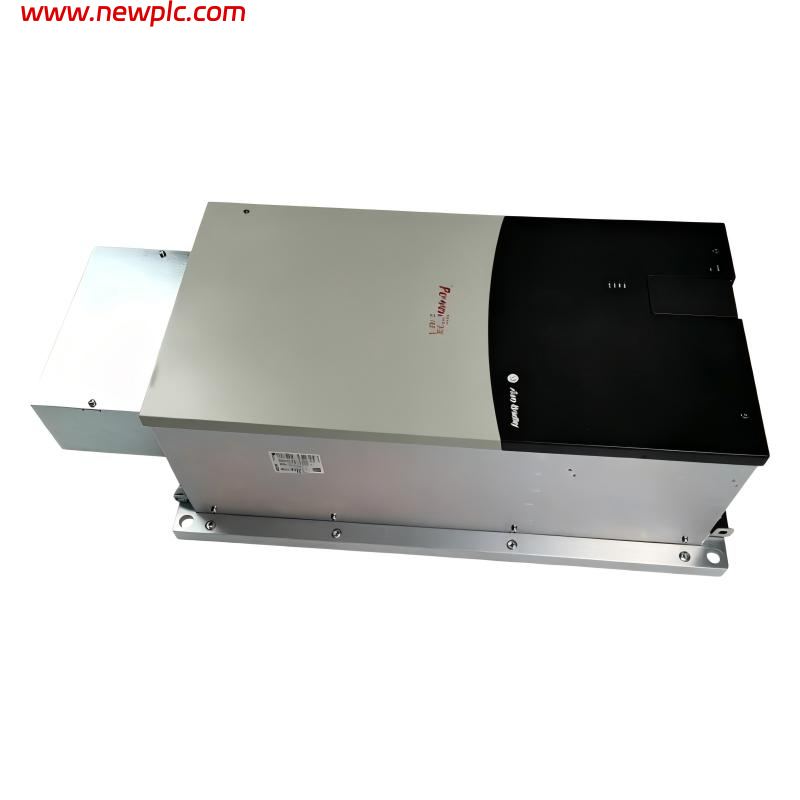

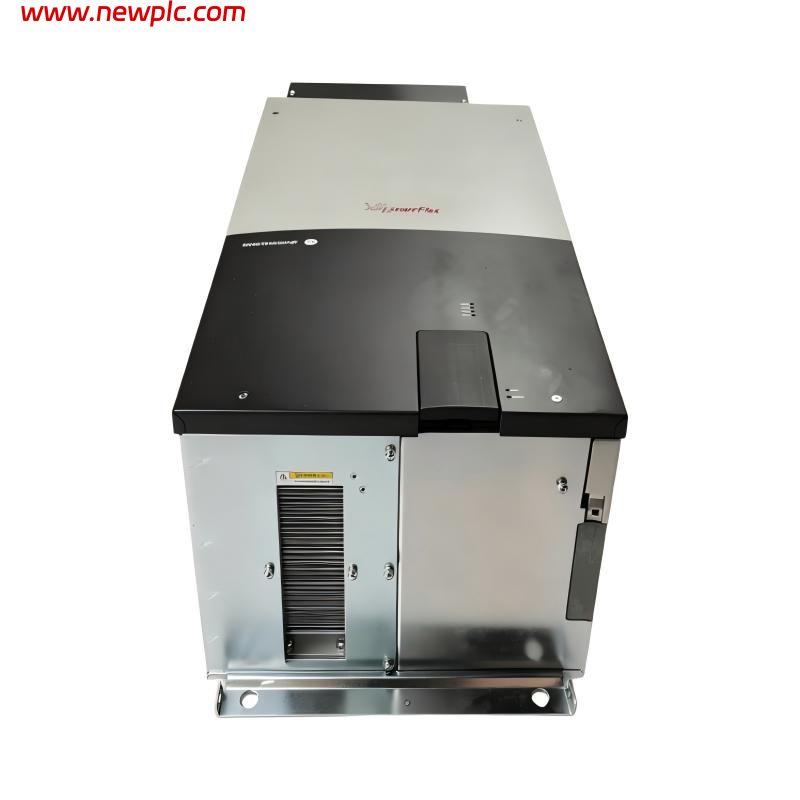

Technical Specifications — Allen-Bradley 20BD125A0ANNAND0
|
Parameter |
Specification |
|---|---|
|
Model |
|
|
Product Type |
PowerFlex 700 AC Drive |
|
Series |
PowerFlex 700 |
|
Input Voltage |
480 VAC |
|
Input Phase |
Three-phase |
|
Input Frequency |
60 Hz |
|
Input Current |
90.1 A |
|
Input Power Rating |
97.6 kVA |
|
Rated Output Current |
125 A |
|
Normal Duty Power Rating |
100 HP |
|
Heavy Duty Power Rating |
75 HP |
|
Frame Size |
Frame 5 |
|
Enclosure Rating |
IP20 / NEMA/UL Type 1 |
|
Conformal Coating |
Yes |
|
Control Method |
Vector Control |
|
I/O |
115 V AC I/O |
|
Feedback |
No Feedback |
|
Human Interface |
No HIM; blank plate |
|
Communication Module |
No Communication Module |
|
Brake IGBT |
Not Included |
|
Internal Brake Resistor |
Not Included |
|
EMC Filter |
Second Environment EMC Filter with Common-Mode Choke |
|
Continuous Output Current |
125 A |
|
Heavy Duty Output Current, 1 minute |
138 A |
|
Heavy Duty Output Current, 3 seconds |
163 A |
|
Motor Rated Voltage |
460 V |
|
Output Voltage Range |
0–460 VAC |
|
Maximum Output Frequency |
420 Hz |
|
Carrier Frequency |
2, 4, 8, and 10 kHz |
|
Analog Inputs |
2 |
|
Analog Outputs |
2 |
|
Digital Inputs |
6 |
|
Digital Outputs |
3 |
|
Motor Overload Protection |
Class 10 |
|
Acceleration Time |
0–3600 s, programmable |
|
Deceleration Time |
0–3600 s, programmable |
|
Speed Regulation |
Approximately 0.1% of base speed across a 120:1 speed range without feedback |
|
Torque Regulation |
±5% without feedback |
|
Nominal DC Bus Voltage |
648 VDC at 480 VAC |
|
DC Bus Undervoltage |
305 VDC at 480 VAC |
|
DC Bus Overvoltage Trip |
810 VDC at 480 VAC |
|
AC Input Undervoltage Trip |
280 VAC at 480 VAC |
|
AC Input Overvoltage Trip |
570 VAC at 480 VAC |
|
Efficiency |
Approximately 97.5% at rated current and nominal line voltage |
|
Maximum Short-Circuit Rating |
200,000 A symmetrical |
|
Power Ride-Through |
15 ms at full load |
|
Line Voltage Tolerance |
±10% |
|
Stop Modes |
Coast, DC Brake, Fast Brake, Ramp-to-Hold, S-Curve, and other programmable modes |
|
Current Limit Capability |
Programmable from 20% to 160% of rated output current |
|
Drive Overcurrent Trip |
Approximately 220–300% of rated current, depending on drive rating |
|
Dimensions (H × W × D) |
689.6 × 308.9 × 275.4 mm |
|
Weight |
37.19 kg |
FAQ
FAQ
Q1: What is the rated power of the 20BD125A0ANNAND0?
A: The drive is rated at 100 HP for normal duty and 75 HP for heavy duty.
Q2: What input power supply does it require?
A: It requires a 480 VAC, three-phase supply at 60 Hz.
Q3: What is its rated output current?
A: The continuous output current is 125 A, with heavy-duty overload ratings of 138 A for 1 minute and 163 A for 3 seconds.
Q4: What are the dimensions and weight?
A: The listed dimensions are 689.6 × 308.9 × 275.4 mm (H × W × D), and the listed weight is 37.19 kg.
Q5: Does this model include a keypad?
A: No. This configuration has no Human Interface Module (HIM) and uses a blank plate.
Q6: Does it include a braking transistor or resistor?
A: No. Neither a brake IGBT nor an internal brake resistor is included in the specified configuration.
Q7: What control and feedback features does it support?
A: It uses Vector Control, has 115 V AC I/O, and is specified without a feedback option. The supplied speed regulation figure is approximately 0.1% of base speed across a 120:1 speed range without feedback.
Q8: What enclosure protection does it provide?
A: It has an IP20 / NEMA/UL Type 1 enclosure with conformal coating. It should be installed in a suitable protected electrical environment.
