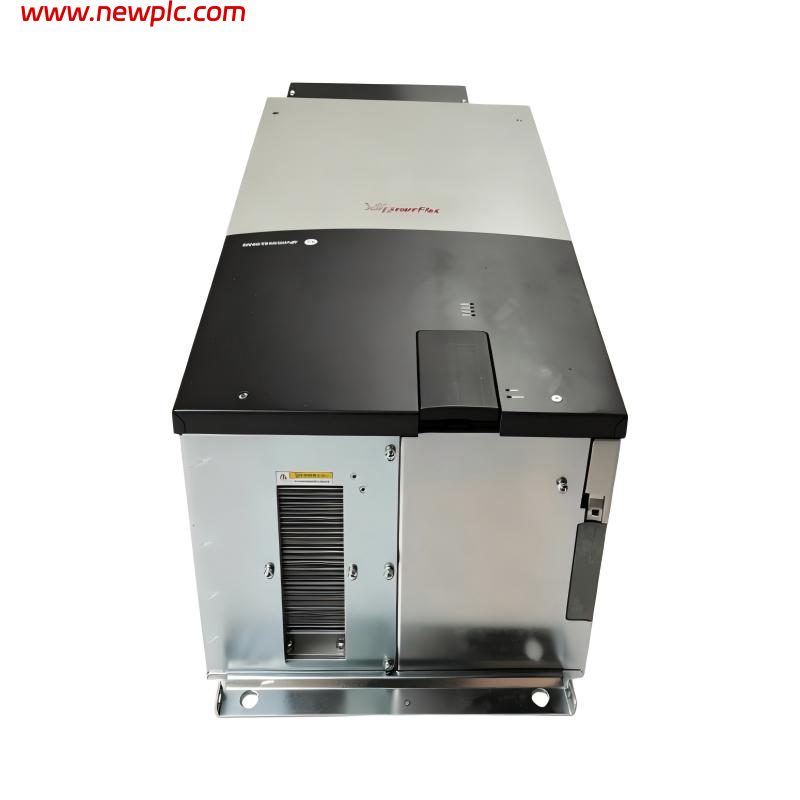

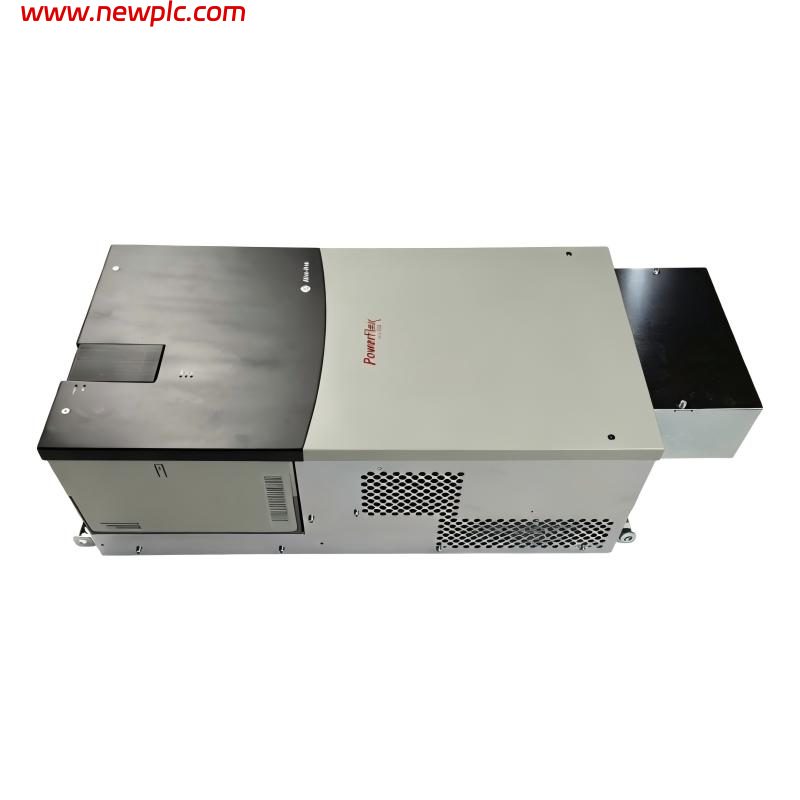

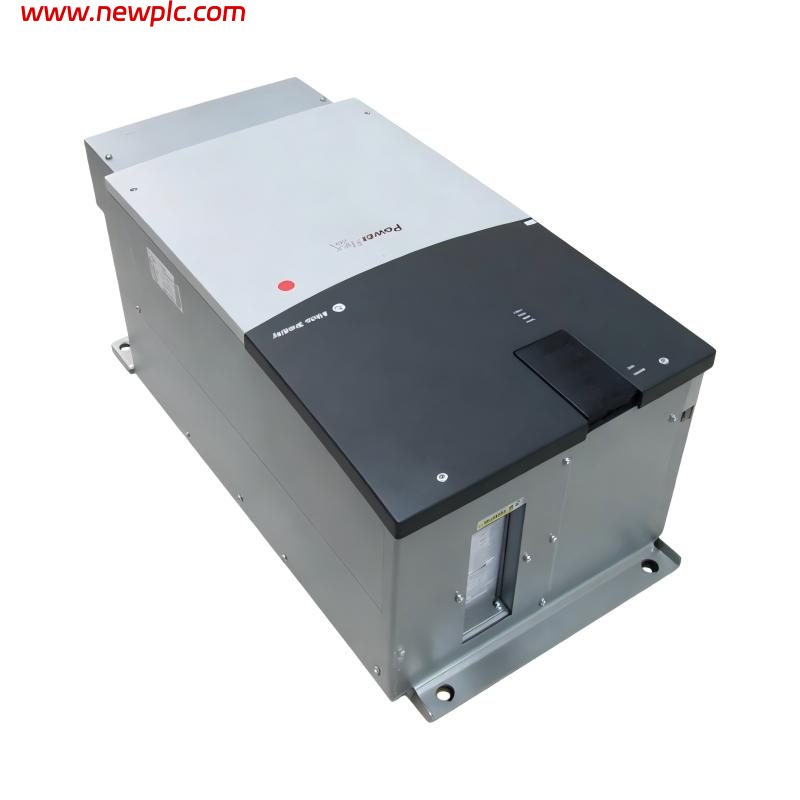

Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Brand |
Allen-Bradley / Rockwell Automation |
|
Model |
|
|
Product Type |
PowerFlex 700 AC Drive |
|
Series |
PowerFlex 700 |
|
Input Voltage |
480 VAC |
|
Input Phase |
Three-phase |
|
Input Frequency |
60 Hz |
|
Input Current |
90.1 A |
|
Input Power Rating |
97.6 kVA |
|
Normal Duty Power Rating |
100 HP (75 kW) |
|
Heavy Duty Power Rating |
75 HP (approximately 55.9 kW) |
|
Normal Duty Output Current |
125 A |
|
Heavy Duty Continuous Output Current |
96 A |
|
Heavy Duty Output Current, 1 minute |
144 A |
|
Heavy Duty Output Current, 3 seconds |
168 A |
|
Frame Size |
Frame 5 |
|
Enclosure Rating |
IP20 / NEMA/UL Type 1 |
|
Conformal Coating |
Verify exact suffix configuration |
|
Control Method |
Vector Control / Sensorless Vector |
|
I/O Configuration |
Confirm exact |
|
Human Interface Module (HIM) |
Related |
|
Feedback |
No feedback option listed for the related configuration |
|
Communication Module |
No internal communication module listed for the related configuration |
|
Brake IGBT |
Not included in the related configuration |
|
Internal Brake Resistor |
Not included in the related configuration |
|
EMC Filter |
Internal EMC filter with common-mode choke |
|
Nominal Motor Voltage |
460 VAC |
|
Output Voltage Range |
0–460 VAC |
|
Maximum Output Frequency |
400 Hz in the related official catalog data |
|
Carrier Frequency |
2, 4, 8, and 10 kHz; rating based on 4 kHz |
|
Analog Inputs |
2 |
|
Analog Outputs |
2 |
|
Digital Inputs |
6 |
|
Digital Outputs |
3 |
|
Motor Overload Protection |
Class 10 for standard-control configurations |
|
Acceleration / Deceleration |
Independently programmable, 0–3600 seconds |
|
Speed Regulation |
Approximately 0.1% of base speed across a 120:1 speed range without feedback in Vector Control mode |
|
Torque Regulation |
±5% without feedback |
|
Nominal DC Bus Voltage |
648 VDC at 480 VAC |
|
DC Bus Undervoltage Trip |
305 VDC at 480 VAC |
|
DC Bus Overvoltage Trip |
810 VDC at 480 VAC |
|
AC Input Undervoltage Trip |
280 VAC at 480 VAC |
|
AC Input Overvoltage Trip |
570 VAC at 480 VAC |
|
Efficiency |
Approximately 97.5% at rated current and nominal line voltage |
|
Maximum Short-Circuit Rating |
200,000 A symmetrical, subject to protective-device requirements |
|
Power Ride-Through |
15 ms at full load |
|
Line Voltage Tolerance |
±10% |
|
Operating Temperature |
0–50°C for applicable IP20 / Type 1 configurations |
|
Relative Humidity |
5–95%, non-condensing |
|
Maximum Altitude Without Derating |
1,000 m |
|
Dimensions (H × W × D) |
644.5 × 308.9 × 275.4 mm (25.37 × 12.16 × 10.84 in) |
|
Net Drive Weight |
37.19 kg (82.0 lb) |
|
Estimated Shipping Weight |
49.50 kg (109.0 lb) |
|
Lifecycle Status |
Related PowerFlex 700 models discontinued; verify exact catalog number |
FAQ
FAQ
Q1: What is the 20BD125A3ANNACA0?
A: It is a catalog number associated with the Allen-Bradley PowerFlex 700 family of variable-frequency AC drives. The exact ACA0 configuration should be checked against the unit’s nameplate.
Q2: What is its rated power?
A: The related 125 A PowerFlex 700 configuration is rated at 100 HP for normal duty and 75 HP for heavy duty.
Q3: What input power supply does it require?
A: The related configuration requires 480 VAC, three-phase power at 60 Hz.
Q4: What are the dimensions and weight?
A: The reference dimensions are 644.5 × 308.9 × 275.4 mm (H × W × D). Net drive weight is approximately 37.19 kg, with an estimated packaged weight of 49.50 kg. These figures are for a related model and should be verified for the exact catalog number.
Q5: Does it include a keypad?
A: The related 20BD125A3ANNANC0 configuration is listed with an LCD full-numeric keypad. Confirm the interface hardware supplied with the ACA0 variant.
Q6: Does it include a communication module?
A: The related configuration has no internal communication module. Verify the exact variant before selecting network accessories.
Q7: Does it include braking hardware?
A: The related configuration has no brake IGBT or internal brake resistor. External braking requirements depend on the application and the exact drive hardware.
Q8: Is this model still manufactured?
A: Rockwell Automation lists related PowerFlex 700 models as discontinued. Check the exact catalog number with Rockwell Automation or an authorized supplier for lifecycle status, replacement options, and remaining inventory.
