Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Manufacturer |
Allen-Bradley / Rockwell Automation |
|
Product family |

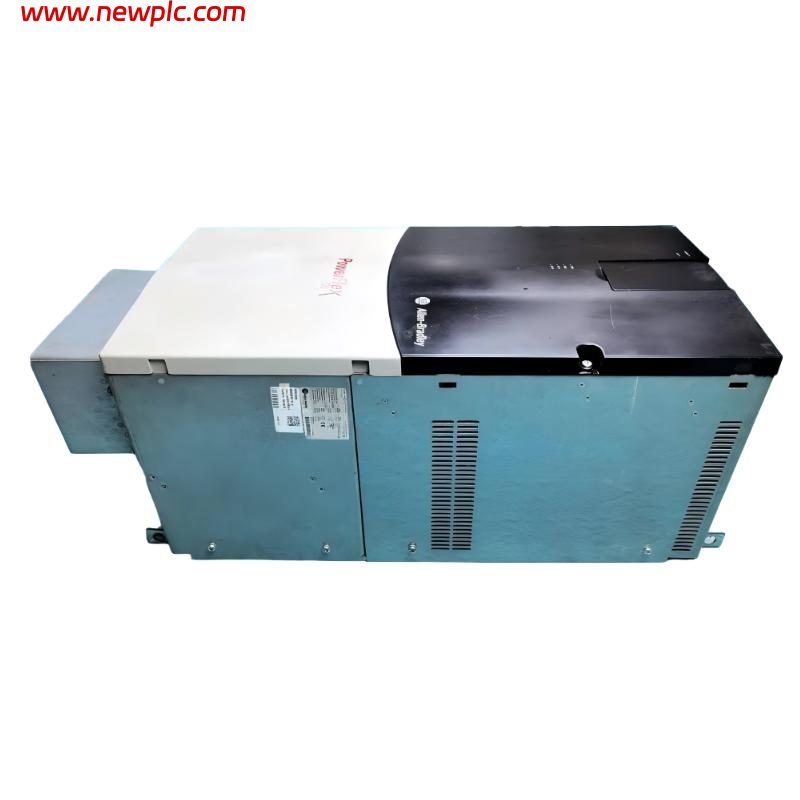

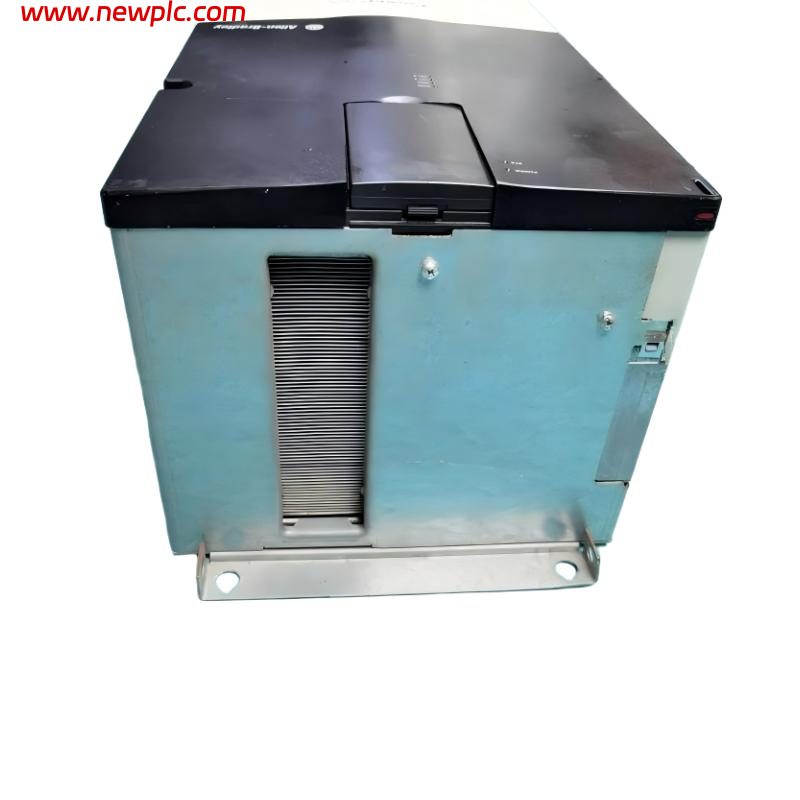

PowerFlex 700 AC Drive, 20B series |
|
Catalog number |
|
|
Input voltage |
480 V AC |
|
Input phases |
3-phase |
|
Rated output current |
125 A |
|
Normal-duty power |
100 HP (approximately 75 kW) |
|
Heavy-duty power |
75 HP (approximately 55 kW) |
|
Enclosure rating |
IP20 / NEMA 1 / UL Type 1 |
|
Display |
LCD display with full numeric keypad |
|
Control method |
Vector control |
|
I/O class |
24 V DC I/O |
|
Communication |
ControlNet coaxial DPI module |
|
Feedback |
Standard encoder |
|
Brake IGBT |
Not included |
|
Internal braking resistor |
Not included |
|
EMC filter |
Second-environment filter per CE EMC directive, as listed by distributor |
|
Carrier frequency |
4 kHz reference; configurable settings depend on drive setup |
|
Dimensions (H × W × D) |
644.5 × 308.9 × 275.4 mm (25.37 × 12.16 × 10.84 in), including mounting hardware; related-model reference |
|
Net drive weight |
37.19 kg (82.0 lb); related-model reference |
|
Estimated shipping weight |
49.50 kg (109.0 lb) including packaging; related-model reference |
|
Mounting-hole spacing |
625.0 mm high × 225.0 mm wide; related-model reference |
|
Lifecycle |
PowerFlex 700 20B series discontinued by Rockwell Automation; verify exact catalog-number status with the supplier |
FAQ
FAQ
Q1: What is the rated voltage of 20BD125A3ANNACC1?
A: 480 V AC, three-phase.
Q2: What is its rated power?
A: 100 HP (approximately 75 kW) under normal-duty conditions and 75 HP (approximately 55 kW) under heavy-duty conditions, according to the distributor listing.
Q3: What is its output current?
A: 125 A, as listed for this catalog number.
Q4: Does it support ControlNet?
A: Yes. The distributor listing identifies a ControlNet coaxial DPI communication module.
Q5: Does it include a braking resistor?
A: No internal braking resistor or brake IGBT is listed. An external braking solution may be needed depending on the application.
Q6: What are the dimensions?
A: The related-model reference dimensions are 644.5 mm high × 308.9 mm wide × 275.4 mm deep, including mounting hardware. Confirm these against the exact unit before installation.
Q7: What is the weight?
A: The related-model reference net drive weight is 37.19 kg, and estimated shipping weight including packaging is 49.50 kg. These are not independently confirmed for the exact ACC1 variant.
Q8: What should be verified before ordering a replacement?
A: Confirm the full catalog number, communication module, encoder feedback, EMC filter, I/O configuration, dimensions, and weight against the nameplate and manufacturer documentation.
