Technical Specifications

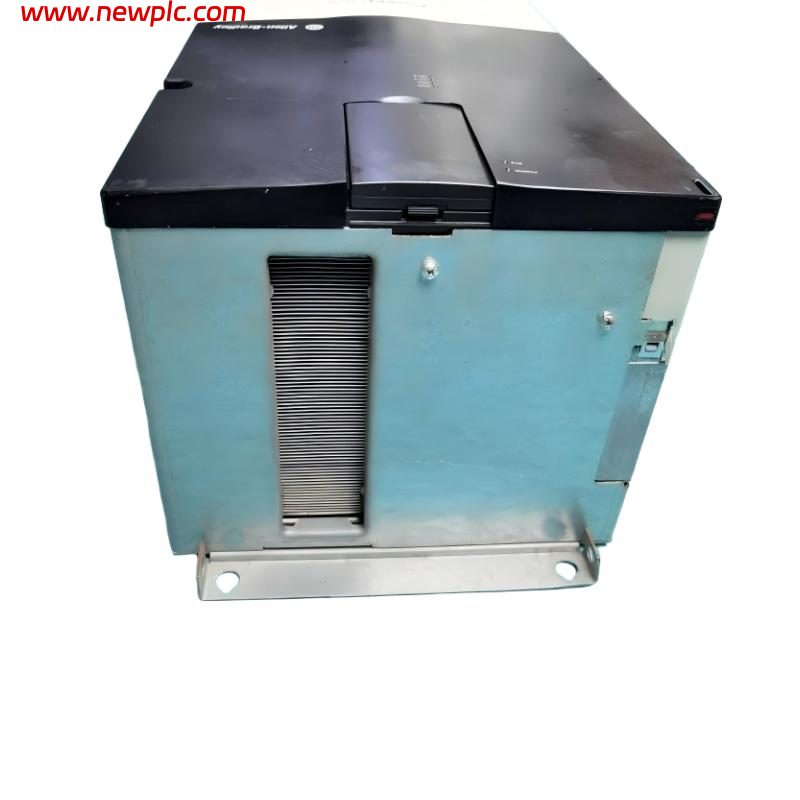

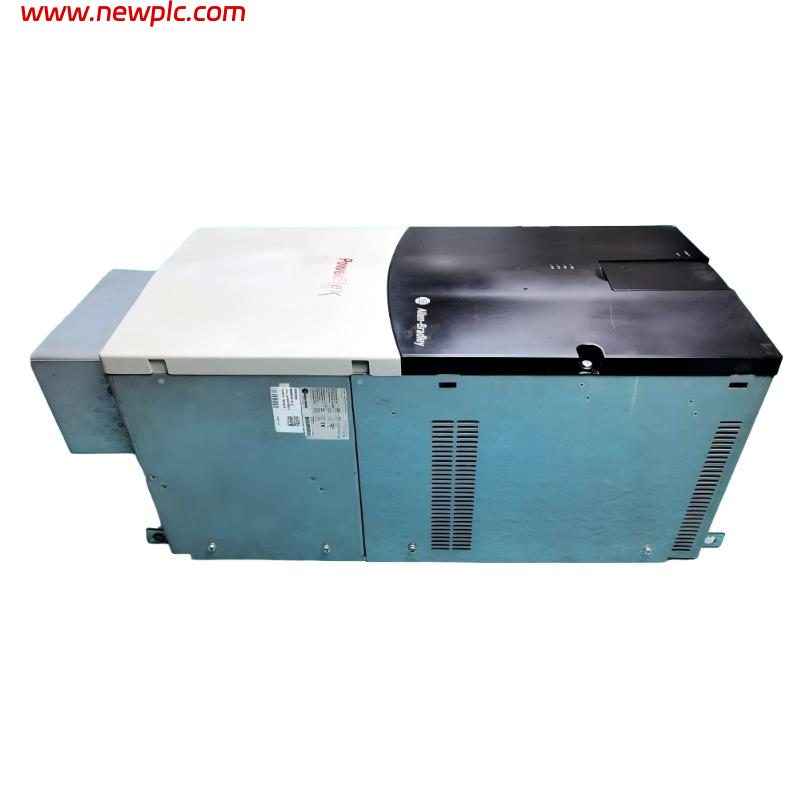

The 20BD series belongs to the Allen-Bradley PowerFlex 700 adjustable-frequency AC drive family. Exact suffixes can indicate differences in enclosure, I/O, feedback, and communication options, so the precise specifications for 20BD125A3ANNAEC0 should be checked against the manufacturer’s catalog data. Dimensions and weight are included in the specification table below, with related-model values clearly identified where exact data cannot be confirmed.
|
Parameter |
Specification |
|---|---|
|
Manufacturer |
Allen-Bradley / Rockwell Automation |
|
Model |
|
|
Product Type |
PowerFlex 700 AC Drive |
|
Series |
PowerFlex 700, 20B |
|
Input Voltage |
480 VAC |
|
Input Phase |
3-phase |
|
Input Frequency |
60 Hz |
|
Input Current |
90.1 A (related 125 A model data) |
|
Input Power |
97.6 kVA (related model data) |
|
Normal-Duty Power |
100 HP (approximately 75 kW) |
|
Heavy-Duty Output Current |
96 A continuous; related model data |
|
Heavy-Duty Overload |
144 A for 1 minute; 168 A for 3 seconds, related model data |
|
Output Voltage |
0–460 VAC at 480 VAC input, related model data |
|
Control Method |
Vector Control |
|
Communication Module |
EtherNet/IP, according to the closely matching 20BD125A3ANNAEC0NNAD listing |
|
Analog Inputs |
2, related model data |
|
Analog Outputs |
2, related model data |
|
Digital Inputs |
6, related model data |
|
Digital Outputs |
3, related model data |
|
Brake IGBT |
Not included |
|
Internal Brake Resistor |
Not included |
|
Enclosure |
IP20 / NEMA 1 / UL Type 1 for the related configuration |
|
Carrier Frequency |
2, 4, 8, or 10 kHz, related model data |
|
Maximum Output Frequency |
Up to 420 Hz on the closely matching EtherNet/IP variant |
|
Acceleration/Deceleration |
Two independently programmable times, 0–3600 seconds |
|
Efficiency |
Approximately 97.5% at rated load, related model data |
|
Operating Temperature |
Up to 50°C at 480 VAC for the related enclosure configuration |
|
Maximum Altitude |
1000 m without derating, related model data |
|
Dimensions (H × W × D) |
644.5 × 308.9 × 275.4 mm (25.37 × 12.16 × 10.84 in), reference dimensions from a related model; exact suffix not verified |
|
Net Weight |
Approximately 37.19 kg (82.0 lb), related-model reference |
|
Estimated Shipping Weight |
Approximately 49.50 kg (109.0 lb), related-model reference |
|
Lifecycle Status |
PowerFlex 700 20B series discontinued by Rockwell Automation on June 1, 2023 |
FAQ
FAQ
Q1: What is the 20BD125A3ANNAEC0?
A: It is a catalog number associated with the Allen-Bradley PowerFlex 700 AC drive family. The exact suffix was not independently verified in Rockwell Automation’s available listing.
Q2: What is the rated voltage?
A: The related drive configuration is rated for a 480 VAC, three-phase input.
Q3: What is the rated power?
A: The closely matching 125 A PowerFlex 700 configuration is rated at 100 HP (approximately 75 kW) for normal-duty applications.
Q4: Which communication protocol does it support?
A: The closely matching extended catalog number 20BD125A3ANNAEC0NNAD specifies EtherNet/IP. Confirm the communication option on the actual drive before integration.
Q5: Does it have a built-in braking resistor?
A: The related model is listed without an internal braking resistor or brake IGBT.
Q6: What are its dimensions?
A: A related model measures approximately 644.5 × 308.9 × 275.4 mm (H × W × D). These dimensions are a reference, not a verified mechanical specification for the exact catalog number.
Q7: How much does it weigh?
A: The related-model reference is approximately 37.19 kg net and 49.50 kg packed for shipping. Actual weight may vary with the installed options and packaging.
Q8: Is the PowerFlex 700 still manufactured?
A: Rockwell Automation lists the PowerFlex 700 20B series as discontinued effective June 1, 2023. Check current stock, repair availability, and compatible replacement options with a supplier.
