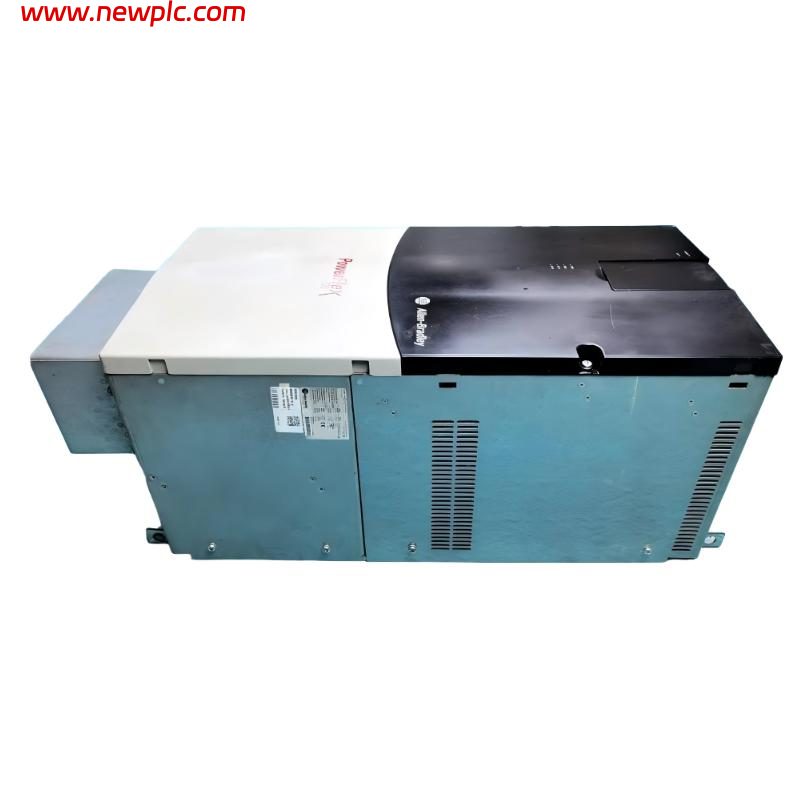

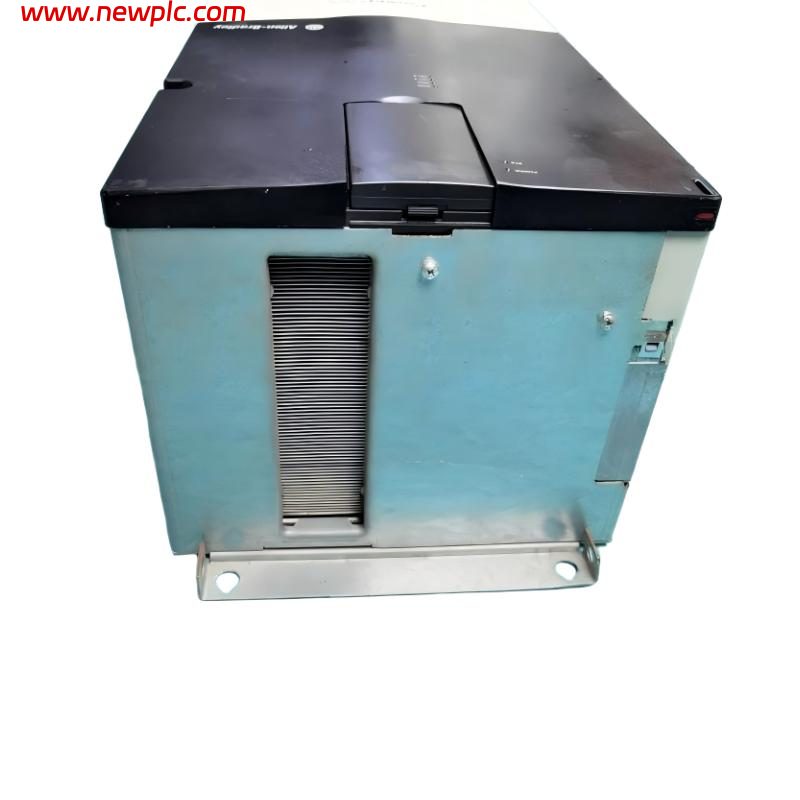

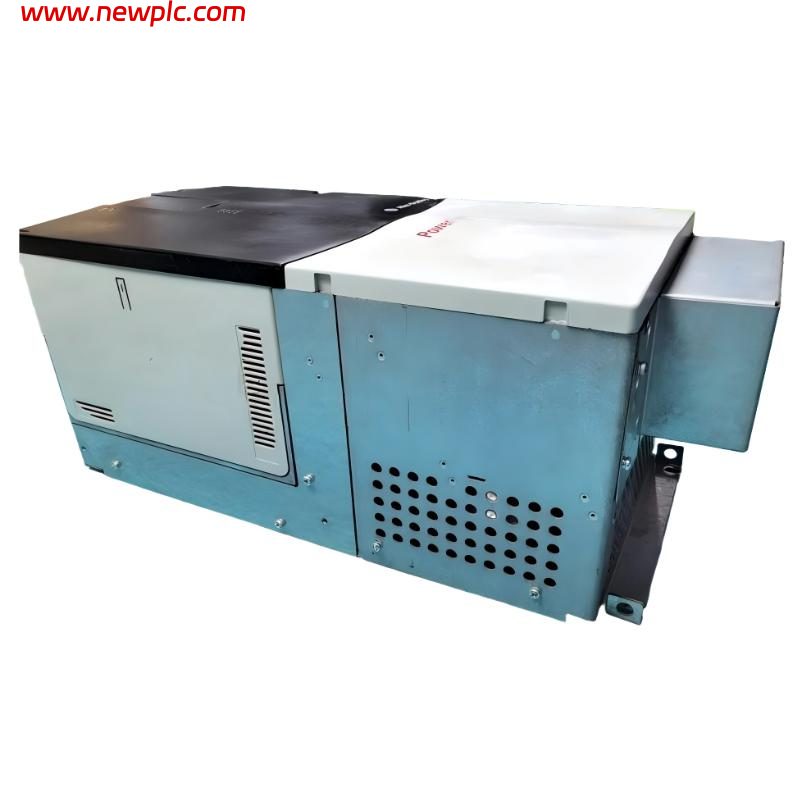

Technical Specifications
The exact catalog number 20BD156A3ANNANA0 did not appear in the results I could verify. The following table uses official Rockwell Automation data for the closely related 156 A model and dimensional data for the same frame size. Confirm suffix-specific options before using this information for purchasing or installation.
|
Parameter |
Specification |
|---|---|
|
Manufacturer |
Allen-Bradley / Rockwell Automation |
|
Catalog Number |
|
|
Product Type |
Adjustable Frequency AC Drive |
|
Product Family |
PowerFlex 700 |
|
Series |
20B |
|
Input Voltage |
480 VAC |
|
Input Phase |
3-phase |
|
Input Frequency |
60 Hz |
|
Input Current |
147 A, related-model reference |
|
Input Power |
122 kVA, related-model reference |
|
Normal-Duty Power |
125 HP (approximately 93 kW) |
|
Normal-Duty Output Current |
156 A |
|
Heavy-Duty Output Current |
188 A for 1 minute; 250 A for 3 seconds |
|
Output Voltage |
0–460 VAC |
|
Control Methods |
Sensorless Vector, Vector Control, and Volts/Hertz |
|
Control I/O |
24 V AC/DC on related standard-control configurations |
|
Analog Inputs |
2, related-model reference |
|
Analog Outputs |
2, related-model reference |
|
Digital Inputs |
6, related-model reference |
|
Digital Outputs |
3, related-model reference |
|
Operator Interface |
Depends on catalog options; verify exact suffix |
|
Communication Module |
Not confirmed for the exact |
|
EMC Filter |
EMC filter with common-mode choke on related configurations |
|
Brake IGBT |
Not included on related configurations |
|
Internal Brake Resistor |
Not included on related configurations |
|
Enclosure |
IP20 / NEMA 1 / UL Type 1 on related configurations |
|
Carrier Frequency |
2, 4, 8, or 10 kHz; rated at 4 kHz |
|
Maximum Output Frequency |
400 Hz standard control; up to 420 Hz in vector control |
|
Efficiency |
Approximately 97.5% at rated current and nominal line voltage |
|
Operating Temperature |
0–50°C for applicable IP20 configurations |
|
Storage Temperature |
−40°C |
|
Relative Humidity |
5–95%, non-condensing |
|
Maximum Altitude |
1,000 m without derating |
|
Shock Rating |
15 G peak for 11 ms |
|
Dimensions (H × W × D) |
850.0 × 403.9 × 275.5 mm (33.46 × 15.90 × 10.85 in), related-model reference |
|
Net Drive Weight |
71.44 kg (157.5 lb), related-model reference |
|
Estimated Shipping Weight |
100.9 kg (222.0 lb), related-model reference |
|
Mounting Hole Spacing |
825.0 mm high × 300.0 mm wide, related-model reference |
|
Lifecycle Status |
PowerFlex 700 20B series discontinued effective June 1, 2023 |
FAQ
FAQ
Q1: What is the 20BD156A3ANNANA0?
A: It is a catalog number in the Allen-Bradley PowerFlex 700 AC drive family. The exact suffix-specific configuration requires confirmation.
Q2: What is its rated input voltage?
A: The related 20BD156A3 models use a 480 VAC, three-phase input.
Q3: What is its rated power and output current?
A: The related model is rated at 125 HP (approximately 93 kW) normal duty, with 156 A continuous output current. Heavy-duty ratings are 188 A for one minute and 250 A for three seconds.
Q4: Which motor control methods does it support?
A: Related PowerFlex 700 configurations support Sensorless Vector, Vector Control, and Volts/Hertz control.
Q5: Does it include an internal braking resistor?
A: Related configurations are listed without an internal braking resistor or brake IGBT. Confirm the exact unit’s configuration before planning braking requirements.
Q6: What are the dimensions?
A: The same-frame reference dimensions are 850.0 mm high × 403.9 mm wide × 275.5 mm deep. These are not independently confirmed for the exact ANNANA0 suffix.
Q7: What is the weight?
A: The related-model reference is 71.44 kg (157.5 lb) net and approximately 100.9 kg (222.0 lb) packaged for shipping. Confirm the exact unit and packaging with the supplier.
Q8: Is this drive still manufactured?
A: Rockwell Automation discontinued the PowerFlex 700 20B series effective June 1, 2023. Existing stock, repair services, and replacement options may still be available.
