Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Manufacturer |
Allen-Bradley / Rockwell Automation |
|
Catalog Number |
|
|
Product Type |
Adjustable Frequency AC Drive |
|
Product Family |
PowerFlex 700 |
|
Series |
20B |
|
Input Voltage |
480 VAC |
|
Input Phase |
3-phase |
|
Input Frequency |
60 Hz |
|
Input Current |
147 A |
|
Input Power |
122 kVA |
|
Normal-Duty Power |
125 HP (approximately 93 kW) |
|
Normal-Duty Output Current |
156 A |
|
Heavy-Duty Output Current |
188 A for 1 minute; 250 A for 3 seconds |
|
Output Voltage |
0–460 VAC |
|
Control Method |
Sensorless Vector, Vector Control, and Volts/Hertz |
|
Control I/O |
24 V DC I/O |
|
Analog Inputs |
2 |
|
Analog Outputs |
2 |
|
Digital Inputs |
6 |
|
Digital Outputs |
3 |
|
Operator Interface |
LCD display with full numeric keypad |
|
Feedback |
No encoder feedback |
|
Communication Module |
ControlNet coaxial |
|
EMC Filter |
Included, with common-mode choke |
|
Brake IGBT |
Not included |
|
Internal Brake Resistor |
Not included |
|
Enclosure Rating |
IP20 / NEMA 1 / UL Type 1 |
|
Carrier Frequency |
2, 4, 8, or 10 kHz; rated at 4 kHz |
|
Maximum Output Frequency |
400 Hz standard control; up to 420 Hz in vector control |
|
Efficiency |
Approximately 97.5% |
|
Acceleration/Deceleration |
Two independently programmable times, 0–3600 seconds |
|
Operating Temperature |
0–50°C for applicable IP20 configurations |
|
Storage Temperature |
−40°C |
|
Relative Humidity |
5–95%, non-condensing |
|
Maximum Altitude |
1,000 m without derating |
|
Shock Rating |
15 G peak for 11 ms |
|
Vibration Rating |
0.152 mm displacement, 1 G peak |
|
Dimensions (H × W × D) |
850.0 × 403.9 × 275.5 mm (33.46 × 15.90 × 10.85 in), reference dimensions for the IP20 chassis; verify against the mechanical drawing |
|
Net Drive Weight |
Approximately 71.44 kg (157.5 lb), related-model reference |
|
Estimated Shipping Weight |
Approximately 100.9 kg (222.0 lb), related-model reference |
|
IP54 / NEMA Type 12 Standalone Dimensions (H × W × D) |
1828.8 × 711.3 × 487.8 mm (72.0 × 28.0 × 19.2 in) |
|
IP54 / NEMA Type 12 Standalone Weight |
229.07 kg (505 lb), drive and packaging |
|
Lifecycle Status |
Discontinued effective June 1, 2023 |
FAQ
FAQ

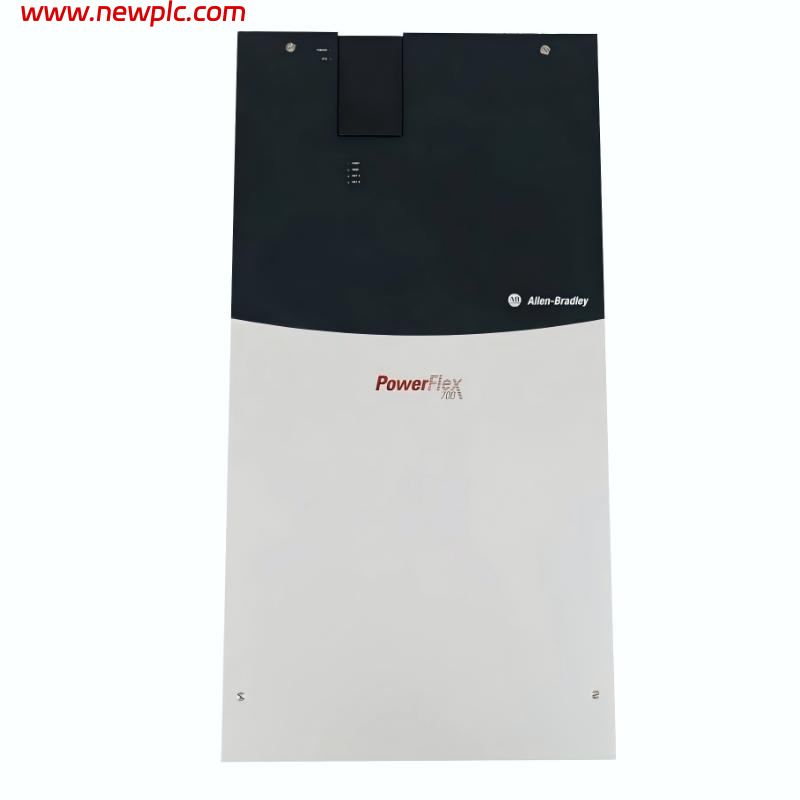

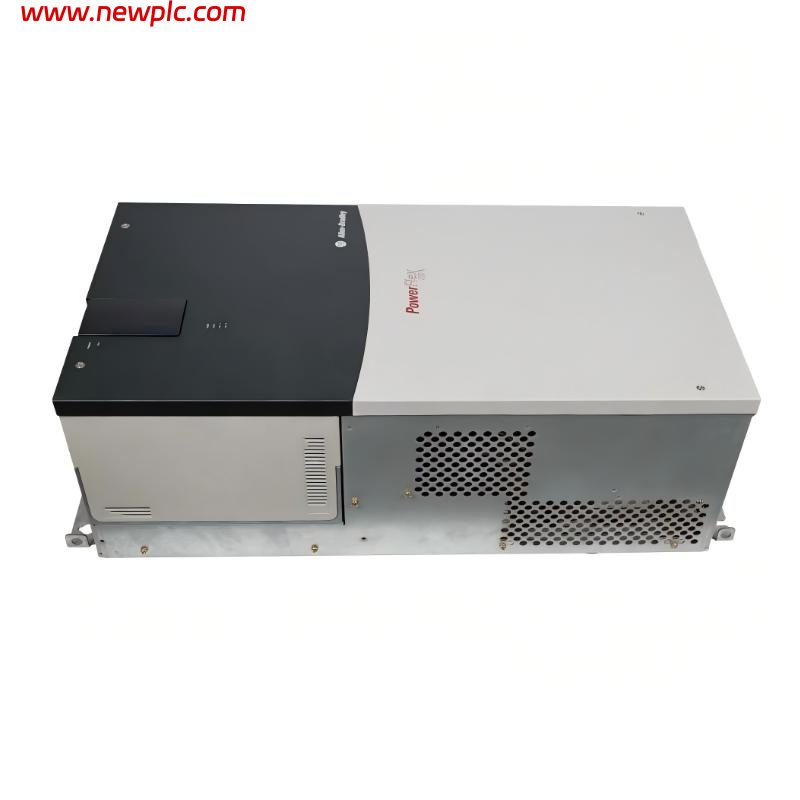

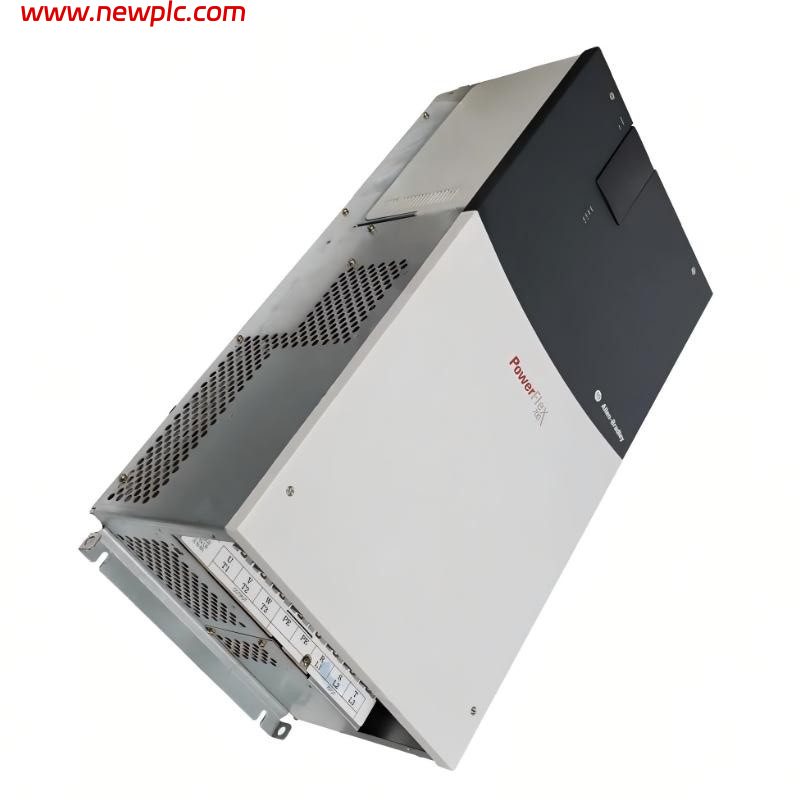

Q1: What is the 20BD156A3ANNANC0?
A: It is an Allen-Bradley PowerFlex 700 adjustable-frequency AC drive designed for industrial motor speed and torque control.
Q2: What is its rated input voltage?
A: It operates on a 480 VAC, three-phase, 60 Hz supply.
Q3: What are its rated power and output current?
A: Its normal-duty rating is 125 HP (approximately 93 kW), with a continuous output current of 156 A. Heavy-duty ratings are 188 A for one minute and 250 A for three seconds.
Q4: Which communication network does it support?
A: The catalog specification identifies an internal ControlNet coaxial communication module.
Q5: Does it include an internal braking resistor?
A: No. The manufacturer’s listing specifies no internal braking resistor and no brake IGBT.
Q6: What are its dimensions?
A: The related IP20 chassis reference is approximately 850.0 × 403.9 × 275.5 mm (H × W × D). For the standalone IP54/NEMA Type 12 version, Rockwell lists 1828.8 × 711.3 × 487.8 mm. Verify the actual enclosure before installation.
Q7: How much does it weigh?
A: The related IP20 chassis reference is approximately 71.44 kg net, with an estimated shipping weight of 100.9 kg. The standalone IP54/NEMA Type 12 version is listed at 229.07 kg including packaging. These weights refer to different configurations.
Q8: Is this drive still manufactured?
A: No. Rockwell Automation lists the PowerFlex 700 20B series as discontinued effective June 1, 2023. Repair services and functional replacement options may still be available.
