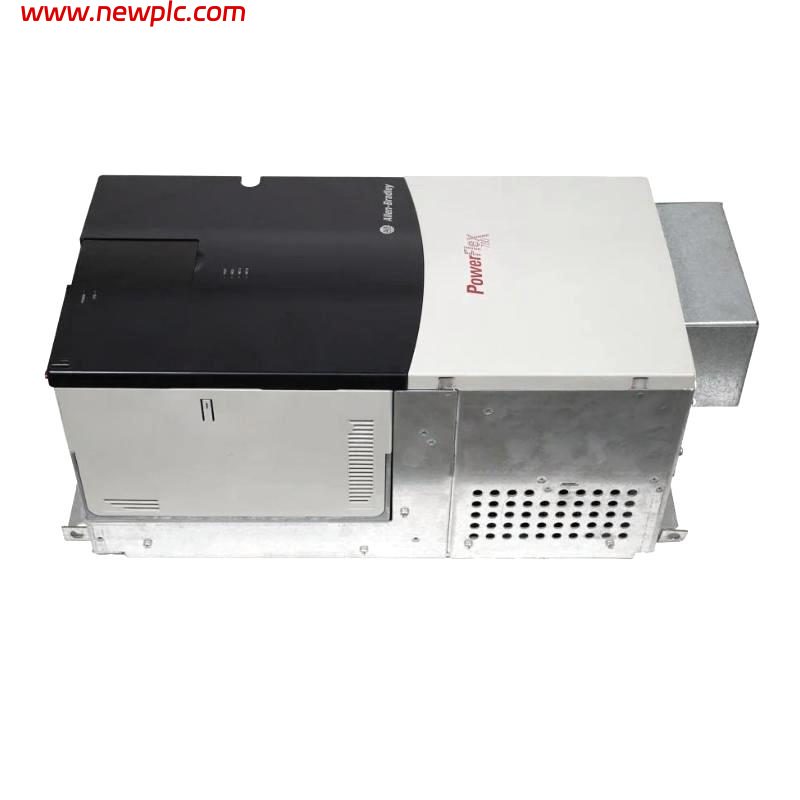

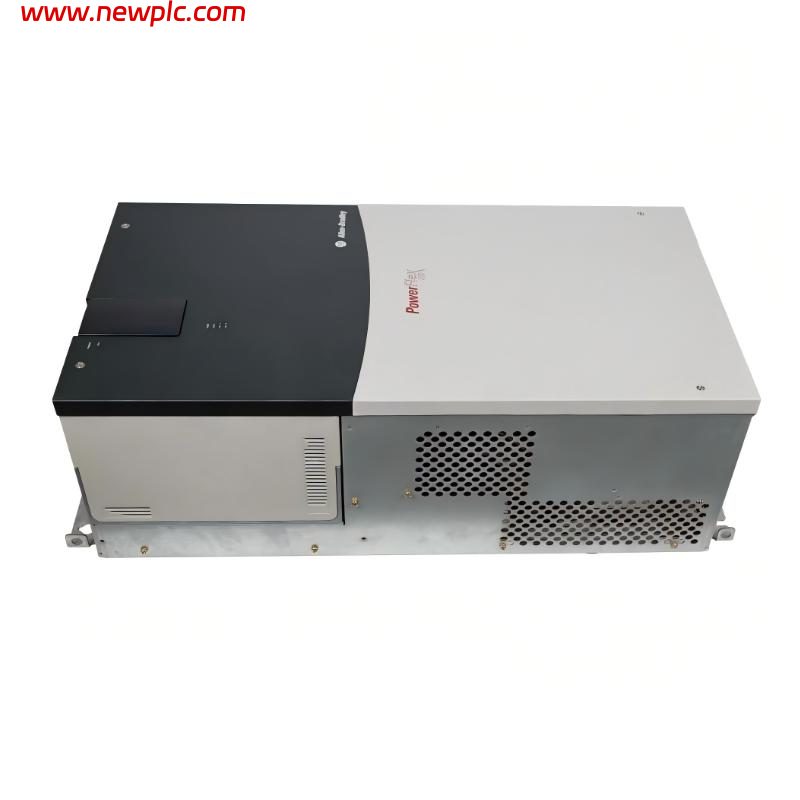

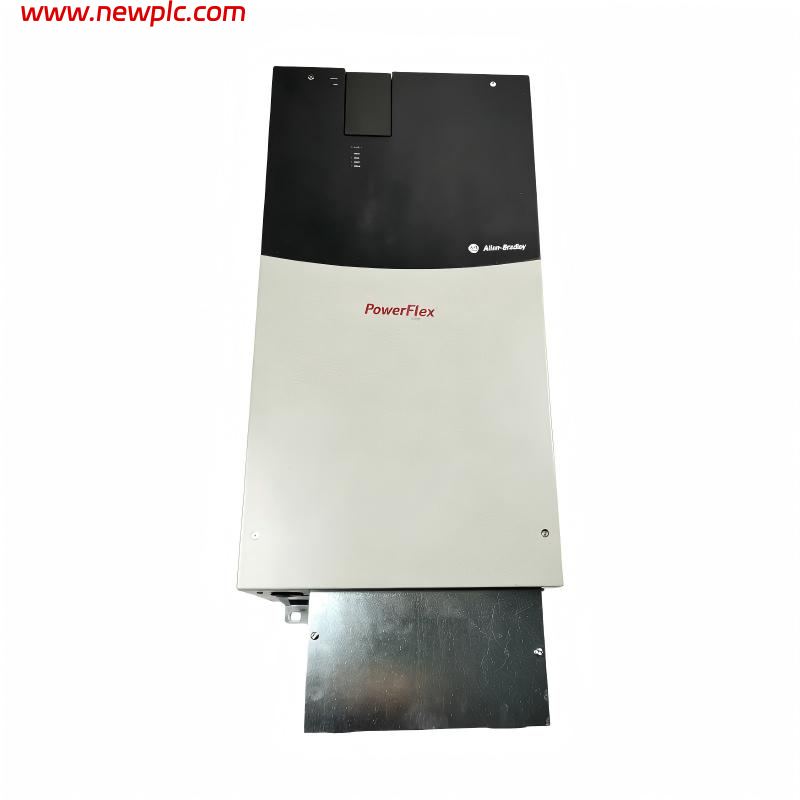

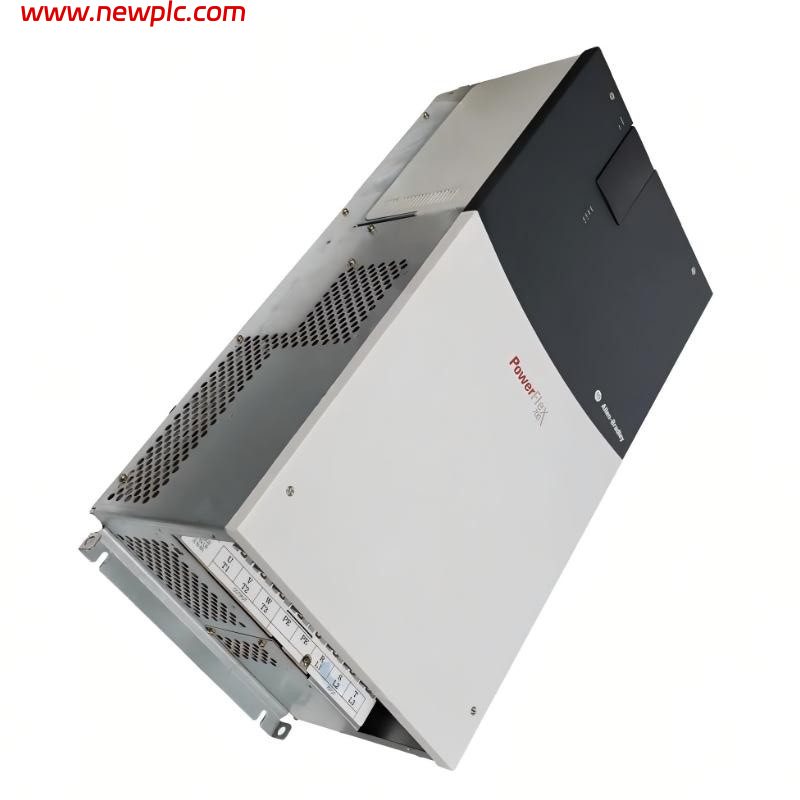

Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model |
|
|
Brand |
Allen-Bradley / Rockwell Automation |
|
Product Type |
Variable Frequency AC Drive |
|
Series |
PowerFlex 700 |
|
Input Voltage |
480 VAC |
|
Input Phase |
3-phase |
|
Input Frequency |
60 Hz |
|
Rated Input Current |
147 A |
|
Input Power |
122 kVA |
|
Output Voltage |
0–460 VAC |
|
Continuous Output Current |
156 A, normal duty |
|
Heavy-Duty Output Current |
188 A for 1 minute; 250 A for 3 seconds |
|
Motor Power Rating |
125 HP, normal duty |
|
Control Method |
Sensorless Vector, Vector Control, V/Hz |
|
Control I/O |
24 V DC I/O |
|
Analog Inputs |
2 |
|
Analog Outputs |
2 |
|
Digital Inputs |
6 |
|
Digital Outputs |
3 |
|
Feedback Option |
Standard incremental encoder |
|
Internal Communication Module |
None |
|
EMC Filter |
Included, with common-mode choke |
|
Brake IGBT |
Not included |
|
Internal Brake Resistor |
Not included |
|
Carrier Frequency |
2, 4, 8, or 10 kHz; rating based on 4 kHz |
|
Maximum Output Frequency |
420 Hz |
|
Efficiency |
Approximately 97.5% |
|
Enclosure Rating |
IP20 / NEMA/UL Type 1 |
|
Operating Temperature |
0–50°C for applicable Frame 5–6 ratings |
|
Relative Humidity |
5–95%, non-condensing |
|
Dimensions (H × W × D) |
1828.8 × 711.3 × 487.8 mm — IP54/NEMA Type 12 standalone cabinet configuration |
|
Weight |
229.07 kg — published weight including packaging for the IP54 standalone configuration; bare IP20 drive weight not confirmed |
|
Lifecycle Status |
Discontinued by Rockwell Automation on June 1, 2023 |
FAQ
FAQ
Q1: What is the 20BD156A3ANNANC1?
A: It is an Allen-Bradley PowerFlex 700 AC drive designed for industrial motor speed and torque control.
Q2: What is its input voltage?
A: 480 VAC, three-phase, 60 Hz.
Q3: What is its rated output current?
A: 156 A continuous under normal-duty conditions.
Q4: What is its motor power rating?
A: 125 HP under normal-duty conditions.
Q5: Does this model support encoder feedback?
A: Yes. The catalog listing specifies standard incremental encoder feedback.
Q6: Does it have a built-in communication module?
A: No internal communication module is included in this configuration.
Q7: What are its dimensions and weight?
A: The published IP54 standalone cabinet dimensions are 1828.8 × 711.3 × 487.8 mm, with a listed weight of 229.07 kg including packaging. The bare IP20 unit’s weight has not been independently confirmed.
Q8: Is this drive still manufactured?
A: Rockwell Automation lists the PowerFlex 700 20B series as discontinued effective June 1, 2023. Check with the manufacturer or an industrial automation supplier for remaining stock and suitable replacement options.
