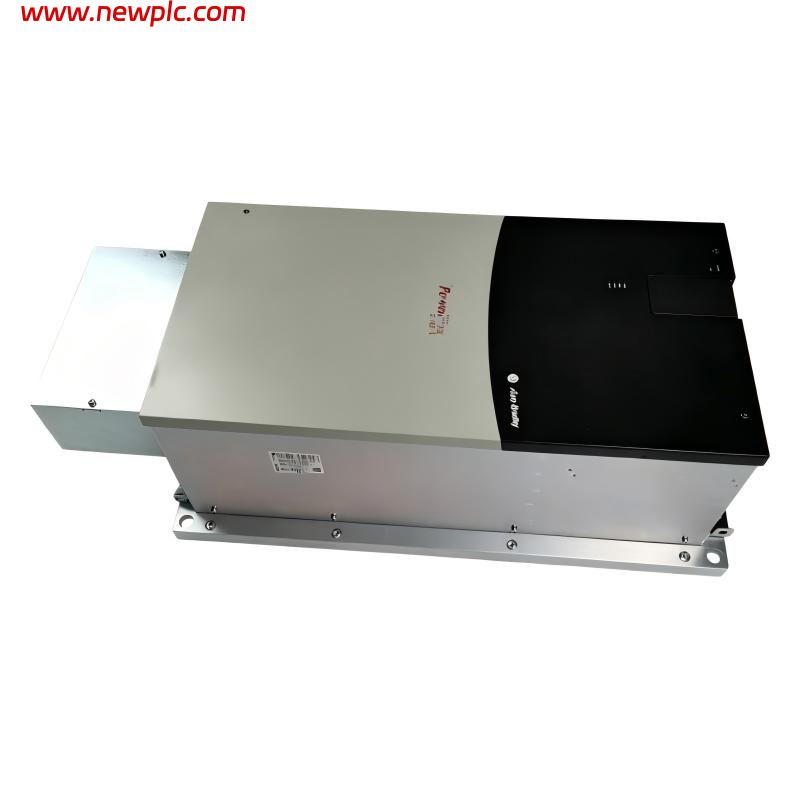

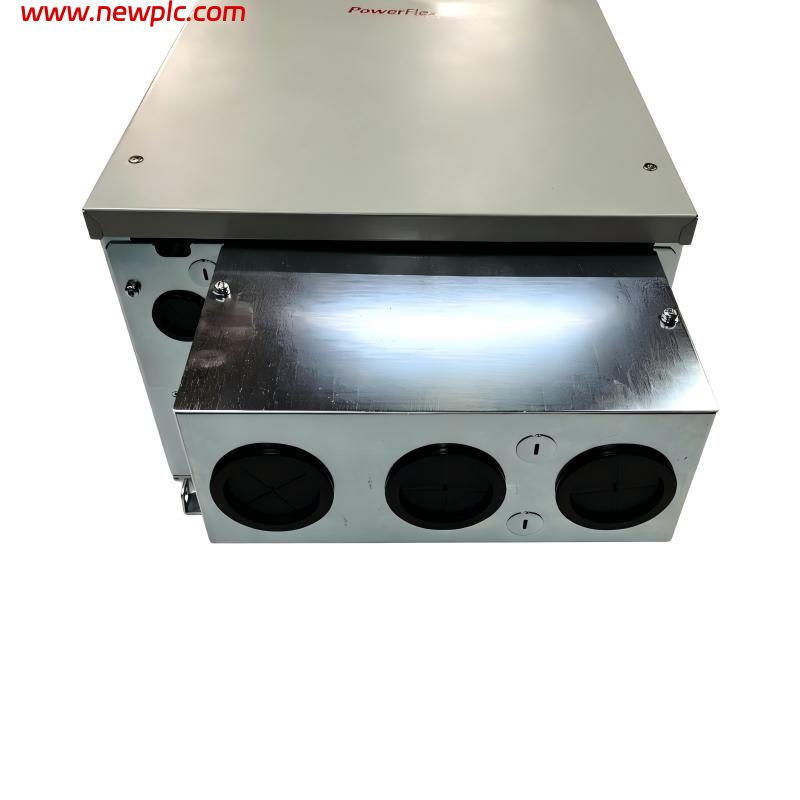

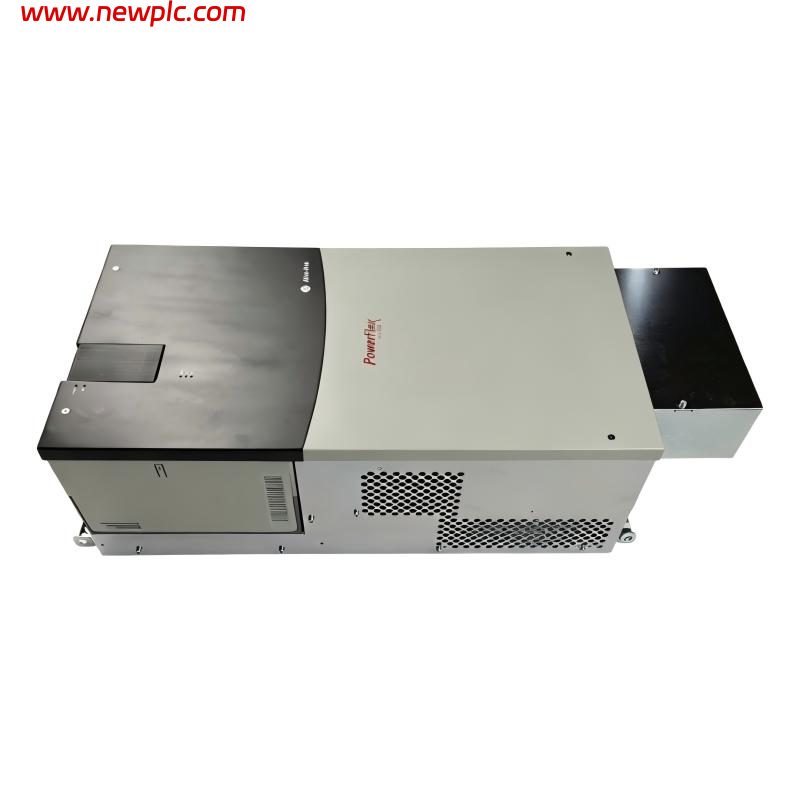

Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Brand |
Allen-Bradley / Rockwell Automation |
|
Model |
|
|
Product Series |
PowerFlex 700 |
|
Product Type |
Variable Frequency AC Drive |
|
Input Voltage |
480 VAC |
|
Input Phase |
3-phase |
|
Input Frequency |
60 Hz |
|
Rated Input Current |
147 A |
|
Input Power |
122 kVA |
|
Output Voltage |
0–460 VAC |
|
Continuous Output Current |
156 A, normal duty |
|
Heavy-Duty Output Current |
188 A for 1 minute; 250 A for 3 seconds |
|
Motor Power Rating |
125 HP, normal duty |
|
Control Method |
Sensorless Vector, Vector Control, V/Hz |
|
Control I/O |
120 V AC I/O configuration; verify against the unit nameplate |
|
Analog Inputs |
2 |
|
Analog Outputs |
2 |
|
Digital Inputs |
6 |
|
Digital Outputs |
3 |
|
Feedback Option |
No feedback option listed |
|
Internal Communication Module |
None listed |
|
Filter |
EMC filter with common-mode choke |
|
Brake IGBT |
Not included |
|
Internal Brake Resistor |
Not included |
|
Carrier Frequency |
2, 4, 8, or 10 kHz; rated at 4 kHz |
|
Output Frequency Range |
Standard control: 0–400 Hz; vector control: up to 420 Hz |
|
Efficiency |
Approximately 97.5% |
|
Enclosure Rating |
IP20 / NEMA/UL Type 1 |
|
Operating Temperature |
0–50°C for applicable Frame 5–6 ratings |
|
Relative Humidity |
5–95%, non-condensing |
|
Dimensions (H × W × D) |
850 × 403.9 × 275.5 mm, with mounting hardware |
|
Net Weight |
Approximately 71.44 kg |
|
Shipping Weight |
Approximately 100.9 kg |
|
Lifecycle Status |
Discontinued; verify availability with suppliers |
FAQ
FAQ
Q1: What is the 20BD156A3ANNAND0?
A: It is an Allen-Bradley PowerFlex 700 variable frequency drive used to control industrial AC motor speed and torque.
Q2: What is its rated input voltage?
A: 480 VAC, three-phase, 60 Hz.
Q3: What is its rated output current?
A: 156 A continuous under normal-duty conditions.
Q4: What is its motor power rating?
A: 125 HP under normal-duty conditions.
Q5: Does it include an internal braking resistor?
A: No. The related PowerFlex 700 configuration does not include an internal brake resistor or brake IGBT.
Q6: Does it have a built-in communication module?
A: No internal communication module is listed for this configuration.
Q7: What are its dimensions and weight?
A: Approximately 850 × 403.9 × 275.5 mm with mounting hardware. Net drive weight is approximately 71.44 kg, with an estimated shipping weight of 100.9 kg.
Q8: Is this drive still available new?
A: The PowerFlex 700 20B series was discontinued by Rockwell Automation effective June 1, 2023. Remaining stock, refurbished units, and repair services may be available through industrial automation suppliers.
