Technical Specifications
|
Parameter |
Details |
|---|---|
|
Brand |
Allen-Bradley |
|
Product Model |
|
|
Product Series |
PowerFlex 700 |
|
Product Type |
Adjustable Frequency AC Drive |
|
Input Voltage |
480V AC |
|
Input Phase |
3-phase |
|
Input Frequency |
60 Hz |
|
Rated Output Current |
180 A |
|
Normal-Duty Power Rating |
150 HP (112 kW) |
|
Heavy-Duty Power Rating |
125 HP |
|
Control Method |
Vector Control |
|
I/O Voltage |
115V AC |
|
Enclosure Rating |
IP20 / NEMA/UL Type 1 |
|
Frame Size |
Frame 6 |
|
Human Interface Module |
No HIM; blank plate |
|
Internal Brake IGBT |
Not included |
|
Internal Brake Resistor |
Not included |
|
Communication Module |
Not included |
|
Feedback Option |
No feedback |
|
EMC Filter |
Second-environment filter with common-mode choke |
|
Conformal Coating |
Included |
|
Carrier Frequency |
2, 4, 8, or 10 kHz; drive rating based on 4 kHz |
|
Approximate Dimensions (H × W × D) |
850 × 403.9 × 275.5 mm (33.46 × 15.90 × 10.85 in) |
|
Approximate Net Weight |
71.44 kg (157.5 lb) |
|
Approximate Shipping Weight |
100.9 kg (222 lb) |
|
Product Lifecycle |
Discontinued |
|
Typical Applications |
Industrial motor speed control, conveyors, pumps, fans and production machinery |
FAQ
FAQ

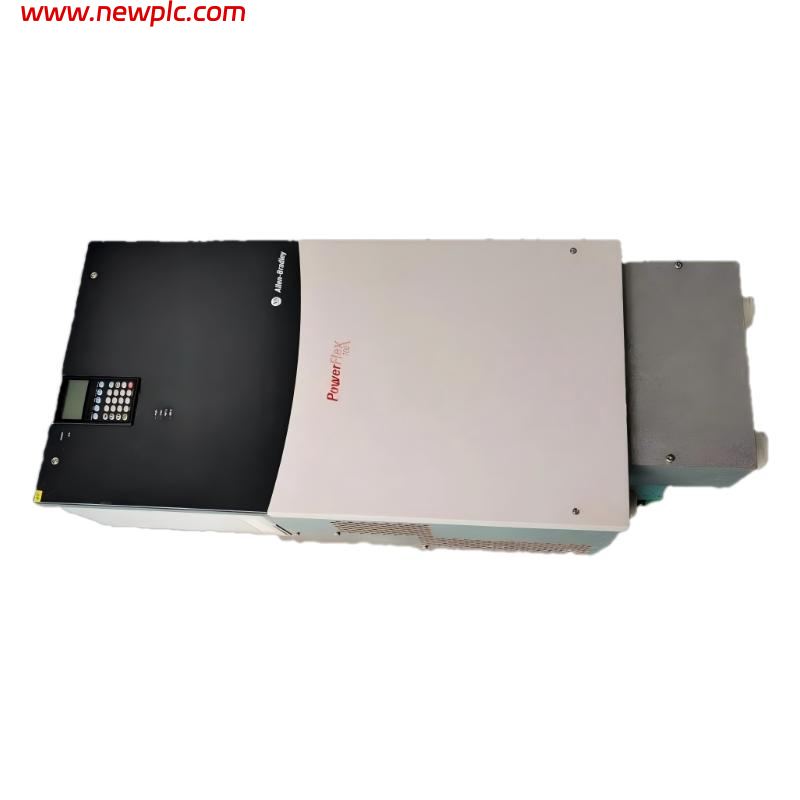

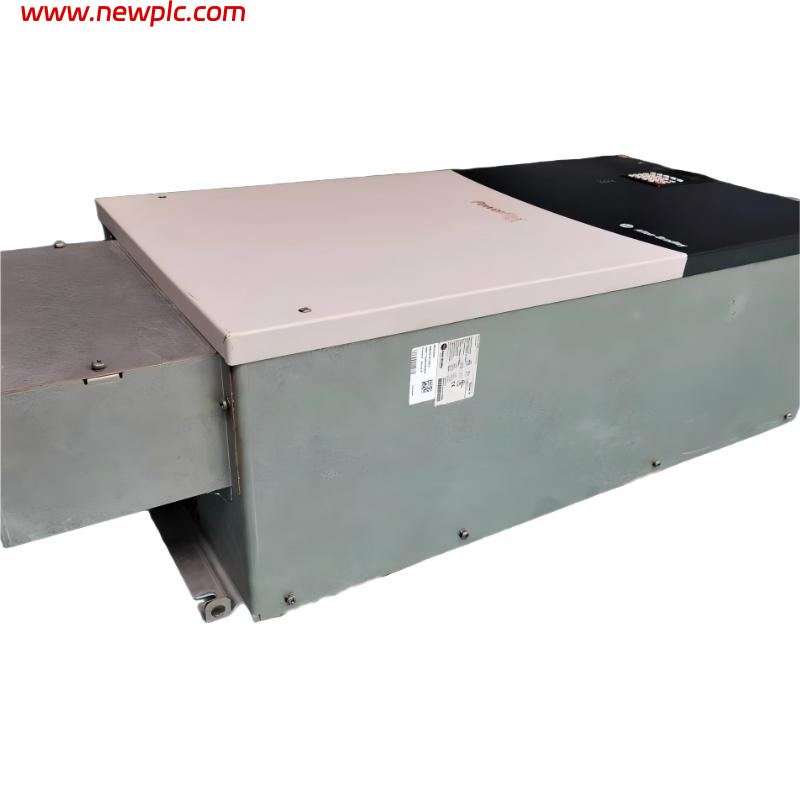

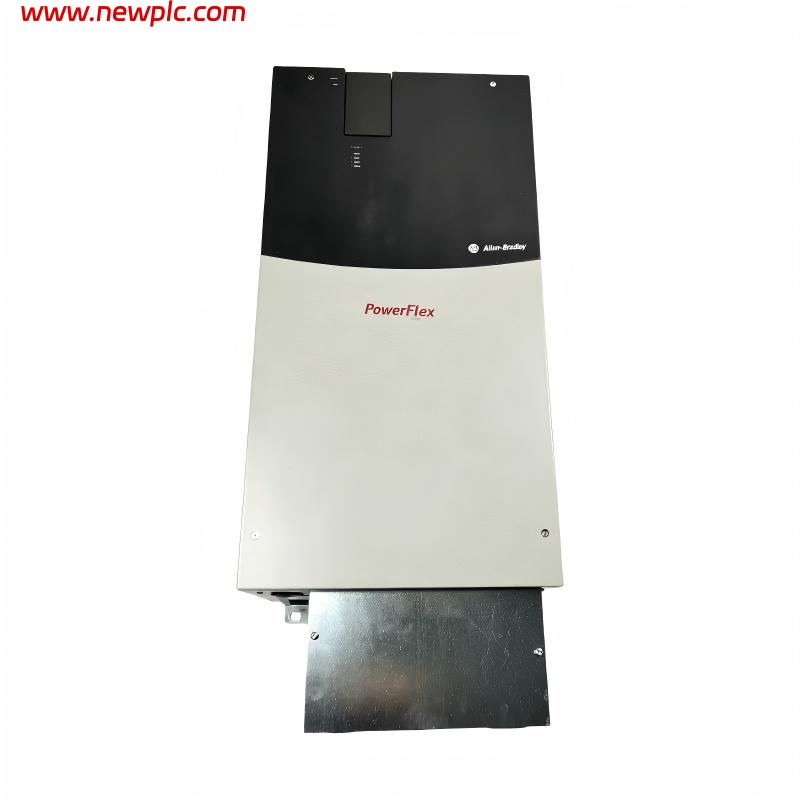

Q1: What is the Allen-Bradley 20BD180A0ANNAND0?
A: The 20BD180A0ANNAND0 is a PowerFlex 700 adjustable frequency AC drive designed for controlling the speed and operation of three-phase industrial motors.
Q2: What is the rated voltage and current of this drive?
A: It operates on a 480V AC, three-phase supply and has a rated output current of 180 A.
Q3: What is the power rating of the 20BD180A0ANNAND0?
A: The drive is rated for 150 HP (112 kW) in normal-duty applications and 125 HP in heavy-duty applications. The appropriate rating depends on the motor and load requirements.
Q4: What are the dimensions and weight of this model?
A: The approximate dimensions are 850 × 403.9 × 275.5 mm (H × W × D), and the net weight is approximately 71.44 kg. The estimated shipping weight, including packaging, is 100.9 kg.
Q5: Does this drive include a braking resistor?
A: No. This model does not include an internal braking resistor or brake IGBT. An external braking solution may be needed for applications requiring rapid deceleration.
Q6: Does the 20BD180A0ANNAND0 include a communication module?
A: No. The specified configuration does not include an internal communication module. Additional compatible communication hardware may be required to integrate the drive with an industrial control network.
Q7: What type of control does this drive support?
A: It uses vector control and supports variable-speed motor operation. Proper parameter configuration and motor tuning are important for achieving the required performance.
Q8: Is the Allen-Bradley 20BD180A0ANNAND0 still available?
A: The PowerFlex 700 series was discontinued effective November 30, 2023. This model may still be available through surplus inventory, refurbished equipment suppliers or industrial automation parts dealers. Confirm the full catalog number and product condition before purchasing.
