Technical Specifications
|
Parameter |
Details |
|---|---|
|
Brand |
Allen-Bradley |
|
Model |
|
|
Product Series |
PowerFlex 700 |
|
Product Type |
Adjustable Frequency AC Drive |
|
Input Voltage |
480V AC |
|
Input Phase |
Three-phase |
|
Input Frequency |
50/60 Hz, subject to configuration |
|
Rated Output Current |
180 A class |
|
Normal-Duty Power Rating |
150 HP (112 kW), corresponding drive rating |
|
Heavy-Duty Power Rating |
125 HP, corresponding drive rating |
|
Control Method |
Vector control |
|
Enclosure |
IP20, NEMA/UL Type 1 |
|
Frame Size |
Frame 6 |
|
PWM Frequency |
4 kHz at 480V AC |
|
Internal Braking IGBT |
Not included in the standard referenced configuration |
|
Internal Braking Resistor |
Not included |
|
Communication Option |
Verify installed options on the unit |
|
Dimensions (H × W × D) |
Approx. 850 × 403.9 × 275.5 mm (33.46 × 15.90 × 10.85 in) |
|
Net Weight |
Approx. 71.44 kg (157.5 lb) |
|
Shipping Weight |
Approx. 100.9 kg (222 lb), including packaging |
|
Product Status |
Discontinued |
|
Typical Applications |
Conveyors, pumps, fans and industrial motor-speed control |
FAQ
FAQ

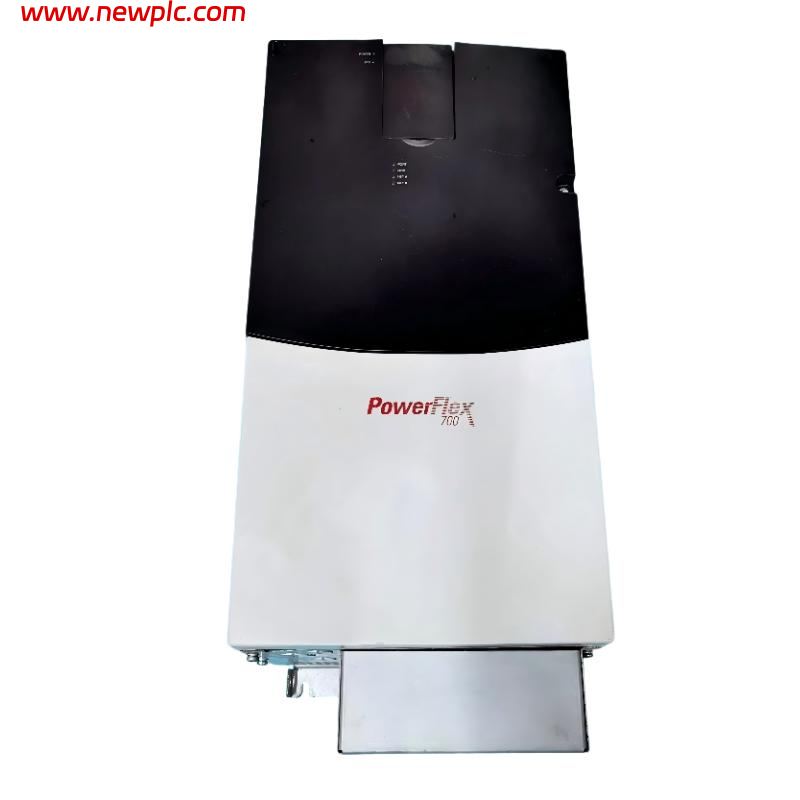

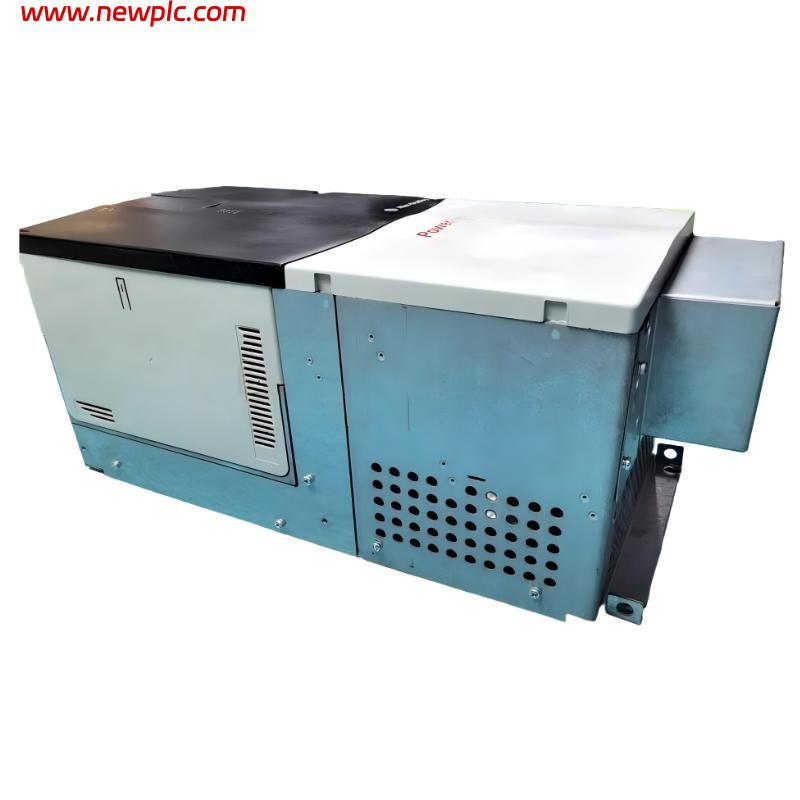

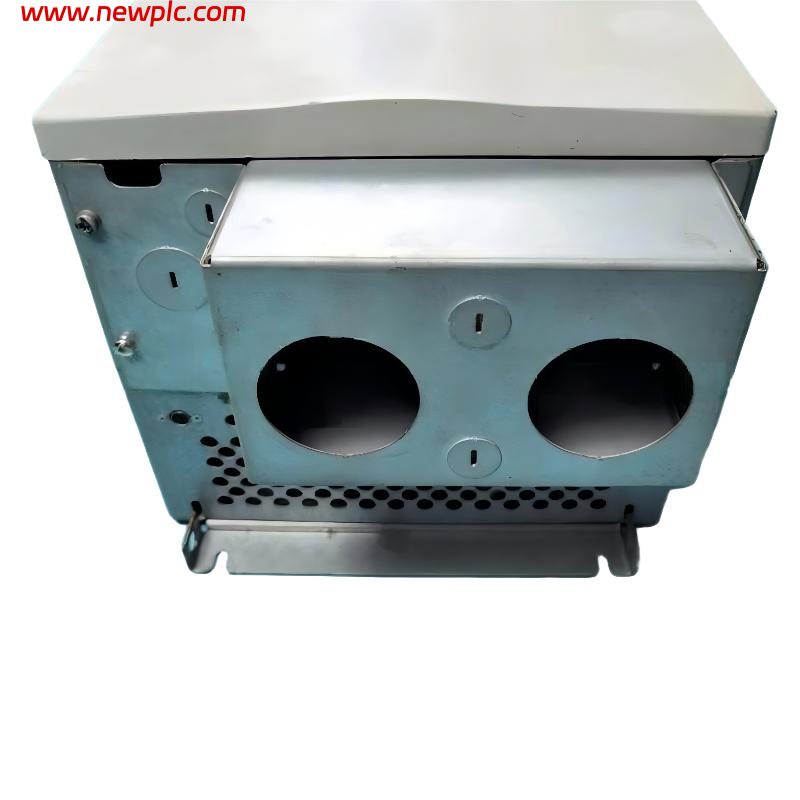

Q1: What is the Allen-Bradley 20BD180A3ANNACC0?
A: The 20BD180A3ANNACC0 is an Allen-Bradley PowerFlex 700 AC drive designed to control the speed and operation of three-phase industrial motors.
Q2: What is the input voltage of this drive?
A: This model belongs to the 480V AC, three-phase drive family. Verify the nameplate and electrical requirements before connecting it to a power supply.
Q3: What is the power rating of the 20BD180A3ANNACC0?
A: The corresponding 180 A drive configuration is rated at 150 HP (112 kW) for normal-duty operation and 125 HP for heavy-duty operation. The final selection should match the motor and application load.
Q4: What are the dimensions and weight of this model?
A: The reference dimensions are approximately 850 × 403.9 × 275.5 mm, and the net weight is approximately 71.44 kg. The estimated shipping weight is 100.9 kg, including packaging. Confirm these figures for the exact unit before installation.
Q5: What enclosure type does the drive use?
A: The corresponding configuration uses an IP20, NEMA/UL Type 1 enclosure. It is intended for suitable industrial installation environments and requires appropriate protection against dust, moisture and other environmental hazards.
Q6: Can this drive control pumps and conveyor systems?
A: Yes. The PowerFlex 700 series is designed for variable-speed motor applications, including pumps, fans, conveyors and general industrial machinery. Drive sizing and control settings must match the application requirements.
Q7: Does the 20BD180A3ANNACC0 include built-in braking components?
A: The standard referenced configuration does not include an internal braking resistor or braking IGBT. Applications requiring rapid deceleration may need an external braking solution, subject to drive compatibility.
Q8: Is the 20BD180A3ANNACC0 still available for purchase?
A: The model is listed as discontinued. Remaining new-old-stock units, refurbished drives and replacement options may be available through industrial automation suppliers. Check the complete catalog number, condition, warranty and compatibility before purchasing.
