Technical Specifications
|
Parameter |
Details |
|---|---|
|
Brand |
Allen-Bradley |
|
Model |
|
|
Product Series |
PowerFlex 700 |
|
Product Type |
Adjustable Frequency AC Drive |
|
Input Voltage |
480V AC |
|
Input Phase |
3-phase |
|
Input Frequency |
60 Hz |
|
Rated Output Current |
180 A |
|
Normal-Duty Power Rating |
150 HP (112 kW) |
|
Heavy-Duty Power Rating |
125 HP, subject to applicable drive rating |
|
Control Method |
Vector control |
|
Enclosure Rating |
IP20, NEMA/UL Type 1 |
|
Frame Size |
Frame 6 |
|
PWM Frequency |
4 kHz at 480V AC |
|
Human Interface Module |
Blank cover; no HIM |
|
Internal Braking IGBT |
Not included |
|
Internal Braking Resistor |
Not included |
|
Internal Communication Module |
No internal communication module specified |
|
Feedback Option |
No feedback |
|
Approximate Dimensions (H × W × D) |
850 × 403.9 × 275.5 mm (33.46 × 15.90 × 10.85 in) |
|
Approximate Net Weight |
71.44 kg (157.5 lb) |
|
Approximate Shipping Weight |
100.9 kg (222 lb), including packaging |
|
Product Status |
Discontinued |
|
Typical Applications |
Conveyors, pumps, fans and industrial motor-speed control |
FAQ
FAQ

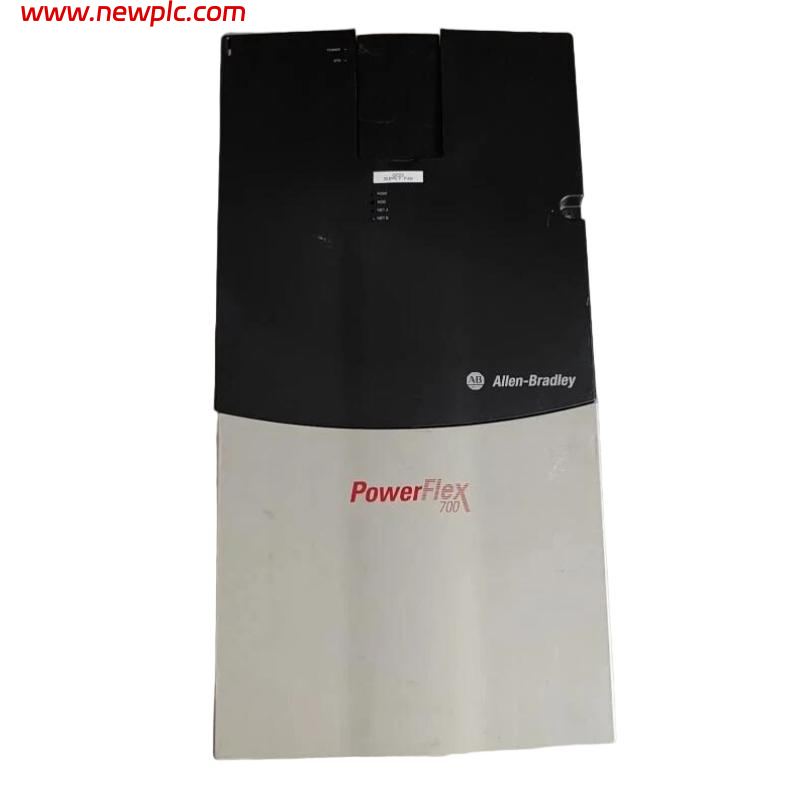

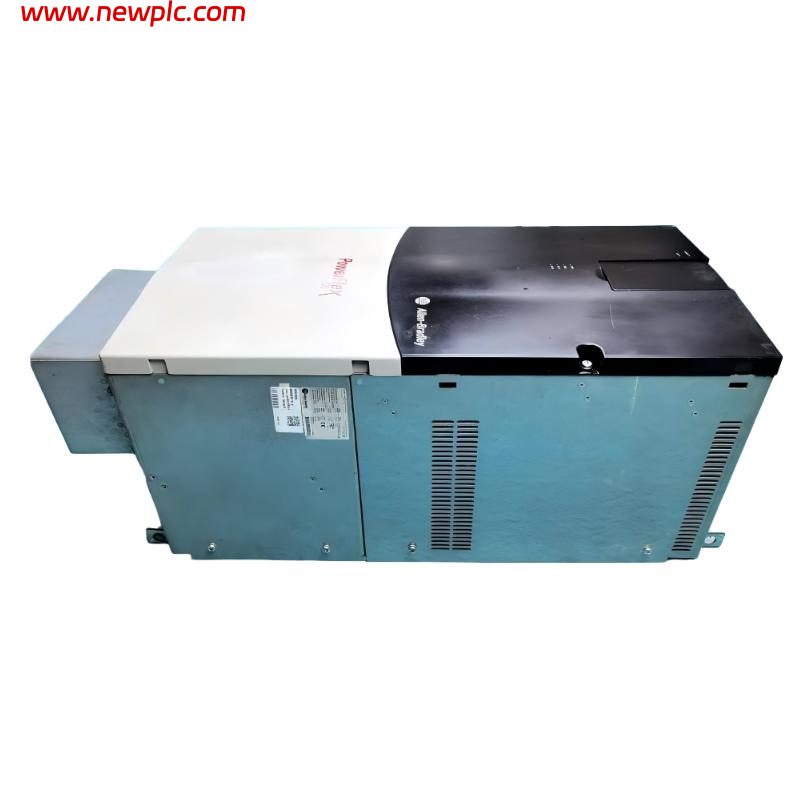

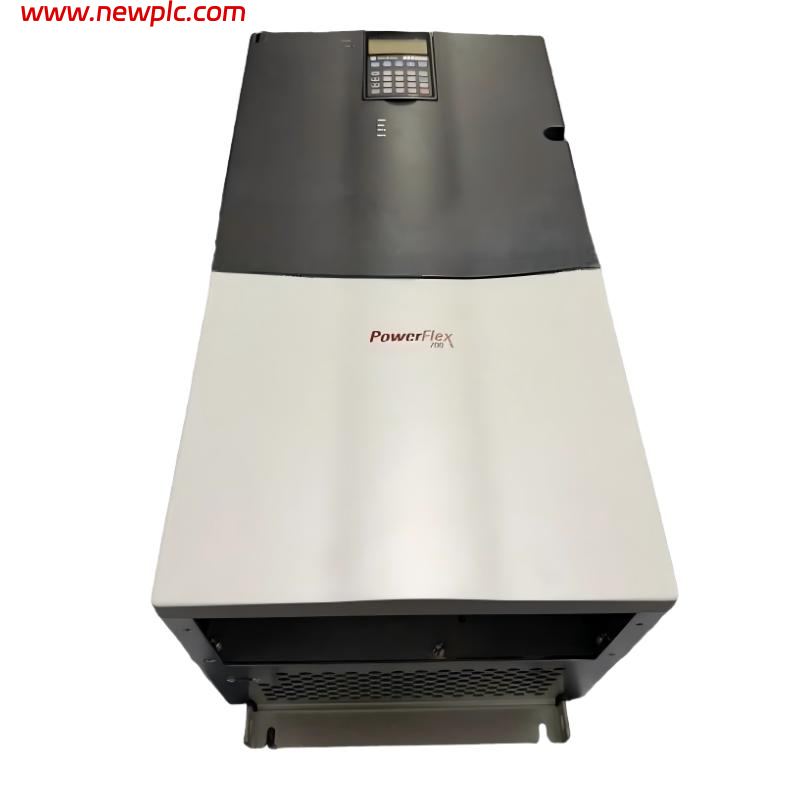

Q1: What is the Allen-Bradley 20BD180A3ANNANC0?
A: The 20BD180A3ANNANC0 is a PowerFlex 700 variable frequency AC drive designed for controlling the speed and operation of industrial AC motors.
Q2: What is the input voltage of this drive?
A: This model belongs to the 480V AC, three-phase drive family. The actual supply requirements should be checked against the product nameplate before installation.
Q3: What is the rated power of the 20BD180A3ANNANC0?
A: The corresponding 180 A PowerFlex 700 configuration supports approximately 150 HP (112 kW) in normal-duty applications. The appropriate rating depends on the motor, load profile and operating conditions.
Q4: What are the dimensions and weight of this model?
A: Reference dimensions are approximately 850 × 403.9 × 275.5 mm (H × W × D). The estimated net weight is 71.44 kg, while the shipping weight is approximately 100.9 kg including packaging. Confirm the exact configuration before planning installation.
Q5: What enclosure rating does this drive have?
A: The corresponding Frame 6 configuration uses an IP20, NEMA/UL Type 1 enclosure. It should be installed in an appropriate industrial environment with suitable protection against moisture and contamination.
Q6: Can the 20BD180A3ANNANC0 be used with conveyor systems and pumps?
A: Yes. The PowerFlex 700 series is suitable for variable-speed applications such as conveyors, pumps, fans and other industrial machinery, provided the drive is correctly sized and configured for the motor.
Q7: What should be checked before replacing this drive?
A: Confirm the complete catalog number, input voltage, output current, control interface, communication options, enclosure rating and mounting dimensions. Matching these details helps prevent electrical and system integration problems.
Q8: Is the Allen-Bradley 20BD180A3ANNANC0 still available?
A: This model is listed as discontinued. Availability may depend on remaining inventory, refurbished equipment and industrial automation suppliers. Check the unit’s condition, warranty and compatibility before purchasing.
