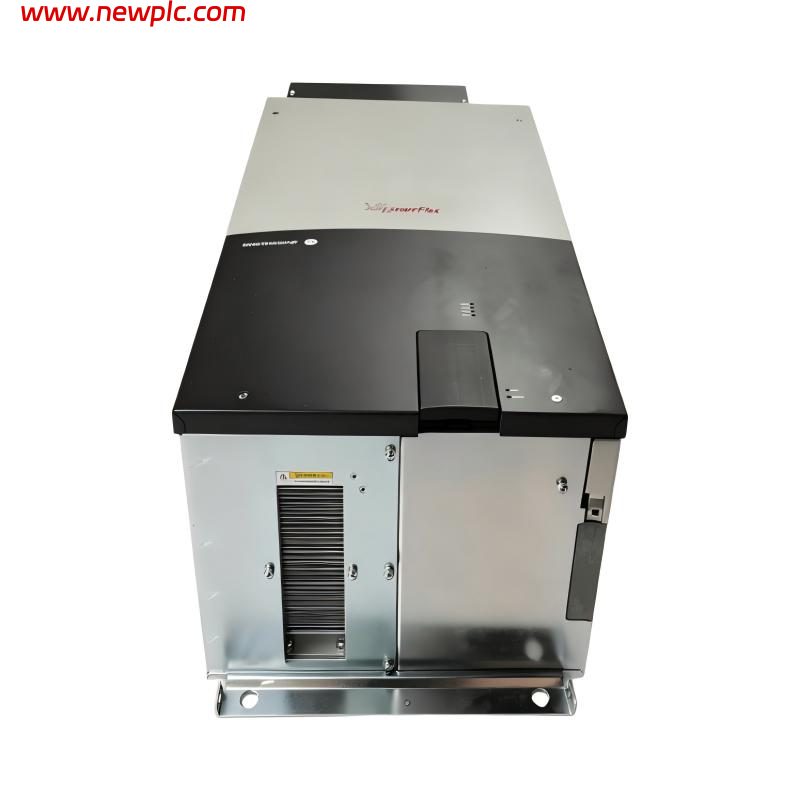

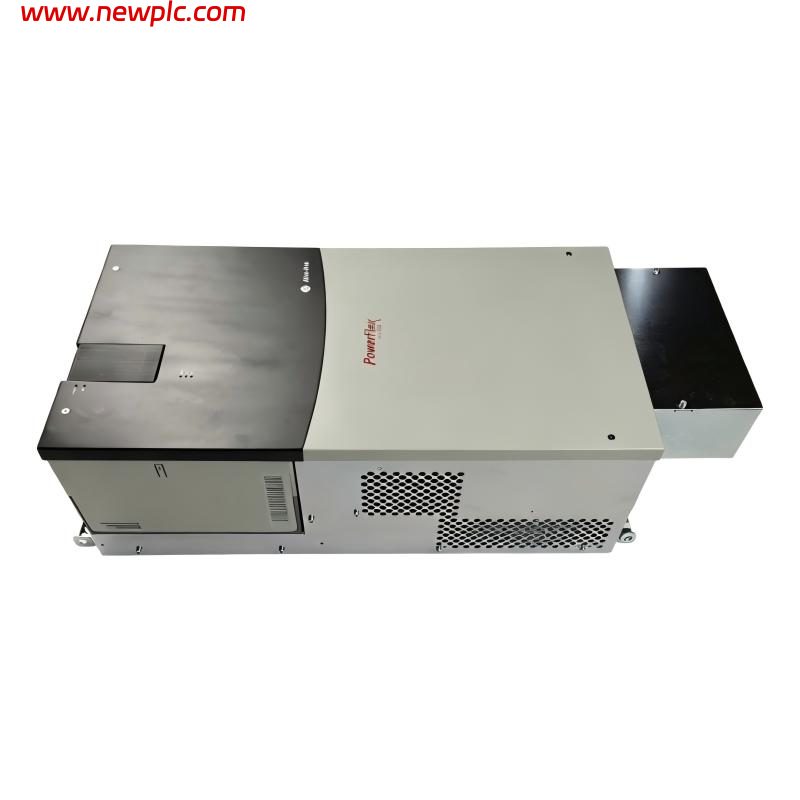

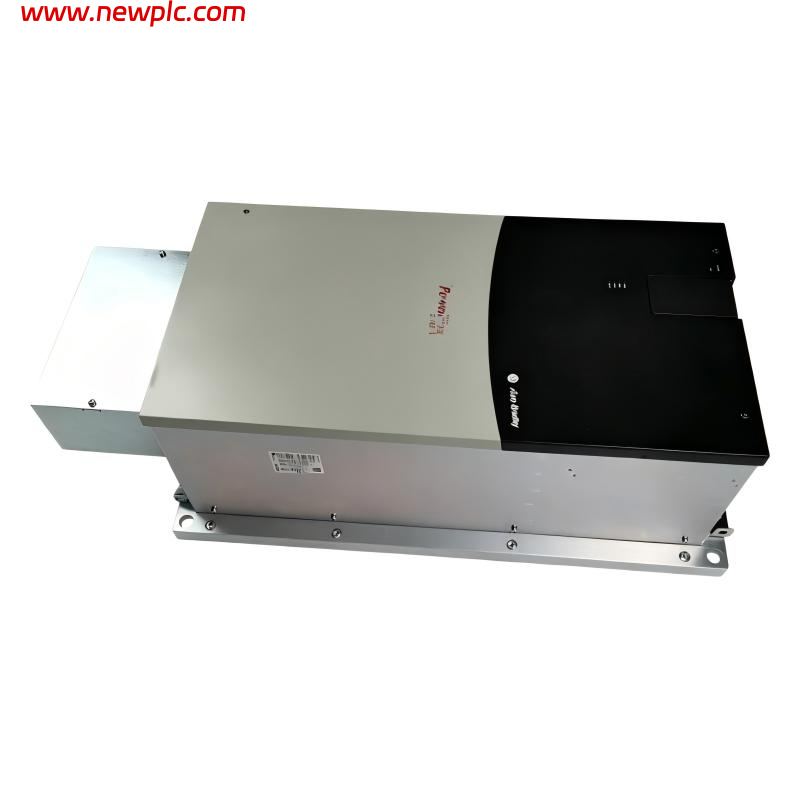

Technical Specifications
|
Parameter |
Details |
|---|---|
|
Brand |
Allen-Bradley |
|
Model |
|
|
Product Series |
PowerFlex 700 |
|
Product Type |
Adjustable Frequency AC Drive |
|
Input Voltage |
480V AC |
|
Input Phase |
3-phase |
|
Input Frequency |
60 Hz |
|
Continuous Output Current |
180 A |
|
Normal-Duty Power Rating |
150 HP (112 kW) |
|
Heavy-Duty Output Current |
234 A for 1 minute; 312 A for 3 seconds |
|
Input Current |
169 A |
|
Input Power Rating |
141 kVA |
|
Output Voltage |
0–460V AC at 480V AC input |
|
Control Method |
Vector control with 24V DC I/O |
|
Feedback Option |
Standard encoder feedback, 12V/5V compatible |
|
Human Interface Module |
Full numeric LCD display with programming keypad |
|
Enclosure Rating |
IP20 / NEMA/UL Type 1 |
|
Frame Size |
Frame 6 |
|
Internal Braking IGBT |
Not included |
|
Internal Braking Resistor |
Not included |
|
Communication Module |
No internal communication module |
|
Internal EMC Filter |
EMC filter with common-mode choke |
|
Carrier Frequency |
2, 4, 8, or 10 kHz; rating based on 4 kHz |
|
Maximum Output Frequency |
420 Hz |
|
Typical Efficiency |
97.5% at rated current and nominal line voltage |
|
Approximate Dimensions (H × W × D) |
850 × 403.9 × 275.5 mm (33.46 × 15.90 × 10.85 in) |
|
Approximate Net Weight |
71.44 kg (157.5 lb) |
|
Approximate Shipping Weight |
100.9 kg (222 lb), including packaging |
|
Product Lifecycle |
Discontinued |
|
Typical Applications |
Conveyors, pumps, fans and industrial motor-speed control |
FAQ
FAQ
Q1: What is the Allen-Bradley 20BD180A3ANNANC1?
A: The 20BD180A3ANNANC1 is a PowerFlex 700 adjustable frequency AC drive designed for variable-speed control of industrial AC motors.
Q2: What are the voltage and current ratings of this drive?
A: It operates with a 480V AC, three-phase supply and provides a continuous output current rating of 180 A under normal-duty conditions.
Q3: What is the power rating of the 20BD180A3ANNANC1?
A: The drive has a normal-duty power rating of 150 HP (112 kW). The applicable motor rating should be selected according to the load characteristics and operating requirements.
Q4: What are the dimensions and weight of this model?
A: The approximate dimensions are 850 × 403.9 × 275.5 mm (H × W × D). The net drive weight is approximately 71.44 kg, and the estimated shipping weight is 100.9 kg, including packaging.
Q5: Does this model include an LCD display and keypad?
A: Yes. This configuration includes a full numeric LCD display and programming keypad for drive setup, parameter adjustment and operational monitoring.
Q6: Does the drive support encoder feedback?
A: Yes. The specified configuration includes standard encoder feedback, supporting closed-loop motor control when used with a compatible encoder and correctly configured control parameters.
Q7: Does the 20BD180A3ANNANC1 have a built-in braking resistor?
A: No. This model does not include an internal braking resistor or braking IGBT. An external braking solution may be needed when the application requires rapid deceleration or controlled dissipation of regenerative energy.
Q8: Is the Allen-Bradley 20BD180A3ANNANC1 still available?
A: Rockwell Automation lists this model as discontinued, effective June 1, 2023. It may still be obtainable through remaining inventory, refurbished equipment suppliers or industrial automation parts dealers. Verify the model number, operating condition and warranty before purchasing.
