Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Manufacturer |
Allen-Bradley |
|
Model |
|
|
Product Type |
PowerFlex 700 AC Drive |
|
Product Family |
PowerFlex 700, 20B |
|
Input Voltage |
480 VAC, 3-phase, 60 Hz |
|
Input Current |
169 A at 480 VAC, 3-phase |
|
Input Power Rating |
141 kVA |
|
Continuous Output Current |
180 A at 480 VAC, 3-phase |
|
Heavy-Duty Output Current |
234 A for 1 minute; 312 A for 3 seconds |
|
Normal-Duty Power Rating |
150 HP |
|
Heavy-Duty Power Rating |
125 HP |
|
Nominal Motor Voltage |
460 VAC |
|
Output Voltage Range |
0 to rated motor voltage |
|
Output Phases |
3-phase |
|
Control Method |
Vector control, sensorless vector control, and programmable V/Hz |
|
Control I/O |
120V AC I/O |
|
Digital Inputs |
6 |
|
Digital Outputs |
3 |
|
Analog Inputs |
2 |
|
Analog Outputs |
2 |
|
Feedback |
No feedback |
|
Communication Module |
None |
|
Human Interface |
LCD display with full numeric keypad and programming keys |
|
Brake IGBT |
Without brake IGBT |
|
Internal Brake Resistor |
None |
|
EMC Filtering |
Second-environment EMC filter with common-mode choke |
|
Enclosure Rating |
IP20 / NEMA/UL Type 1 |
|
Frame Size |
Frame 6 |
|
Conformal Coating |
Yes |
|
Carrier Frequency |
2, 4, 8, and 10 kHz; rating based on 4 kHz |
|
Maximum Output Frequency |
420 Hz |
|
Acceleration/Deceleration |
0–3600 seconds, independently programmable |
|
Current Limit |
20–160% of rated output current |
|
Motor Overload Protection |
Class 10 |
|
Efficiency |
Approximately 97.5% |
|
Power Factor |
Approximately 0.98 |
|
Nominal DC Bus Voltage |
648 VDC at 480 VAC input |
|
DC Bus Overvoltage Trip |
810 VDC |
|
DC Bus Undervoltage |
305 VDC |
|
Power Ride-Through |
15 ms at full load |
|
Maximum Short-Circuit Rating |
200,000 A symmetrical |
|
Speed Regulation |
0.1% of base speed across a 120:1 range without feedback in vector control |
|
Torque Regulation |
±5% without feedback |
|
Stop Modes |
Coast, DC Brake, Fast Brake, Ramp-to-Hold, S-Curve, and other programmable modes |
|
Operating Temperature |
0–50°C |
|
Maximum Altitude |
1000 m without derating |
|
Relative Humidity |
5–95%, noncondensing |
|
Dimensions (H × W × D) |
976.3 × 403.9 × 275.5 mm (38.44 × 15.90 × 10.85 in) |
|
Weight |
71.44 kg (157.5 lb) |
FAQ
FAQ

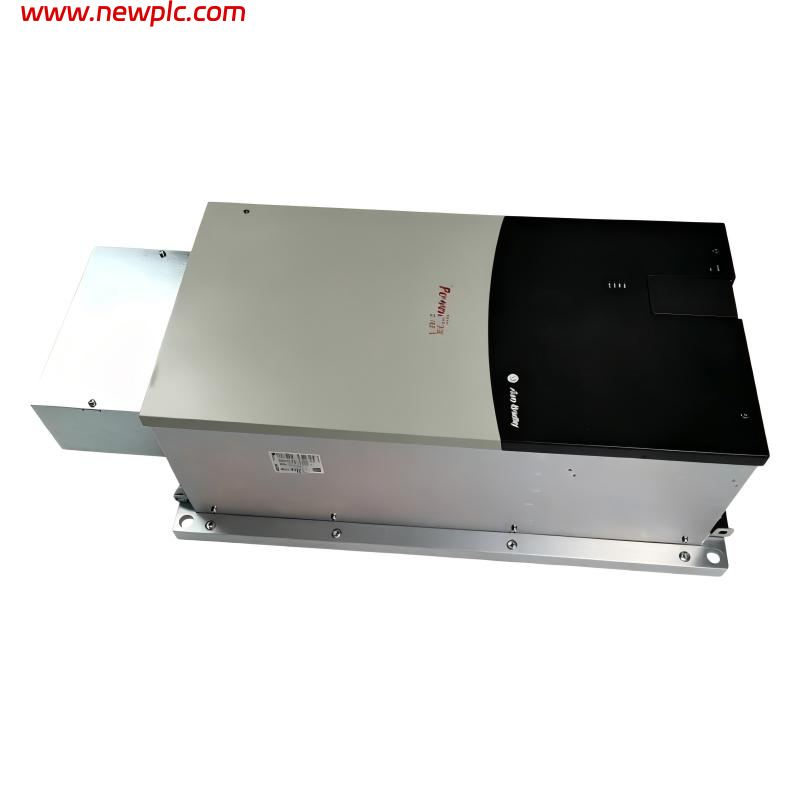

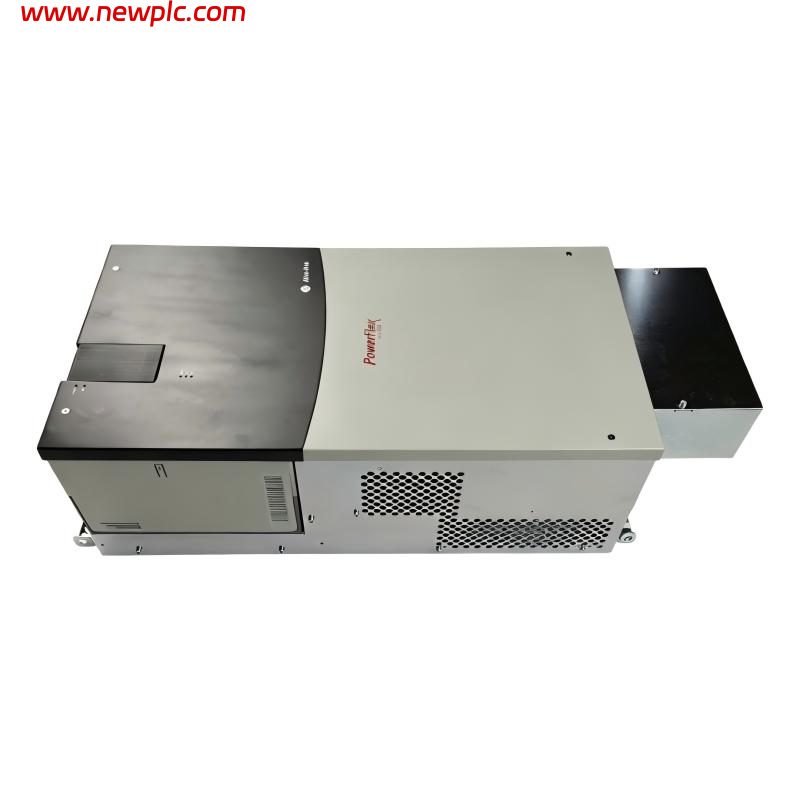

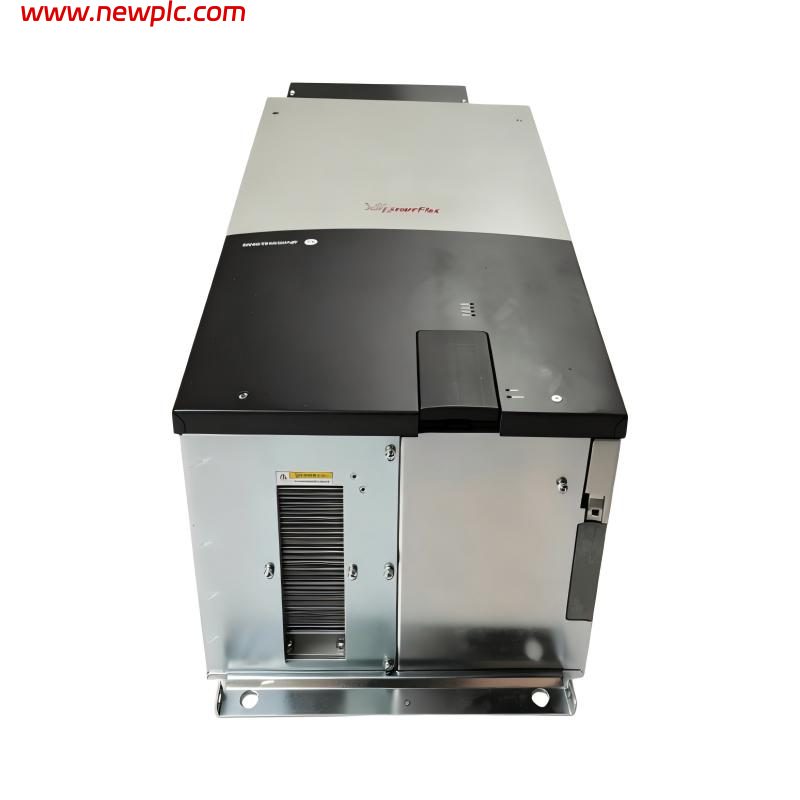

Q1: What is the Allen-Bradley 20BD180A3ANNAND0?
A: The Allen-Bradley 20BD180A3ANNAND0 is a PowerFlex 700 AC drive designed for variable-speed control of three-phase industrial motors. It supports adjustable motor speed and torque for a range of industrial automation applications.
Q2: What are the input voltage and output current ratings?
A: The drive is designed for a 480 VAC, three-phase power supply at 60 Hz. Its continuous output current rating is 180 A, making it suitable for compatible industrial motor loads.
Q3: What motor power ratings does this drive support?
A: The listed ratings are 150 HP for normal-duty applications and 125 HP for heavy-duty applications. The correct rating depends on the motor nameplate, load characteristics, ambient conditions, and drive configuration.
Q4: What are the dimensions and weight of the 20BD180A3ANNAND0?
A: The supplied specifications list dimensions of 976.3 × 403.9 × 275.5 mm (H × W × D) and a weight of 71.44 kg (157.5 lb). Confirm these measurements against the manufacturer’s dimensional drawing before installation.
Q5: What control methods does this PowerFlex 700 drive support?
A: The listed control methods include vector control, sensorless vector control, and programmable V/Hz control. The appropriate method depends on the motor, required speed regulation, and application performance.
Q6: Does the 20BD180A3ANNAND0 include a braking resistor or braking IGBT?
A: No. The specified configuration does not include an internal braking resistor or brake IGBT. Applications requiring rapid deceleration may need compatible external braking equipment.
Q7: What environmental conditions are suitable for this drive?
A: The supplied specifications list an operating temperature range of 0–50°C, a maximum altitude of 1000 m without derating, and relative humidity of 5–95% noncondensing. Adequate ventilation and a suitable installation environment are important for reliable operation.
Q8: What should be checked when replacing this drive?
A: Verify the complete catalog number, voltage and current ratings, motor power, control I/O, feedback requirements, communication options, enclosure rating, mounting dimensions, and braking requirements. Confirming these details helps ensure compatibility with the existing motor and automation system.
