Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Manufacturer |
Allen-Bradley |
|
Product Series |
PowerFlex 700 |
|
Catalog Number |
|
|
Product Type |
Adjustable Frequency Drive |
|
Drive Type |
PowerFlex 700 Type 20B |
|
Input Voltage |
540 V DC |
|
Input Type |
DC bus input with pre-charge |
|
Continuous Output Current |
260 A |
|
Normal Duty Power Rating |
132 kW (approximately 180 HP) |
|
Heavy Duty Power Rating |
110 kW (approximately 150 HP) |
|
Output Phase |
3-phase |
|
Maximum Output Frequency |
Up to 420 Hz, depending on control mode |
|
Control Method |
Vector Control, Sensorless Vector, and V/Hz |
|
Control I/O |
24 V DC I/O |
|
Analog Inputs |
2 |
|
Analog Outputs |
2 |
|
Digital Inputs |
6 |
|
Digital Outputs |
3 |
|
Human Interface Module (HIM) |
Not included; blank plate installed |
|
Communication Option |
Exact option indicated by the |
|
Feedback Option |
No feedback indicated by the base configuration |
|
Brake IGBT |
Not included in the standard configuration |
|
Internal Brake Resistor |
Not included |
|
EMC Filter |
EMC filter with common-mode choke |
|
Enclosure Rating |
IP20 / NEMA/UL Type 1 |
|
Conformal Coating |
Included |
|
Carrier Frequency |
2, 4, 8, and 10 kHz, subject to rating conditions |
|
PWM Frequency |
2 kHz at 540 V DC |
|
Efficiency |
Approximately 97.5% at rated current and nominal voltage |
|
Displacement Power Factor |
Approximately 0.98 |
|
Motor Overload Protection |
Class 10 in vector control mode |
|
Programmable Acceleration/Deceleration |
Two independently programmable times, 0–3600 seconds |
|
Maximum Installation Altitude |
1,000 m (3,300 ft) without derating |
|
Operating Temperature |
0–50°C (32–122°F), subject to operating conditions |
|
Relative Humidity |
5–95%, non-condensing |
|
Frame Size |
Frame 6 |
|
Drive Dimensions (H × W × D) |
Approximately 850 × 403.9 × 275.5 mm (33.46 × 15.90 × 10.85 in); confirm for the exact configuration |
|
Drive Weight |
Approximately 71.44 kg (157.5 lb); reference value |
|
Standalone IP54 / NEMA Type 12 Enclosure Dimensions |
1828.8 × 711.3 × 487.8 mm (H × W × D), if supplied in this enclosure |
|
Standalone Enclosure Weight |
Approximately 229.07 kg (505 lb), including drive and packaging, if applicable |
|
Product Lifecycle |
Discontinued series |
|
Typical Applications |
Industrial motor control, conveyors, pumps, fans, compressors, and process machinery |
FAQ
FAQ

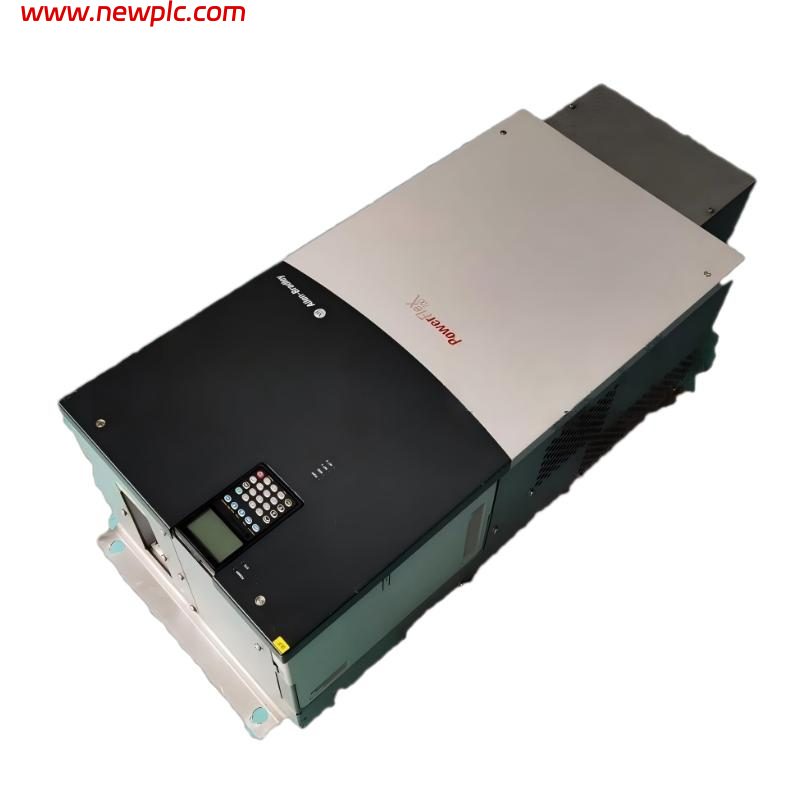

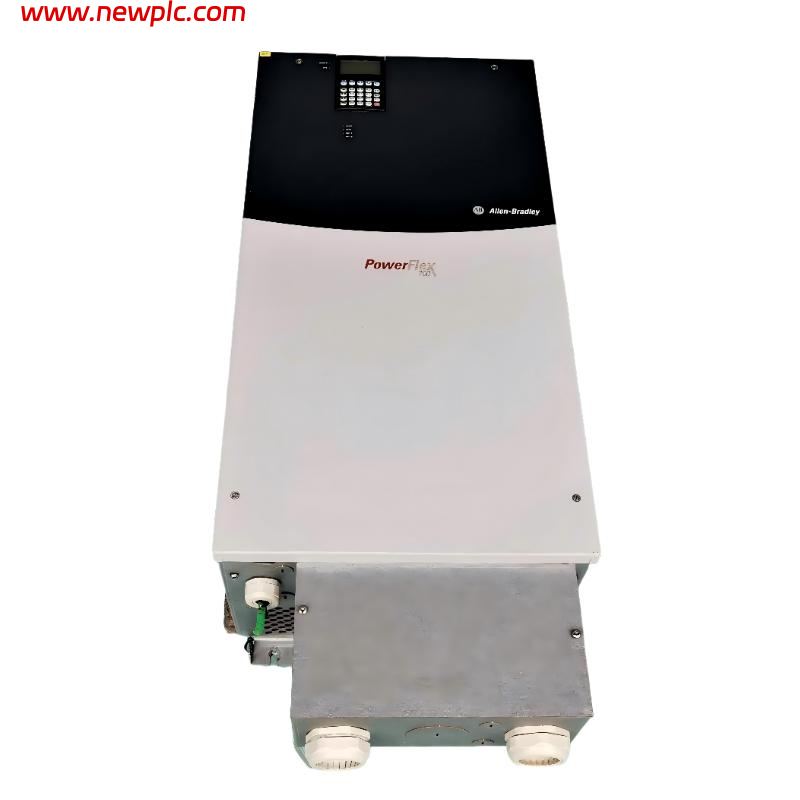

Q1: What is the Allen-Bradley 20BP260F0ANNANC0?
A: The 20BP260F0ANNANC0 is a PowerFlex 700 adjustable frequency drive in the Type 20B family. It is designed for industrial motor speed and torque control and has a nominal 540 V DC bus input and a 260 A output current rating.
Q2: What are the power ratings of this drive?
A: The associated ratings are 132 kW for normal-duty operation and 110 kW for heavy-duty operation. Confirm the exact motor rating and application requirements before installation.
Q3: What input power supply does this model require?
A: This model uses a 540 V DC bus input with pre-charge. The DC source, protection devices, and pre-charge arrangement must comply with the manufacturer’s installation requirements.
Q4: What does the F0 portion of the catalog number mean?
A: The F0 code represents a configuration option within the full catalog number. Its exact meaning should be checked against the PowerFlex 700 catalog-number selection guide rather than inferred from other models.
Q5: Does the drive include a Human Interface Module?
A: The A0 configuration is associated with a blank HIM plate rather than an installed operator interface. A compatible HIM may be needed for convenient local programming and monitoring.
Q6: Does the 20BP260F0ANNANC0 support dynamic braking?
A: The standard configuration does not include a braking IGBT or internal brake resistor. If the application requires dynamic braking, confirm the braking requirements and select compatible external hardware.
Q7: What are the dimensions and weight of this drive?
A: Reference figures for a Frame 6 IP20 drive are approximately 850 × 403.9 × 275.5 mm and 71.44 kg. Verify these figures against the exact model drawing before panel design, lifting, or shipment. Standalone enclosure measurements apply only when that enclosure is part of the supplied assembly.
Q8: What should be checked before replacing or purchasing this drive?
A: Verify the complete catalog number, DC bus requirements, current and power ratings, communication option, feedback configuration, braking requirements, enclosure type, and physical dimensions. The PowerFlex 700 series is discontinued, so confirm availability and compatibility with the supplier before ordering.
