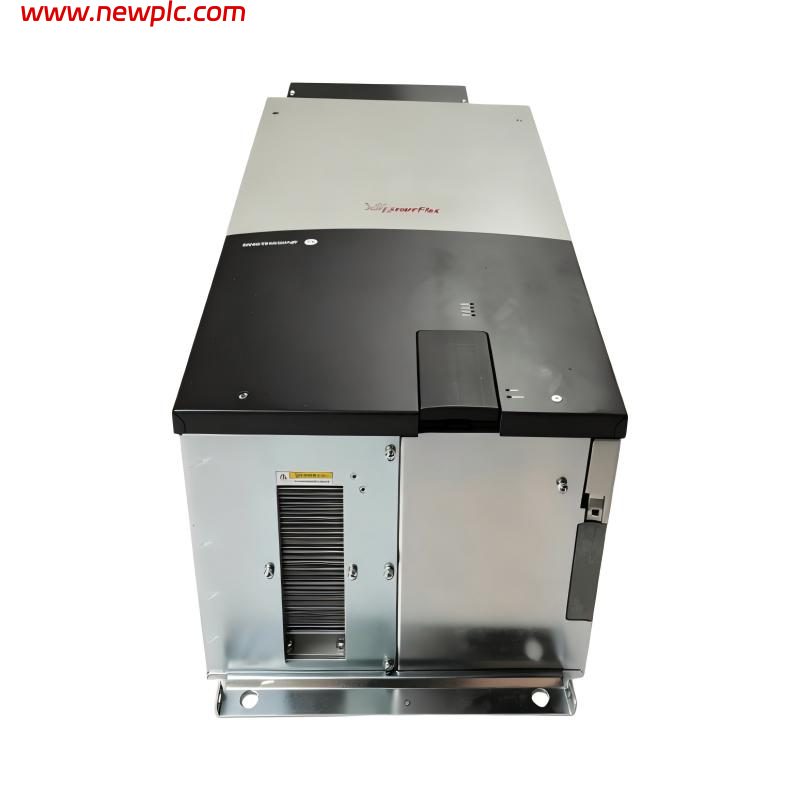

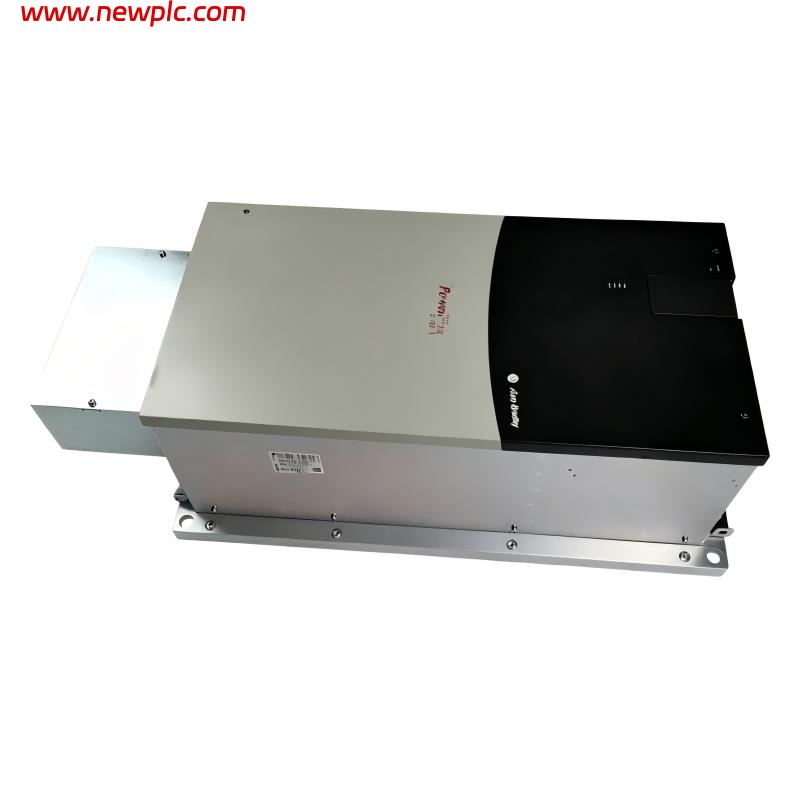

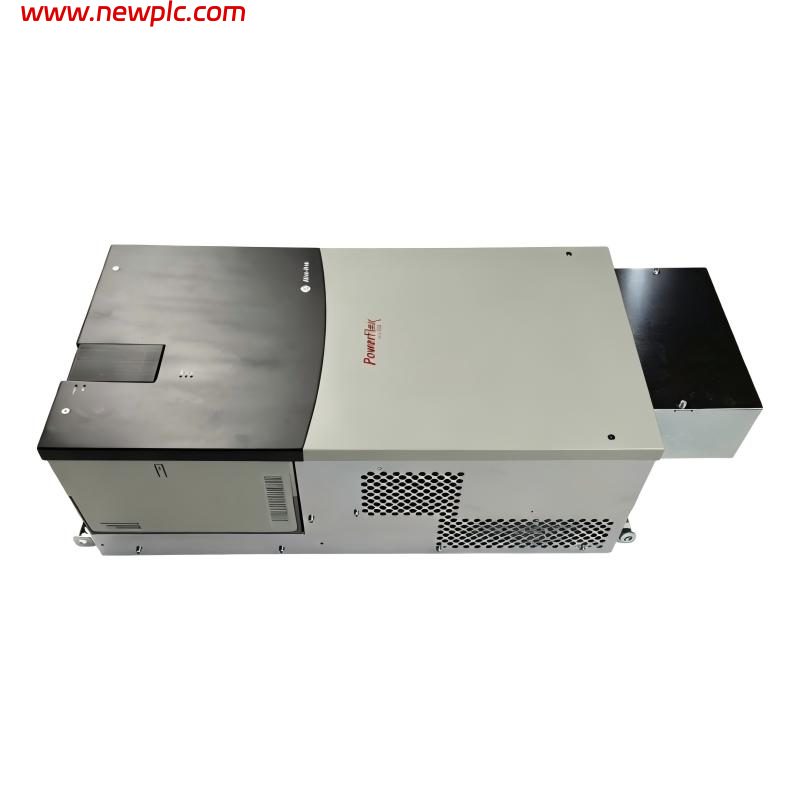

Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Manufacturer |
Allen-Bradley |
|
Product Series |
PowerFlex 700 |
|
Catalog Number |
|
|
Product Type |
High-Power Adjustable Frequency Drive |
|
Drive Type |
PowerFlex 700, Type 20B |
|
Input Voltage Class |
540 V DC |
|
Input Type |
DC bus input |
|
Continuous Output Current |
535 A |
|
Normal Duty Power Rating |
Approximately 300 kW |
|
Heavy Duty Power Rating |
Approximately 280 kW |
|
Output Phase |
3-phase |
|
Control Method |
Vector Control |
|
Control I/O |
24 V DC I/O |
|
Human Interface Module (HIM) |
Not included; blank cover |
|
Communication Module |
Not included |
|
Feedback Option |
No feedback |
|
Brake IGBT |
Not included |
|
Internal Brake Resistor |
Not included |
|
EMC / CE Filter |
Not included |
|
Enclosure Rating |
IP00 / NEMA Open |
|
Installation Type |
Industrial cabinet or electrical system |
|
Analog Inputs |
Configuration-dependent; verify applicable control documentation |
|
Analog Outputs |
Configuration-dependent; verify applicable control documentation |
|
Digital Inputs |
Configuration-dependent; verify applicable control documentation |
|
Digital Outputs |
Configuration-dependent; verify applicable control documentation |
|
Motor Application |
Large industrial AC motors |
|
Frame Size |
Frame 8 class; verify exact frame and mounting configuration |
|
Drive Dimensions (H × W × D) |
Approximately 2373.9 × 757.7 × 1016.0 mm (93.46 × 29.83 × 40.00 in), reference dimensions for the 20Bx535/600 DC-input frame |
|
Drive Weight |
Approximately 468 kg (1032 lb), reference value for the Frame 10 DC-input configuration; confirm the exact model drawing |
|
Cooling Requirements |
High-power industrial cooling and adequate cabinet ventilation required |
|
Operating Environment |
Follow the applicable PowerFlex 700 installation manual |
|
Product Lifecycle |
PowerFlex 700 series discontinued |
|
Typical Applications |
Large conveyors, pumps, fans, blowers, mixers, and heavy industrial machinery |
FAQ
FAQ
Q1: What is the Allen-Bradley 20BP535N0ANNNNC0?
A: The 20BP535N0ANNNNC0 is a high-current PowerFlex 700 adjustable frequency drive intended for large industrial AC motor applications. Its nominal current class is 535 A, with power ratings dependent on the duty classification and installation conditions.
Q2: What are the normal-duty and heavy-duty power ratings?
A: The associated ratings are approximately 300 kW for normal-duty applications and 280 kW for heavy-duty applications. Confirm the exact rating against the applicable product technical data and motor nameplate before installation.
Q3: What input supply does this drive use?
A: This model belongs to the 540 V DC-input PowerFlex 700 family. The DC bus supply, protective devices, and pre-charge arrangement must be designed in accordance with the manufacturer’s installation requirements.
Q4: Does the drive include a Human Interface Module or communication module?
A: This configuration is specified without a HIM and without an internal communication module. Compatible operator-interface or network accessories may be required depending on the application.
Q5: Does this model support encoder feedback?
A: The specified configuration has no feedback option. If the application requires closed-loop encoder control, verify whether a compatible feedback-equipped configuration is available.
Q6: Does the drive include dynamic braking hardware?
A: No braking IGBT or internal brake resistor is included in this configuration. If dynamic braking is necessary, the braking arrangement must be engineered and selected separately.
Q7: What are the dimensions and weight of the 20BP535N0ANNNNC0?
A: Reference dimensions for the large DC-input frame are approximately 2373.9 × 757.7 × 1016.0 mm, with a reference weight of approximately 468 kg. These figures should be verified against the exact mechanical drawing before transportation, lifting, or cabinet design.
Q8: What should be checked before replacing this drive?
A: Verify the complete catalog number, DC bus requirements, motor current, duty rating, enclosure arrangement, cooling requirements, control I/O, communication needs, and physical dimensions. Because this is a high-power industrial drive and the series is discontinued, confirm compatibility and availability with a qualified supplier before purchasing.
