Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Series | PowerFlex 700 |
| Catalog Number | 20BP730N0NNNNNC0 |
| Product Type | DC Input AC Drive |
| Input Voltage | 540 VDC |
| Precharge | Yes |
| Rated Output Current | 730 A |
| Normal-Duty Power | 400 kW |
| Heavy-Duty Power | 350 kW |
| Frame Size | Frame 9 |
| Enclosure | IP00 / Open Type |
| Human Interface | No HIM / Blank Plate |
| Control Method | Vector Control with 24 VDC I/O |
| Communication | No internal communication module |
| Feedback | No feedback |
| EMC Filter | Without CE-compliant filter |
| Brake IGBT | No |
| Drive-Mounted Brake Resistor | No |
| PWM Carrier Frequency | 2 kHz |
| Ambient Temperature | 40 °C |
| Continuous Output Current | 730 A |
| 1-Minute Output Current | 803 A |
| 3-Second Output Current | 1095 A |
| DC Input Current | 855 A |
| DC Input Power | 461 kW |
| Dimensions (H × W × D) | Approx. 2283.7 × 757.8 × 771.9 mm* |
| Weight | Approx. 401 kg* |
| Country of Origin | USA |
FAQ
FAQ

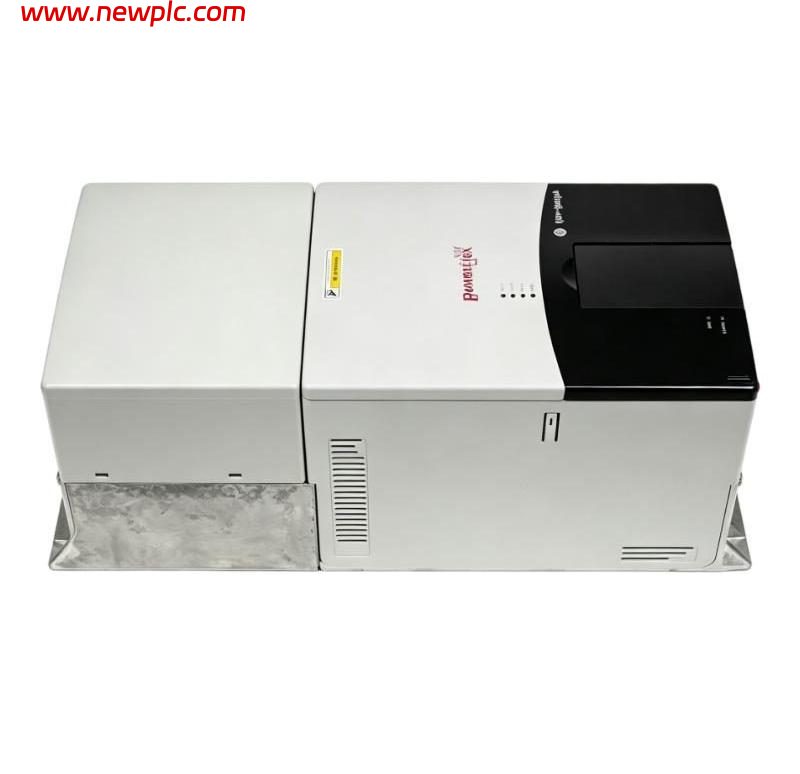

Q1: What is the 20BP730N0NNNNNC0?
It is an Allen-Bradley PowerFlex 700 high-power DC-input AC drive designed for large industrial motor applications.
Q2: What is the input voltage?
The drive uses a 540 VDC input with precharge.
Q3: What is the rated output current and power?
It is rated at 730 A, with 400 kW normal-duty and 350 kW heavy-duty ratings.
Q4: What is the overload capability?
The drive can provide 803 A for 1 minute and 1095 A for 3 seconds under the specified rating conditions.
Q5: What enclosure does this model use?
The 20BP730N0NNNNNC0 uses an IP00/open-type configuration. It must therefore be installed within a suitable protective electrical enclosure.
Q6: Does it include a HIM keypad?
No. This N0 configuration is supplied with a HIM blank plate rather than an installed operator keypad.
Q7: Does it have communication, feedback, or braking hardware?
No. This configuration is specified without an internal communication module, without feedback, without a brake IGBT, and without a drive-mounted brake resistor.
Q8: What are the dimensions and weight?
Published reference data for the exact model gives approximately 2283.7 × 757.8 × 771.9 mm, with a listed weight of approximately 401 kg.
