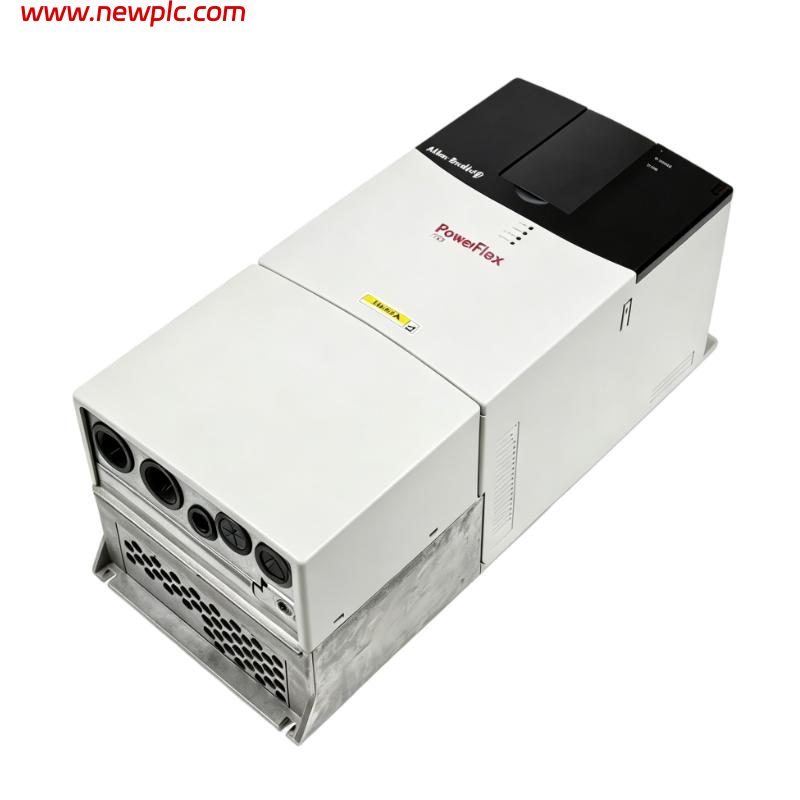

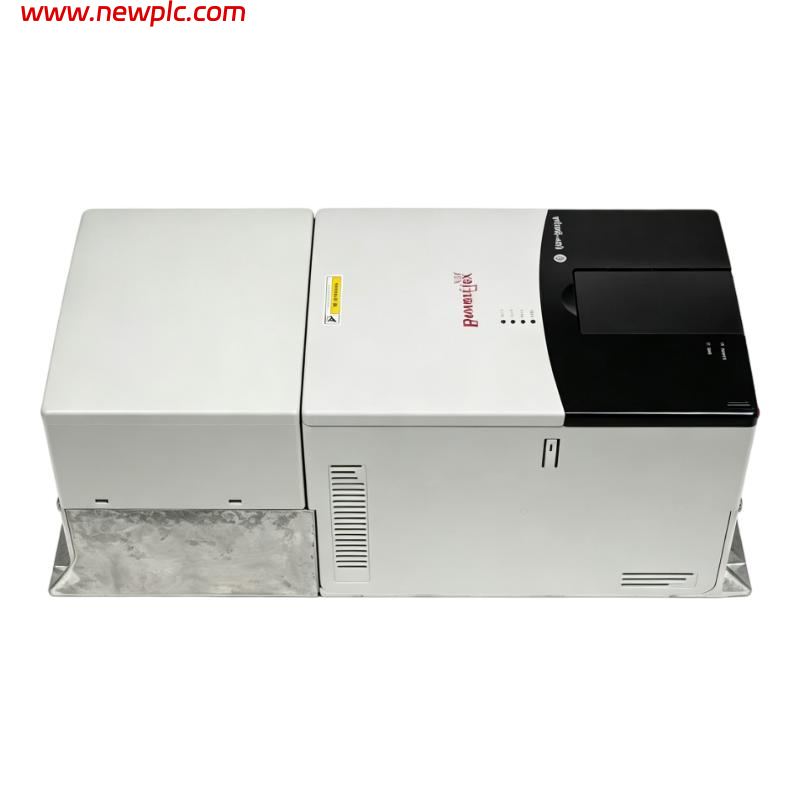

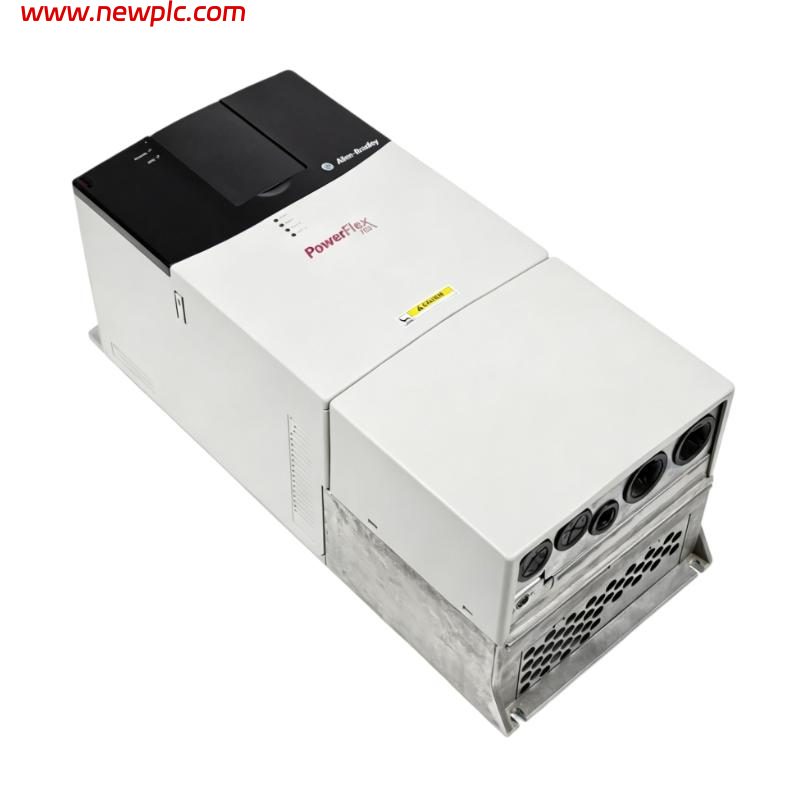

Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | 20BW142A0ANNANC0 |
| Product Type | PowerFlex 700 AC Drive |
| Drive Series | PowerFlex 700 |
| Input Voltage | 932 V DC, Precharge |
| Input Phase | 3-phase |
| Rated Output Current | 142 A continuous |
| Output Current, 1 min | 179 A |
| Output Current, 3 sec | 238 A |
| Normal Duty Power | 132 kW / 132 HP |
| Heavy Duty Power | 110 kW / 110 HP |
| Frame Size | Frame 6 |
| Maximum Output Frequency | 420 Hz |
| Control Method | Vector Control with 24 V DC I/O |
| Selectable Motor Control | Sensorless Vector, V/Hz, Vector Control |
| Carrier Frequency | 2, 4, 8, 10 kHz |
| Digital Inputs | 6 |
| Digital Outputs | 3 |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Feedback | No feedback |
| Internal Communication Module | None |
| Communication Options | EtherNet/IP, DeviceNet, Modbus, PROFIBUS, CAN, LON, TCP/IP via compatible optional modules |
| Brake IGBT | None |
| Internal Brake Resistor | None |
| EMC Filtering | EMC filter with common-mode choke |
| Enclosure | IP20 / NEMA / UL Type 1 |
| Conformal Coating | Yes |
| Input Current | 162.2 A at 932 V DC |
| Fuse Rating | 315 A at 932 V DC |
| Efficiency | Approximately 97.5% |
| Displacement Power Factor | 0.98 |
| Current Limit | Programmable from 20% to 160% of rated output current |
| Overcurrent Trip Level | Approximately 220%–300% of rated current, depending on drive rating |
| Overload Capacity | 110% for up to 1 minute; 150% for up to 3 seconds |
| Acceleration Time | 0–3600 seconds, programmable |
| Deceleration Time | 0–3600 seconds, programmable |
| Motor Overload Protection | Class 10 |
| Power Ride-Through | 15 ms at full load |
| Stop Modes | Coast, DC Brake, Fast Brake, S-Curve and other programmable modes |
| Operating Temperature | 0–50 °C |
| Maximum Altitude | 1000 m without derating |
| Relative Humidity | 5–95%, non-condensing |
| Storage Temperature | -40 °C; upper limit requires confirmation |
| HIM | No HIM, blank plate |
| Dimensions (H × W × D) | 976.3 × 403.9 × 275.5 mm |
| Weight | 71.44 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 20BW142A0ANNANC0?
A: The Allen-Bradley 20BW142A0ANNANC0 is a PowerFlex 700 AC drive designed for industrial motor speed and torque control. It features a 932 V DC precharge input, vector control, and configurable 24 V DC I/O.
Q2: What are the voltage, current, and power ratings of this drive?
A: The specified input voltage is 932 V DC, and the continuous output current is 142 A. The listed power ratings are 132 kW / 132 HP for normal duty and 110 kW / 110 HP for heavy duty. Confirm the motor nameplate and applicable manufacturer ratings before installation.
Q3: Which motor control modes are supported?
A: The drive supports vector control, sensorless vector control, and V/Hz control. These modes allow users to select suitable motor-control performance based on the application, load characteristics, and speed-control requirements.
Q4: What I/O connections are available?
A: The specified configuration includes six digital inputs, three digital outputs, two analog inputs, and two analog outputs. These connections support external commands, status monitoring, and integration with PLC-based automation systems.
Q5: Does the 20BW142A0ANNANC0 have built-in communication or feedback hardware?
A: The specified configuration has no internal communication module and no feedback option. Compatible optional communication modules may support networks such as EtherNet/IP, DeviceNet, Modbus, and PROFIBUS. Verify the required option and compatibility with the installed control system.
Q6: Does this drive include dynamic braking components?
A: The specified configuration does not include a brake IGBT or internal brake resistor. Applications requiring rapid deceleration may need compatible external braking equipment. Confirm braking requirements and hardware compatibility before commissioning.
Q7: What are the dimensions and weight of the 20BW142A0ANNANC0?
A: The supplied specifications list dimensions of 976.3 × 403.9 × 275.5 mm (H × W × D) and a weight of 71.44 kg. Confirm these figures against the manufacturer’s mechanical drawing for the exact catalog number before planning cabinet installation or lifting.
Q8: What should be checked before installing or replacing this drive?
A: Verify the complete catalog number, DC supply voltage, motor current and power ratings, overload requirements, enclosure, I/O wiring, communication options, braking needs, and physical dimensions. Follow the manufacturer’s electrical isolation and DC-bus discharge procedures before installation or maintenance.
