Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | 20DC022A0EYNANANE |

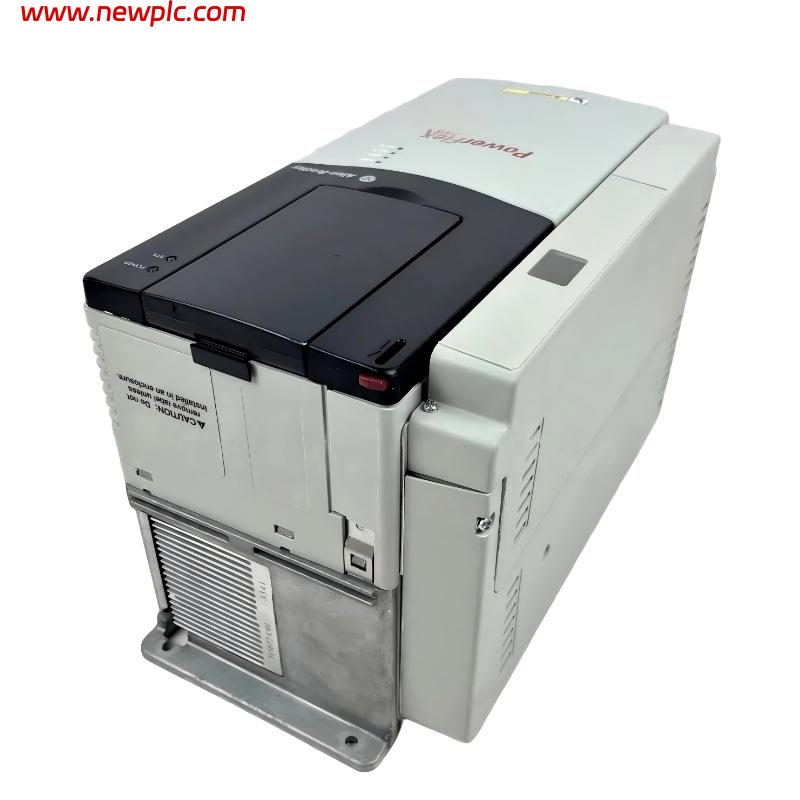

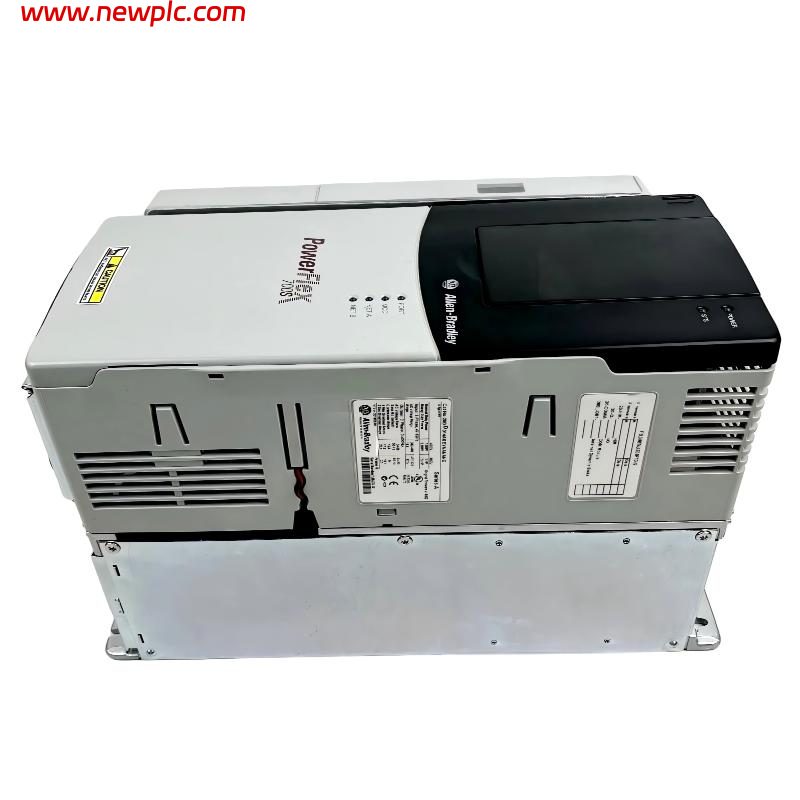

| Product Type | PowerFlex 700S AC Drive |
| Drive Series | PowerFlex 700S, 20D |
| Control Configuration | Phase II Control, Expanded Cassette |
| Input Voltage | 400 V AC |
| Input Phase | 3-phase, 6-pulse |
| Input Frequency | 50 Hz |
| DC Bus Nominal Voltage | 540 V DC at 380–400 V AC input |
| Rated Output Current | 22 A continuous |
| Output Current, 1 min | 24.2 A |
| Output Current, 3 sec | 33 A |
| Normal Duty Power | 11 kW / 15 HP |
| Heavy Duty Power | 7.5 kW / 10 HP |
| Frame Size | Frame 1 |
| Maximum Output Frequency | 400 Hz |
| Output Voltage Range | 0 to rated motor voltage |
| Control Method | Phase II field-oriented vector control |
| Selectable Motor Control | Field-oriented control with or without feedback; permanent-magnet motor control |
| Carrier Frequency | 2, 4, 6, 8, and 10 kHz; rated at 4 kHz |
| Digital Inputs | 6 |
| Digital Outputs | 2 |
| Analog Inputs | 3 |
| Analog Outputs | 2 |
| Feedback Option | Incremental encoder specified; verify exact configuration |
| Encoder Supply | 5 V DC or 12 V DC, 320 mA per channel |
| Internal Communication Module | None |
| Communication Options | Optional communication modules; verify compatibility with the required network |
| Brake IGBT | Installed |
| Internal Brake Resistor | Not included |
| EMC Filtering | EMC filter with common-mode choke |
| Enclosure | IP20 / NEMA / UL Type 1 |
| Input Current | 24 A at 540 V DC |
| Input Power Rating | 14.3 kVA at 400 V AC, 3-phase |
| Fuse Rating | 40 A at 540 V DC |
| Recommended Dual-Element Time-Delay Fuse | 30–45 A at 400 V AC, 3-phase |
| Maximum Circuit Breaker Rating | 80 A at 400 V AC, 3-phase |
| Efficiency | Approximately 97.5% at rated current and nominal line voltage |
| Displacement Power Factor | 0.98 across speed range |
| Current Limit | Independent motoring and regenerative power limits; programmable according to drive settings |
| Overload Capacity | 110% for up to 1 minute; 150% for up to 3 seconds |
| Acceleration / Deceleration | Independently programmable from 0 to 6553.5 seconds in 0.1-second increments |
| Motor Overload Protection | Class 10 electronic motor overload protection |
| Power Ride-Through | 15 ms at full load |
| Logic Control Ride-Through | Approximately 0.25 seconds when the drive is not running |
| Stop Modes | Coast, current limit, and other programmable stop modes |
| Operating Temperature | 0–40 °C ambient without derating for NEMA/UL Type 1; consult the manual for other conditions |
| Maximum Altitude | 1,000 m without derating |
| Relative Humidity | 5–95%, non-condensing |
| Storage Temperature | Minimum -40 °C; upper limit should be confirmed in the applicable manual |
| Human Interface Module (HIM) | No HIM |
| Dimensions (H × W × D) | 336 × 166.9 × 200 mm |
| Weight | 7.03 kg |
| Country of Origin | Mexico |
| Product Status | Discontinued / obsolete |
FAQ
FAQ
Q1: What is the Allen-Bradley 20DC022A0EYNANANE?
A: The Allen-Bradley 20DC022A0EYNANANE is a PowerFlex 700S AC drive with Phase II control and an expanded control cassette. It is designed for industrial motor speed and torque applications requiring advanced field-oriented control.
Q2: What are the voltage, current, and power ratings?
A: The drive is designed for 400 V AC three-phase input and provides 22 A continuous output current. Its listed power ratings are 11 kW / 15 HP for normal duty and 7.5 kW / 10 HP for heavy duty. Select the applicable rating according to the motor nameplate and operating requirements.
Q3: What control methods does the 20DC022A0EYNANANE support?
A: The PowerFlex 700S Phase II control platform supports field-oriented vector control, including operation with or without feedback, and control for permanent-magnet motors. The appropriate configuration depends on the motor type and application.
Q4: Does this drive support encoder feedback?
A: This catalog configuration is listed with incremental encoder feedback. The encoder supply supports 5 V DC or 12 V DC, up to 320 mA per channel. Verify encoder electrical specifications, wiring, and drive parameters before commissioning.
Q5: Does the drive include dynamic braking hardware?
A: The drive includes a brake IGBT but does not include an internal brake resistor. A compatible external resistor may be needed for applications requiring dynamic braking. Confirm resistor ratings and installation requirements in the manufacturer’s documentation.
Q6: What communication options are available?
A: The base configuration has no internal communication module. Network connectivity may be added using compatible optional modules. Confirm the specific module, network protocol, and compatibility with the PLC or supervisory control system before installation.
Q7: What are the dimensions and weight of the 20DC022A0EYNANANE?
A: The manufacturer lists approximate dimensions of 336 × 166.9 × 200 mm (H × W × D) and a drive weight of 7.03 kg. Allow additional space for cable routing, cooling airflow, and maintenance access.
Q8: What should be checked before installing or replacing this drive?
A: Verify the input voltage, output current, motor power, feedback configuration, braking requirements, control cassette, communication options, protective devices, and mounting dimensions. Follow the manufacturer’s electrical isolation and DC-bus discharge procedures before installation or maintenance.
