Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |

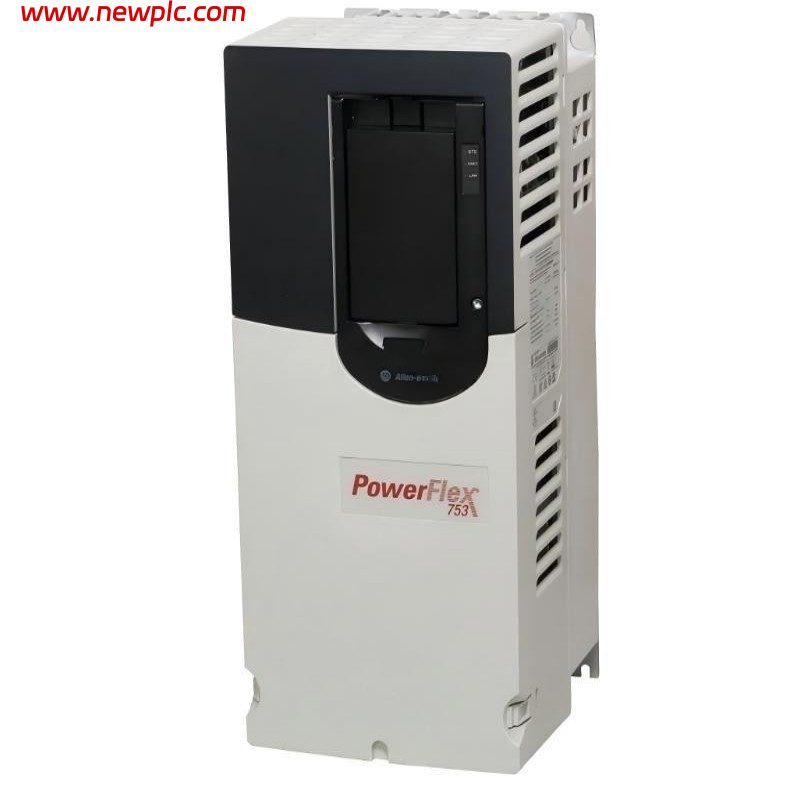

| Product | PowerFlex 753 AC Drive |
| Model | 20F11GE022AA0NNNNN |
| Drive Series | PowerFlex 753 |
| Product Type | Air-Cooled AC Drive |
| Input Voltage | 600 V AC, 3-phase |
| Input Frequency | 50/60 Hz |
| Input Type | AC input with precharge |
| Rated Output Current | Approximately 22 A class; verify exact rating against the nameplate |
| Normal-Duty Power Rating | Approximately 20 HP |
| Heavy-Duty Power Rating | Approximately 15 HP |
| Frame Size | Frame 3; confirm against the exact enclosure configuration |
| Enclosure Rating | IP54 / NEMA Type 12 |
| Cooling Method | Forced-air cooling |
| Dynamic Braking | Internal dynamic braking transistor included |
| EMC Filtering | EMC filter |
| Common-Mode Jumper | Removed |
| Operator Interface | No HIM included in this catalog configuration |
| Communication | Optional communication modules; installed options must be verified |
| Motor Control | Adjustable-frequency AC motor control |
| Feedback | Optional feedback modules, depending on application |
| Country of Origin | United States of America |
| Product Lifecycle | Discontinued |
| Direct Replacement | 20F11GE022JA0NNNNN |
| Dimensions (H × W × D) | 551 × 268 × 220.1 mm |
| Approximate Weight | 12 kg (26 lb) |
FAQ
FAQ
Q1: What is the Allen-Bradley 20F11GE022AA0NNNNN?
A: It is an Allen-Bradley PowerFlex 753 AC drive designed for industrial motor speed control, with forced-air cooling and an IP54/NEMA Type 12 enclosure.
Q2: What are the input voltage and output power ratings?
A: This model belongs to the 600 V AC, three-phase PowerFlex 753 family. Confirm the exact output current and horsepower ratings against the manufacturer’s selection data and the drive nameplate.
Q3: What are the dimensions of the 20F11GE022AA0NNNNN?
A: The approximate dimensions for the Frame 3 IP54/NEMA Type 12 enclosure are 551 mm high × 268 mm wide × 220.1 mm deep.
Q4: How much does the 20F11GE022AA0NNNNN weigh?
A: The approximate drive weight is 12 kg (26 lb). Shipping weight may be higher when packaging and accessories are included.
Q5: Does this model include dynamic braking?
A: Yes. The catalog configuration includes an internal dynamic braking transistor. An external braking resistor may be required, depending on the application’s stopping requirements.
Q6: What enclosure protection does this drive provide?
A: The IP54/NEMA Type 12 enclosure is designed to protect against dust and water splashes under specified industrial conditions. Follow the manufacturer’s installation requirements for the intended environment.
Q7: Does the drive include a communication module or HIM?
A: This configuration does not specify an installed communication module or Human Interface Module (HIM). Compatible options may be purchased separately, subject to model compatibility.
Q8: Is the 20F11GE022AA0NNNNN still available?
A: Rockwell Automation lists this model as discontinued, with 20F11GE022JA0NNNNN as the direct replacement. Confirm voltage, current rating, enclosure, braking configuration, and application compatibility before ordering.
