Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |

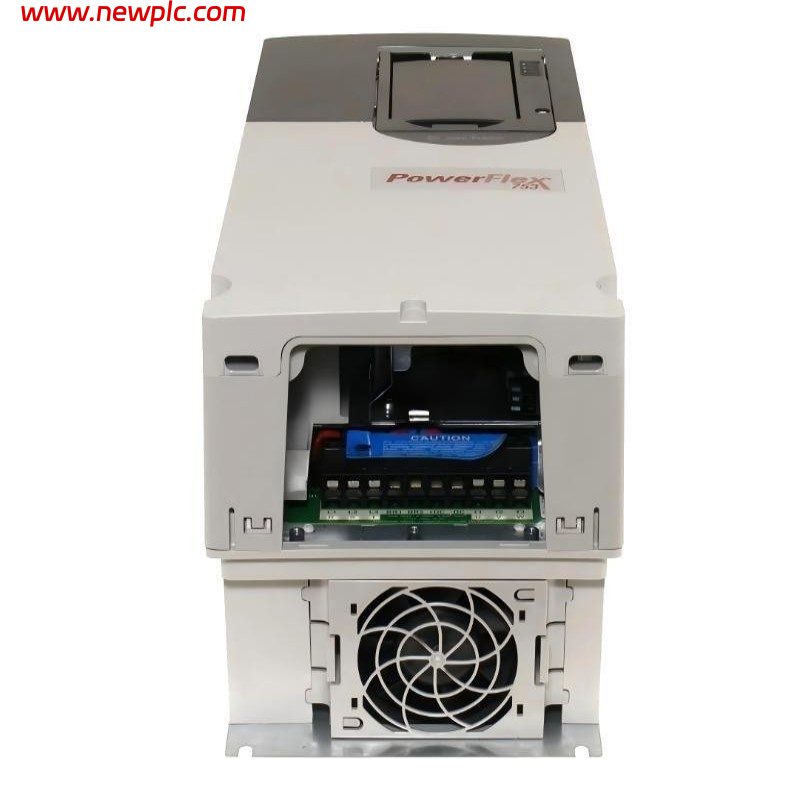

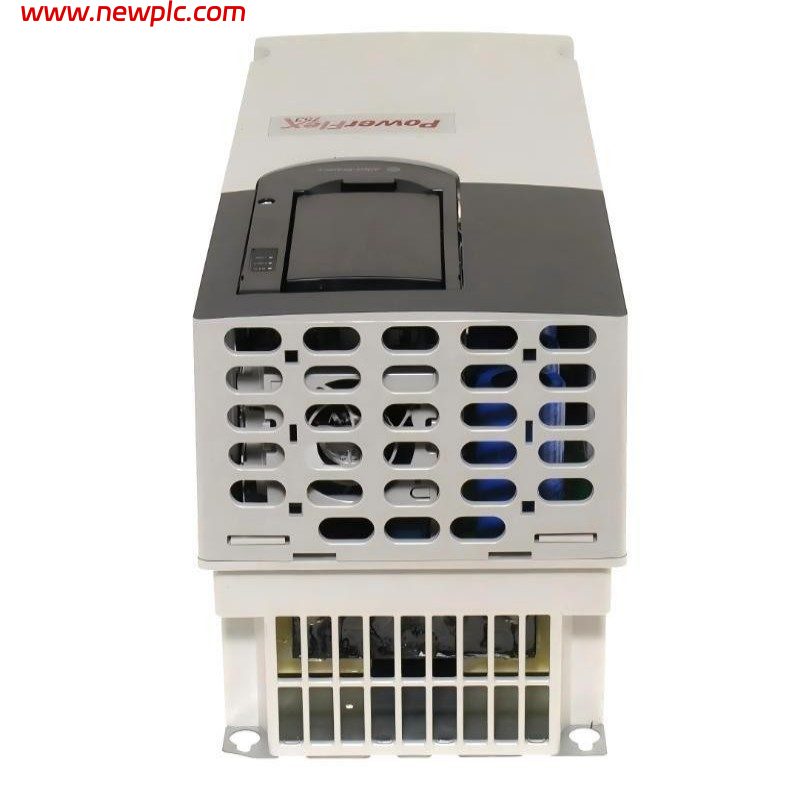

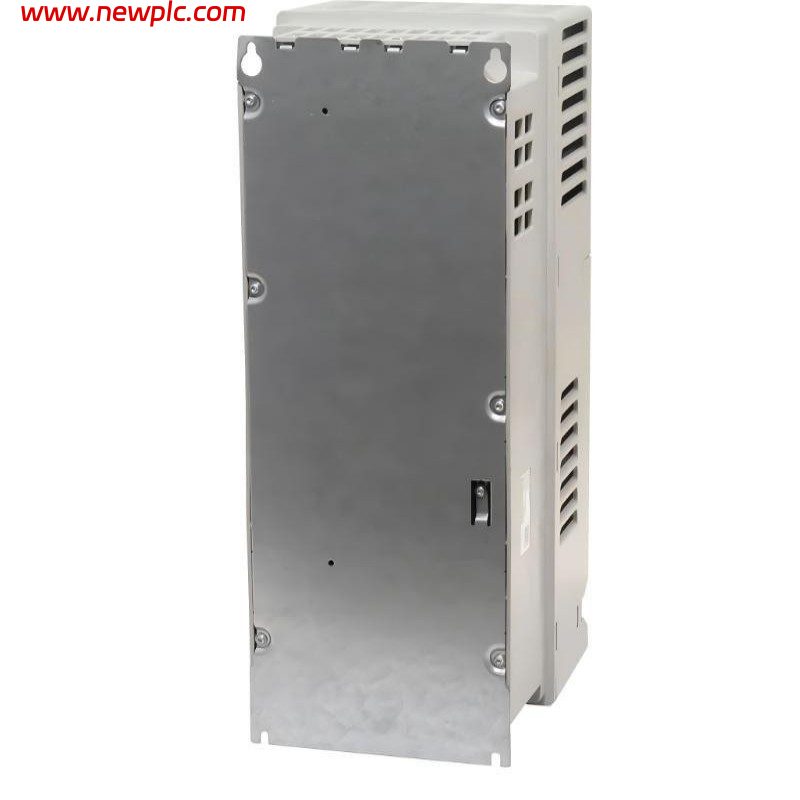

| Product | PowerFlex 753 AC Drive |
| Model | 20F11GE027AA0NNNNN |
| Drive Series | PowerFlex 753 |
| Product Type | Packaged, Air-Cooled AC Drive |
| Input Voltage | 600 V AC, 3-phase |
| Input Frequency | 50/60 Hz |
| Input Type | AC input with precharge |
| Continuous Output Current, Normal Duty | 27 A |
| Continuous Output Current, Heavy Duty | 22 A |
| Output Current, 1 min | 30 A normal duty / 33 A heavy duty |
| Output Current, 3 sec | 41 A normal duty / 59 A heavy duty |
| Normal-Duty Power Rating | 25 HP / approximately 18.5 kW |
| Heavy-Duty Power Rating | 20 HP / approximately 15 kW |
| Frame Size | Frame 4 |
| Enclosure Rating | IP54 / NEMA Type 12 |
| Cooling Method | Forced-air cooling |
| Input Phases | 3-phase |
| Output Phases | 3-phase |
| Embedded I/O | Included |
| Dynamic Braking | Dynamic braking transistor configuration; verify the exact suffix and hardware |
| EMC Filtering | EMC filter |
| Common-Mode Capacitor Configuration | Catalog-specific; verify before installation |
| Human Interface Module (HIM) | Not included in this blank configuration |
| Communication | Optional communication modules |
| Motor Control | Adjustable-frequency AC motor control |
| Feedback Options | Compatible optional feedback modules |
| Operating Temperature | Refer to the manufacturer’s installation manual for enclosure-specific limits and derating |
| Maximum Altitude | Refer to manufacturer’s derating requirements |
| Country of Origin | United States of America |
| Lifecycle Status | Discontinued |
| Direct Replacement | 20F11GE027JA0NNNNN |
| Dimensions (H × W × D) | Approximately 551 × 268 × 220.1 mm; verify the Frame 4 enclosure drawing |
| Weight | 12 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 20F11GE027AA0NNNNN?
A: It is an Allen-Bradley PowerFlex 753 AC drive designed for industrial motor speed and torque control applications.
Q2: What are the input voltage and output current ratings?
A: It is designed for 600 V AC, three-phase input. The listed output current ratings are 27 A for normal duty and 22 A for heavy duty.
Q3: What are the dimensions of the 20F11GE027AA0NNNNN?
A: The dimensions need to be verified against the exact Frame 4 IP54/NEMA Type 12 mechanical drawing. The approximate reference dimensions shown above should not be treated as a confirmed model-specific measurement.
Q4: What is the weight of the 20F11GE027AA0NNNNN?
A: The exact weight has not been reliably confirmed for this specific enclosure configuration. Check the manufacturer’s dimensional drawing or supplier packing data before calculating freight or mounting loads.
Q5: Does this drive support dynamic braking?
A: Dynamic braking availability depends on the precise catalog configuration and installed hardware. Verify the braking transistor and external resistor requirements before connecting a braking system.
Q6: What enclosure protection does this model provide?
A: It is listed with an IP54/NEMA Type 12 enclosure, designed for protection against dust and water splashes under the specified industrial operating conditions.
Q7: Does this model include a communication module or operator interface?
A: The blank configuration does not specify an installed HIM or a particular communication module. Compatible accessories may be available separately.
Q8: Is the 20F11GE027AA0NNNNN still available?
A: Rockwell Automation lists it as discontinued, with 20F11GE027JA0NNNNN as the direct replacement. Confirm voltage, duty rating, enclosure, braking options, dimensions, and weight before purchasing a replacement.
