Technical Specifications
| Parameter | Specification |
|---|---|

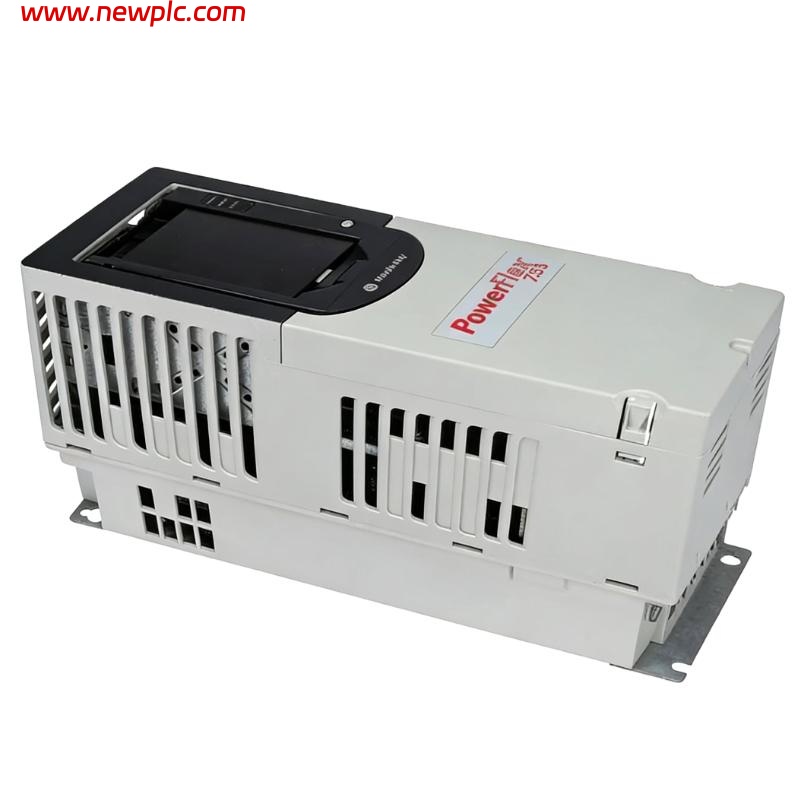

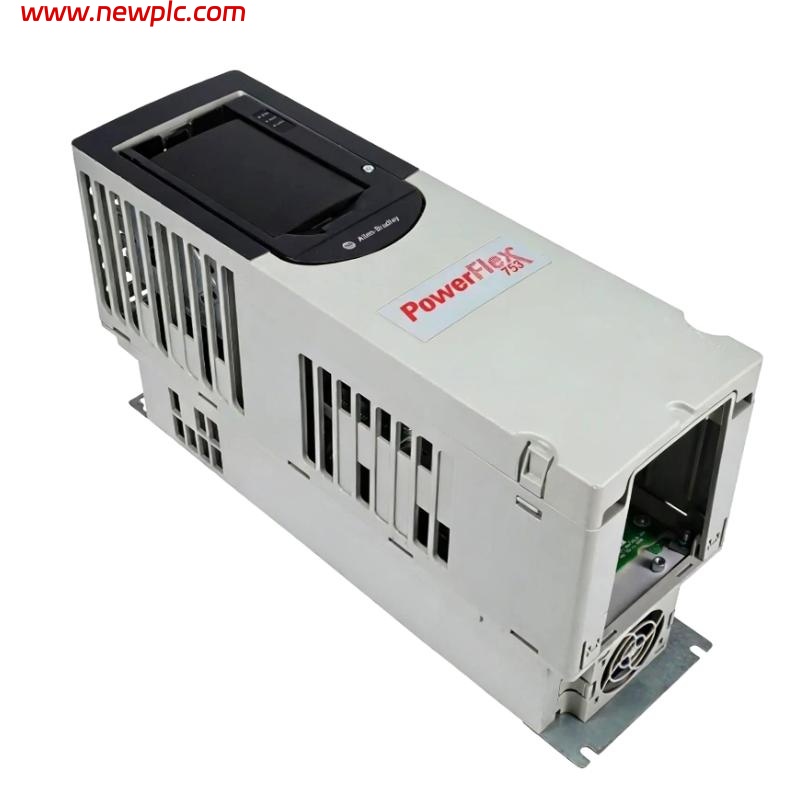

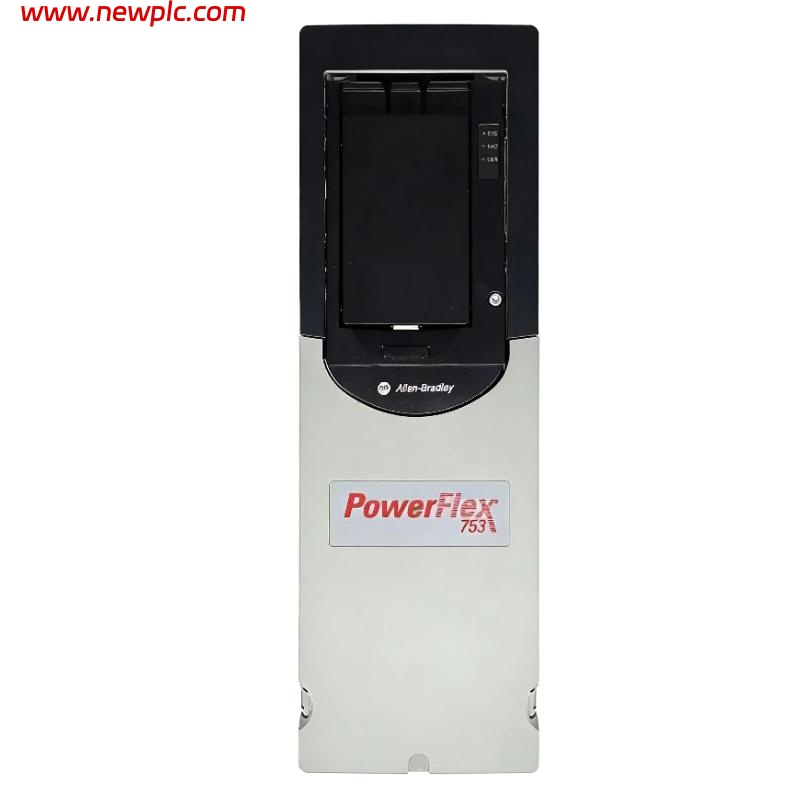

| Product Type | AC Variable Frequency Drive |
| Model | Allen-Bradley 20F11NC5P0JA0NNNNN |
| Series | PowerFlex 753 |
| Function | Industrial AC motor speed and torque control drive |
| Input Voltage | 380–480 V AC, 3-phase |
| Nominal Voltage | 400 V AC |
| Input Frequency | 50/60 Hz |
| Output Voltage | 0–460 V AC, 3-phase |
| Output Current | 5 A |
| Output Power | 2.2 kW (Normal Duty) / 1.5 kW (Heavy Duty) |
| Frame Size | Frame 2 |
| Control Method | Sensorless Vector Control / V/Hz |
| Communication | Modular (EtherNet/IP, DeviceNet, ControlNet via option modules) |
| EMC Filter | Integrated EMC filter with CM jumper installed |
| Brake Function | Built-in dynamic braking transistor |
| Control I/O | Embedded digital and analog I/O (expandable) |
| Protection Functions | Overcurrent, overvoltage, undervoltage, motor overload, ground fault |
| Enclosure Rating | IP20 / Open type (panel mount) |
| Mounting Type | Panel mount |
| Cooling Method | Air-cooled |
| Operating Temperature | 0 to 50 °C |
| Dimensions (H × W × D) | 336 × 110 × 200 mm |
| Weight | ~8–10 kg |
FAQ
FAQ
Q1. What is the 20F11NC5P0JA0NNNNN used for?
It is a PowerFlex 753 AC drive used to control speed and torque of three-phase motors in applications such as conveyors, pumps, and machinery.
Q2. What is its power rating?
It provides 2.2 kW (normal duty) and 1.5 kW (heavy duty) with a 5 A output current.
Q3. What type of input power does it require?
It operates on a 380–480 V AC three-phase supply.
Q4. Does it include braking capability?
Yes, it includes a built-in dynamic braking transistor for use with an external resistor.
Q5. What communication options are available?
It supports EtherNet/IP, DeviceNet, and ControlNet through optional communication modules.
Q6. What is the enclosure type?
It is an IP20 open-type drive designed for installation inside control panels.
Q7. What are its physical dimensions and weight?
Its dimensions are approximately 336 × 110 × 200 mm and it weighs about 8–10 kg.
Q8. Is this model still in production?
Yes, it is an active product and serves as a replacement for earlier discontinued variants.
