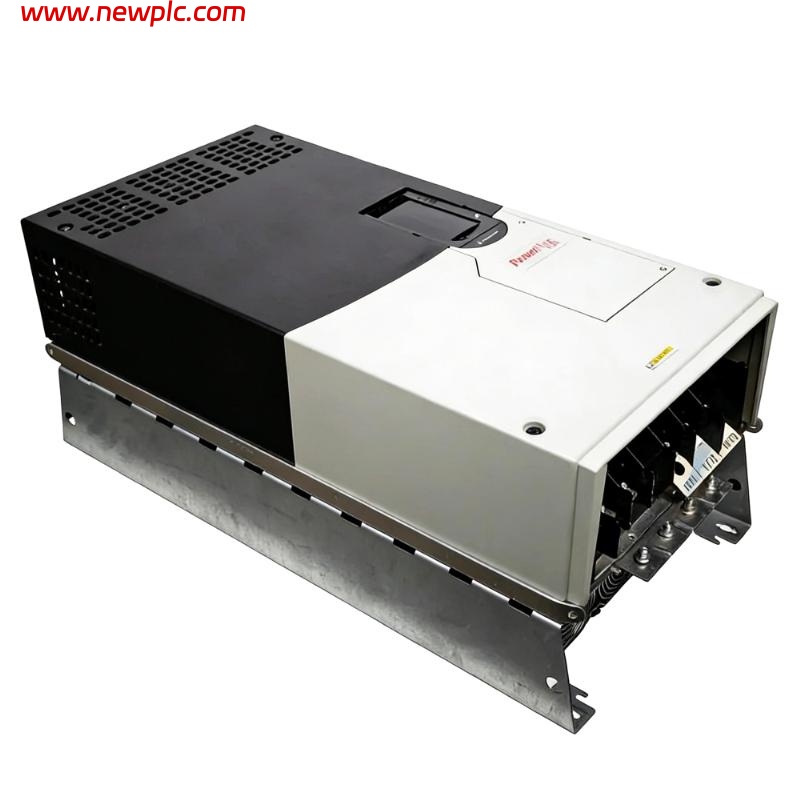

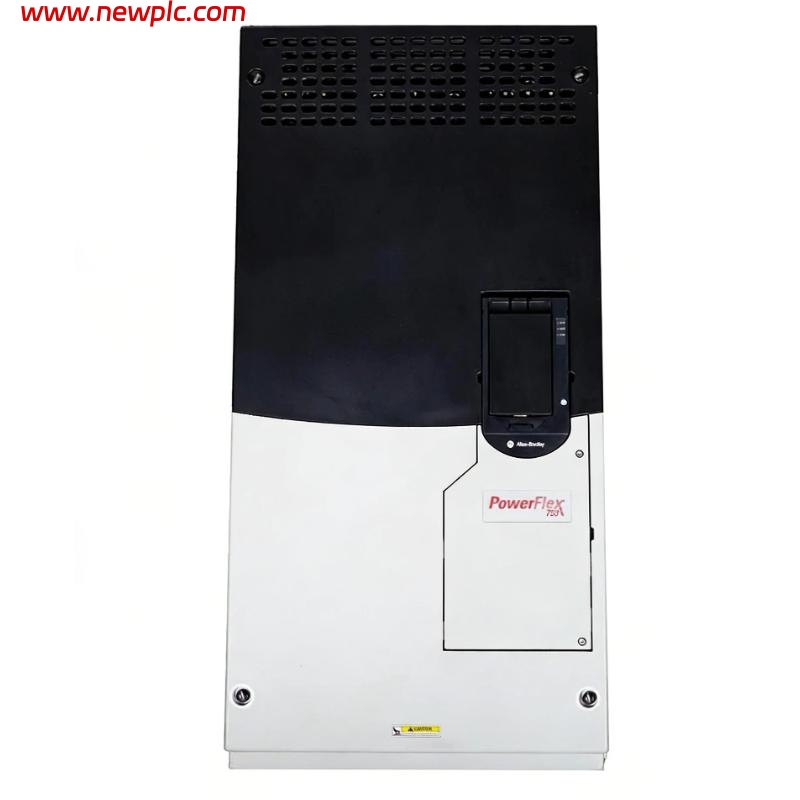

Allen-Bradley 20F1AGC302JN0NNNNN AC Variable Frequency Drive

FAQ

Q1. What is the 20F1AGC302JN0NNNNN used for?
It is a high-power PowerFlex 753 drive designed for controlling large industrial motors in applications such as heavy machinery, pumps, and compressors.

Q2. What is its power rating?
It delivers 160 kW (normal duty) and 132 kW (heavy duty) with a rated current of 302 A.

Q3. What type of input power does it require?
It operates on a 380–480 V AC three-phase supply with a nominal rating of 400 V.

Q4. Does it include braking capability?
No, this configuration does not include a built-in dynamic braking transistor and requires external braking solutions if needed.

Q5. What enclosure rating does it have?
It features an IP54 / Type 12 enclosure suitable for industrial environments with dust protection.

Q6. What communication options are available?
It supports modular communication such as EtherNet/IP, DeviceNet, and ControlNet via optional modules.

Q7. What are its physical dimensions and weight?
Its dimensions are approximately 1614 × 609 × 465 mm and its weight is estimated between 180 and 220 kg depending on configuration.

Q8. Is this model still in production?
Yes, it is an active product and serves as a current high-power solution within the PowerFlex 753 series.

20F1AGC302JN0NNNNN Allen Bradley
