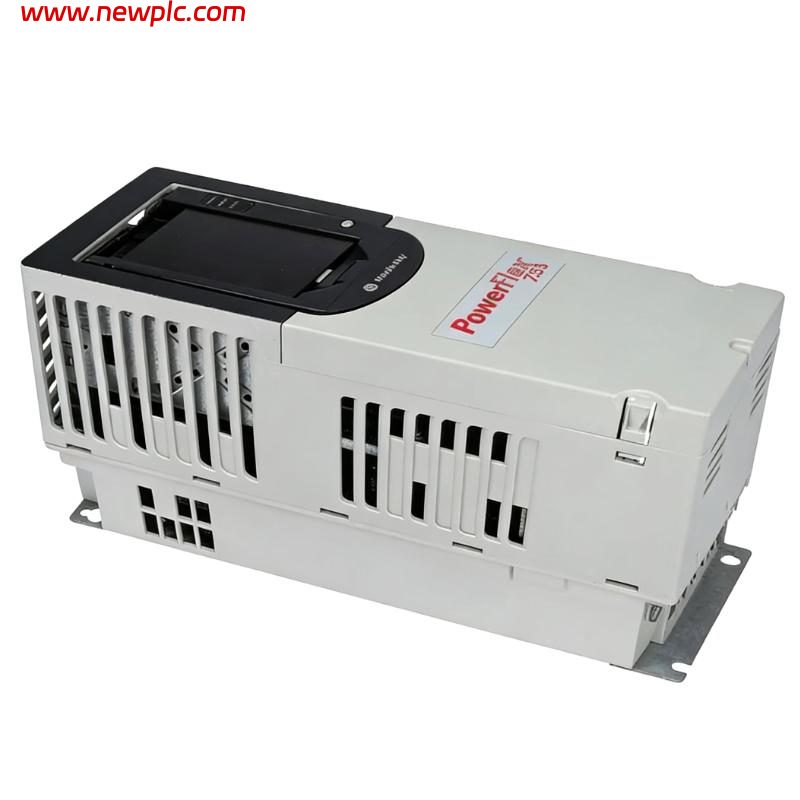

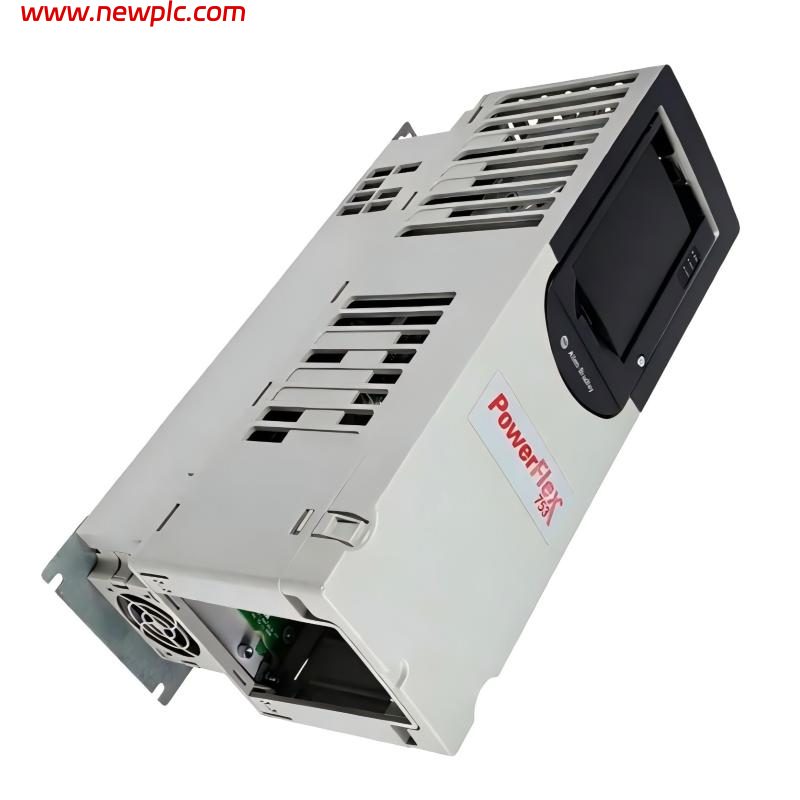

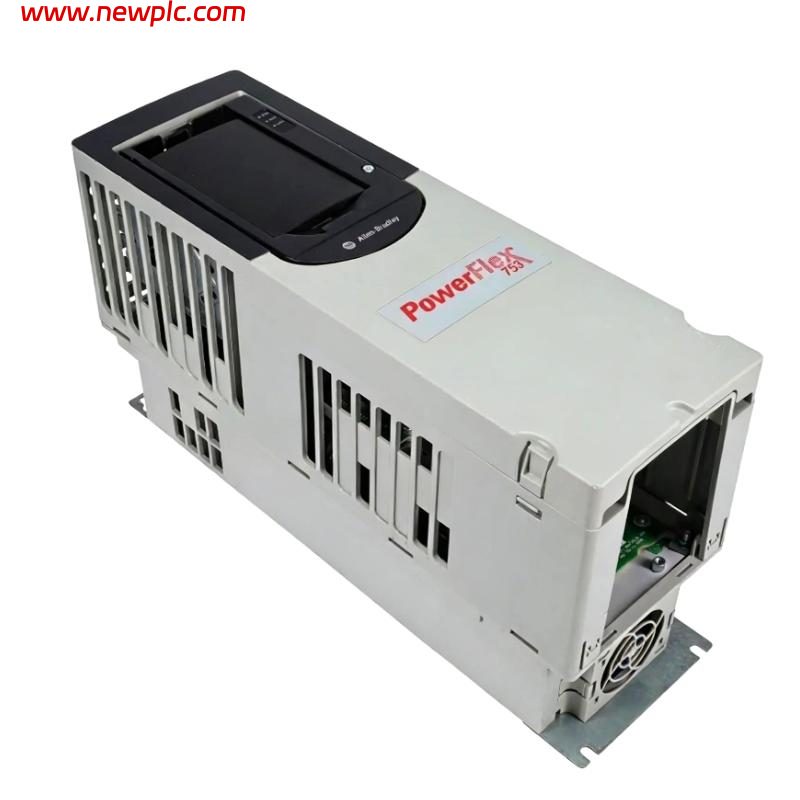

Allen-Bradley 20G11BE630AN0NNNNN PowerFlex 755 AC Drive
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Product Series | PowerFlex 755 |
| Catalog Number | 20G11BE630AN0NNNNN |
| Product Type | Air-Cooled AC Variable Frequency Drive (VFD) |
| Lifecycle Status | Discontinued |
| Discontinuation Date | June 30, 2024 |
| Rated Input Voltage | 600 V AC |
| Input Phase | Three-phase |
| Rated Output Current | 630 A |
| Light-Duty Power Rating | 800 HP (approximately 597 kW) |
| Normal-Duty Power Rating | 700 HP (approximately 522 kW) |
| Heavy-Duty Power Rating | 600 HP (approximately 447 kW) |
| Input Configuration | AC input with precharge and DC terminals |
| Cooling Method | Forced-air cooling |
| Enclosure Rating | IP20 |
| Enclosure Type | NEMA Type 1, 600 mm deep MCC style |
| Communication | Embedded EtherNet/IP |
| Protection | Standard protection |
| EMC Filtering | Filtered |
| Common-Mode Jumper | Removed |
| Dynamic Braking Transistor | Not included |
| Human Interface Module (HIM) | Not included; blank configuration |
| Frame Size | Frame 9 |
| Dimensions (H × W × D) | 1450 mm × 520 mm × 388mm |
| Weight | Approximately 1,247 kg (2,748 lb); verify the exact shipping configuration |
| Country of Origin | United States |
| Typical Applications | High-power pumps, fans, conveyors, compressors, and industrial process equipment |
FAQ
FAQ
Q1: What is the Allen-Bradley 20G11BE630AN0NNNNN?
It is a PowerFlex 755 AC drive designed for variable-speed control of high-power industrial three-phase AC motors.
Q2: What is the rated input voltage?
The drive is designed for a 600 V AC, three-phase power supply.
Q3: What are its current and power ratings?
The rated output current is 630 A, with power ratings of 800 HP for light-duty, 700 HP for normal-duty, and 600 HP for heavy-duty applications.
Q4: Is this model still available from the manufacturer?
No. Rockwell Automation lists this catalog number as discontinued effective June 30, 2024. Remaining inventory and aftermarket availability may vary.
Q5: Does this drive support EtherNet/IP communication?
Yes. It features embedded EtherNet/IP communication for integration with compatible industrial automation and control systems.
Q6: Does it include a dynamic braking transistor or keypad?
No. This configuration does not include an internal dynamic braking transistor or a Human Interface Module (HIM). Additional braking equipment or an external interface may be required depending on the application.
Q7: What enclosure and cooling types does it use?
It uses forced-air cooling and an IP20, NEMA Type 1 enclosure designed for a 600 mm deep motor control center (MCC). Appropriate ventilation and environmental protection are required.
Q8: What should be checked before installation or replacement?
Verify the supply voltage, motor current, duty rating, EMC filtering and common-mode jumper configuration, braking requirements, communication compatibility, cabinet dimensions, ventilation clearances, and lifting arrangements. Confirm the exact mechanical specifications using the manufacturer’s documentation before installation.
