Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | AC Variable Frequency Drive |

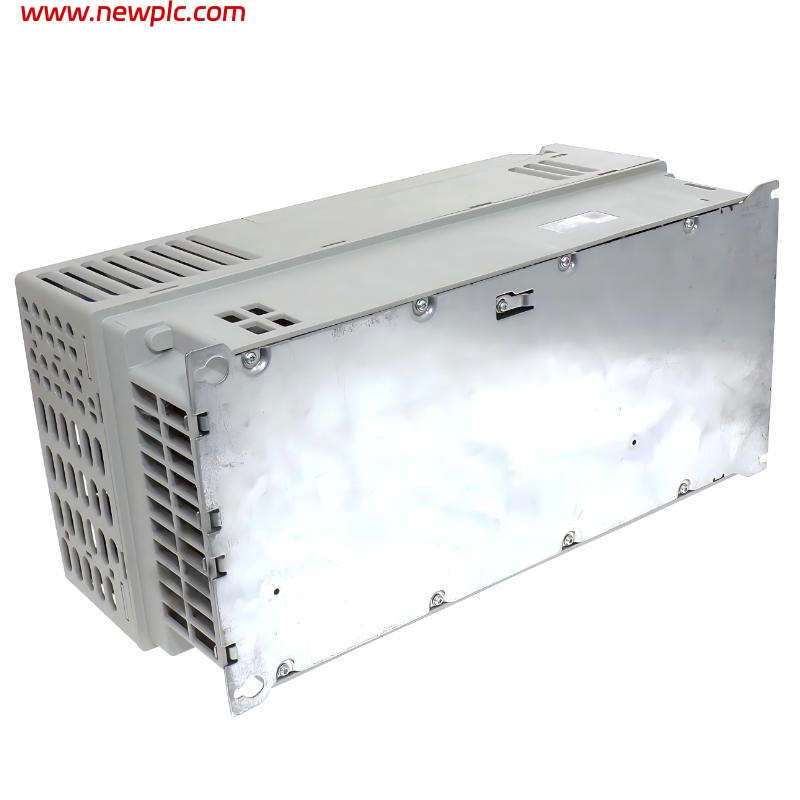

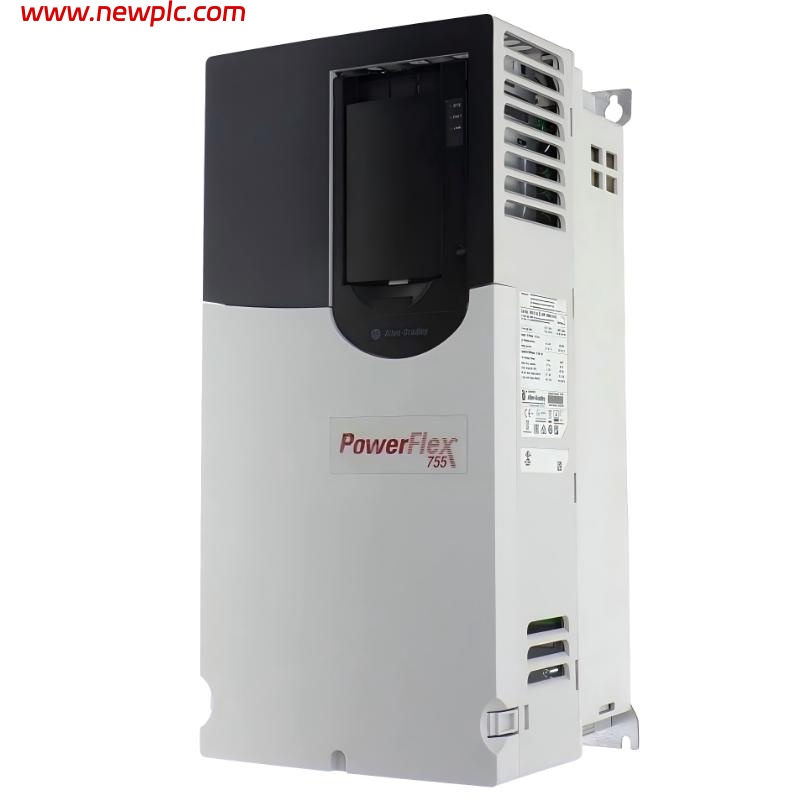

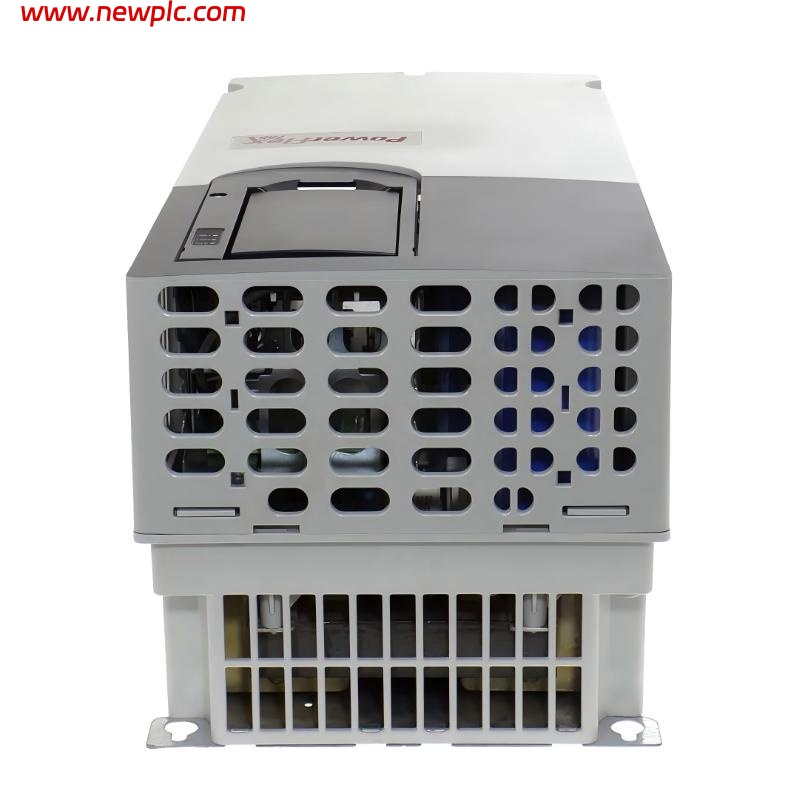

| Model | Allen-Bradley 20G11ND065JA0NNNNN |
| Series | PowerFlex 755 |
| Function | Industrial AC motor speed and torque control drive |
| Input Voltage | 380–480 V AC, 3-phase |
| Input Frequency | 50/60 Hz |
| Output Voltage | 0–460 V AC, 3-phase |
| Output Current | 65 A |
| Output Power | 30 kW (Normal Duty) / 22 kW (Heavy Duty) |
| Frame Size | Frame 4 |
| Control Method | Sensorless Vector Control / V/Hz control |
| Communication | Modular (EtherNet/IP, DeviceNet, ControlNet via option modules) |
| Control Interface | DPI (Drive Peripheral Interface) |
| EMC Filter | Integrated EMC filter (CM jumper configuration) |
| Brake Function | Built-in dynamic braking transistor |
| Input Type | AC input with precharge circuit |
| Protection Functions | Overcurrent, overvoltage, undervoltage, motor overload, ground fault |
| Enclosure Rating | IP20 / NEMA Type 1 |
| Mounting Type | Panel mount |
| Cooling Method | Air-cooled |
| Operating Temperature | 0 to 50 °C |
| Dimensions (H × W × D) | 550 × 212 × 450 mm |
| Weight | ~18–30 kg |
FAQ
FAQ
Q1. What is the 20G11ND065JA0NNNNN used for?
It is a PowerFlex 755 AC drive used to control speed and torque of three-phase motors in industrial automation systems such as conveyors, pumps, fans, and compressors.
Q2. What is its power rating?
It delivers 30 kW (normal duty) and 22 kW (heavy duty) with a rated output current of 65 A.
Q3. What type of input supply does it require?
It operates on a 380–480 V AC three-phase supply, commonly used in 400 V industrial systems.
Q4. Does it include braking capability?
Yes, it includes a built-in dynamic braking transistor, but an external braking resistor is required for energy dissipation.
Q5. What communication options are available?
It supports modular communication such as EtherNet/IP, DeviceNet, and ControlNet depending on installed option modules.
Q6. What is the enclosure type?
It is an IP20 / NEMA Type 1 open-type drive designed for installation inside electrical cabinets.
Q7. What are its physical dimensions and weight?
Its dimensions are approximately 550 × 212 × 450 mm and it weighs around 18–30 kg depending on configuration.
Q8. Is this model still in production?
Yes, it belongs to the PowerFlex 755 series, which remains actively supported and used in industrial automation applications.
