Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Single-Axis Servo Drive |

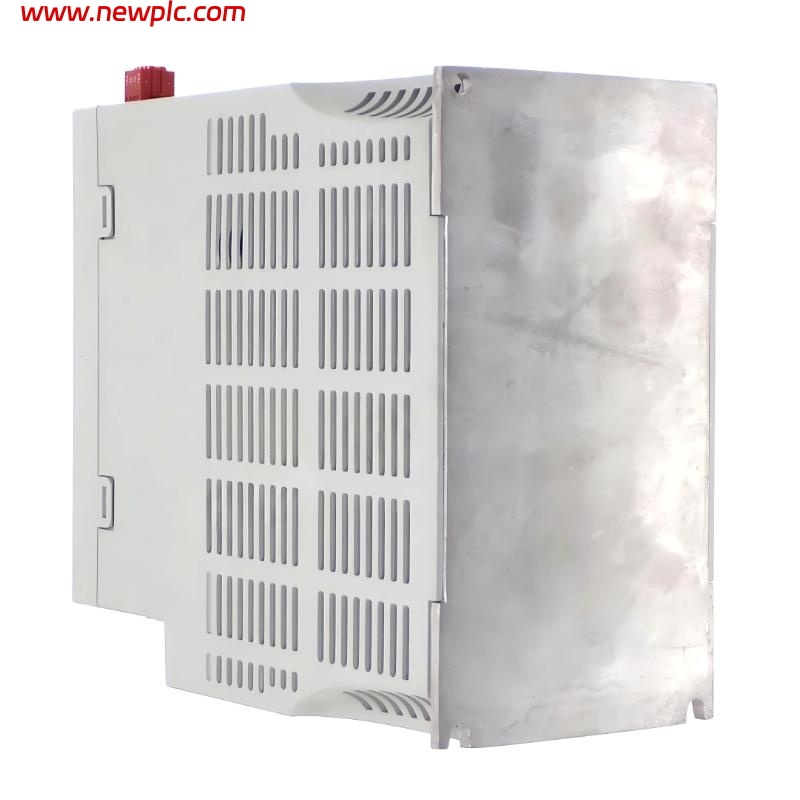

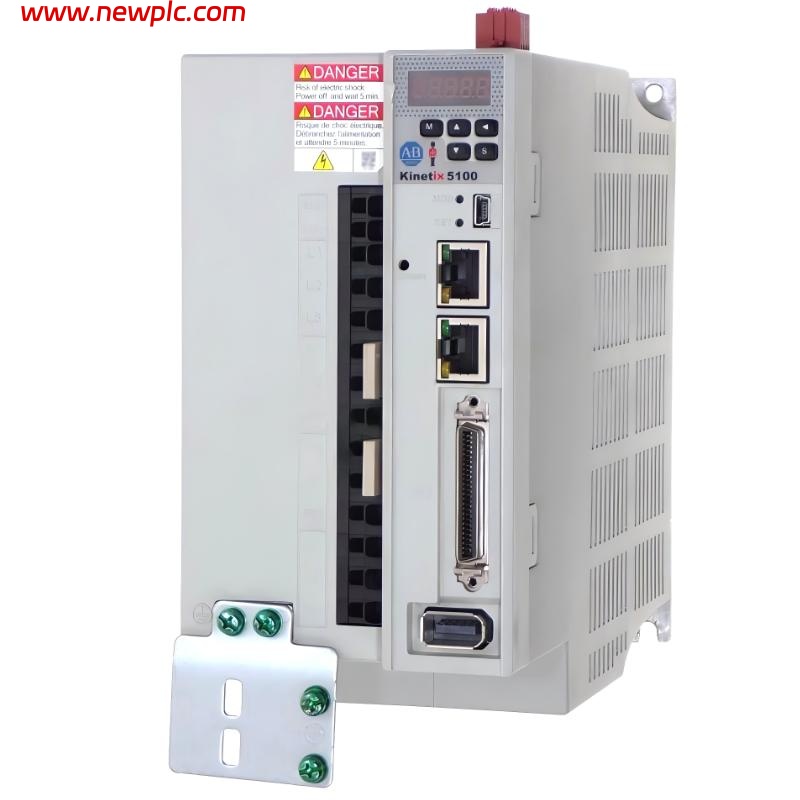

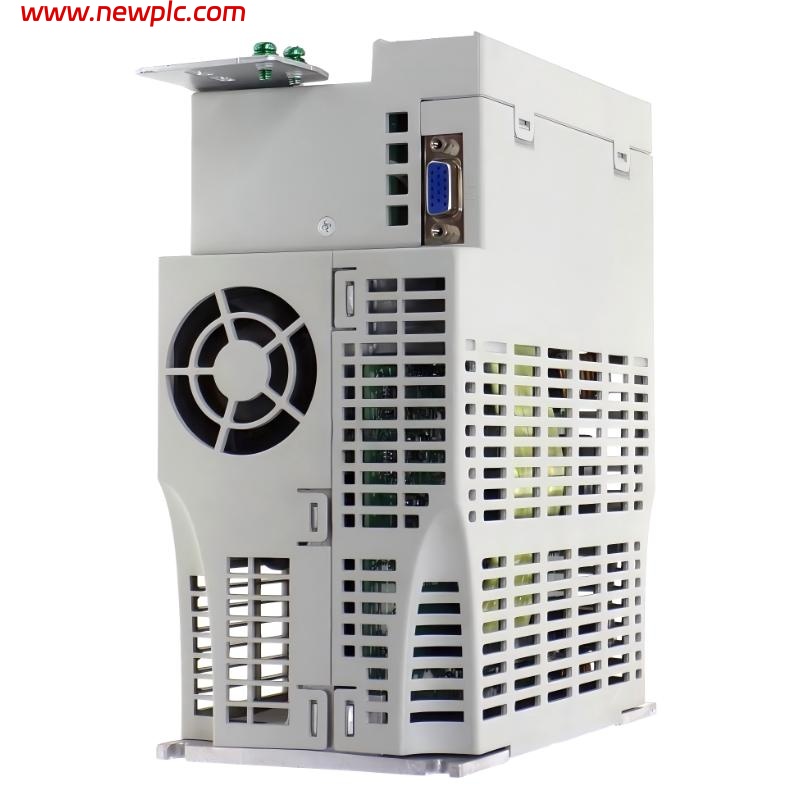

| Model | Allen-Bradley 2198-E4015-ERS |
| Series | Kinetix 5100 |
| Function | Servo motor speed, torque, and position control |
| Axis Configuration | Single-axis |
| Input Voltage | 400 V AC class (3-phase, 380–480 V typical) |
| Input Frequency | 47–63 Hz |
| Output Power | 1.5 kW |
| Continuous Output Current | 6.05 A |
| Peak Output Current | 15.11 A |
| Communication | EtherNet/IP (dual RJ45 ports, DLR support) |
| Safety Function | STO (Safe Torque Off), hardwired |
| Control Modes | Indexing, position, speed, torque |
| Feedback Support | Servo encoder feedback (Kinetix 5100 compatible motors) |
| I/O | Built-in digital and analog I/O |
| Protection Rating | IP20 (panel mount) |
| Mounting Type | Cabinet / panel mount |
| Cooling Method | Forced air cooling |
| Operating Temperature | 0 to 50 °C |
| Dimensions (H × W × D) | ~95 × 208 × 180 mm |
| Weight | ~2.7–3.6 kg |
FAQ
FAQ
Q1. What is the 2198-E4015-ERS used for?
It is a Kinetix 5100 servo drive used to control a single servo motor in industrial automation systems.
Q2. What is its power rating?
It provides 1.5 kW output power with around 6.05 A continuous current.
Q3. What type of power supply does it use?
It uses a 400 V class AC input (typically 380–480 V three-phase).
Q4. What communication does it support?
It supports EtherNet/IP with dual Ethernet ports and Device Level Ring (DLR) network capability.
Q5. Does it include safety functions?
Yes, it includes Safe Torque Off (STO) for functional safety applications.
Q6. Can it operate without a PLC?
Yes, it supports standalone indexing and basic motion control without a PLC.
Q7. What applications is it typically used in?
It is used in light-to-medium automation such as conveyors, packaging machines, and small motion systems.
Q8. What are its size and weight?
Its typical size is about 95 × 208 × 180 mm, with a weight between 2.7 and 3.6 kg depending on configuration.
