Technical Specifications
| Parameter | Specification |
|---|---|

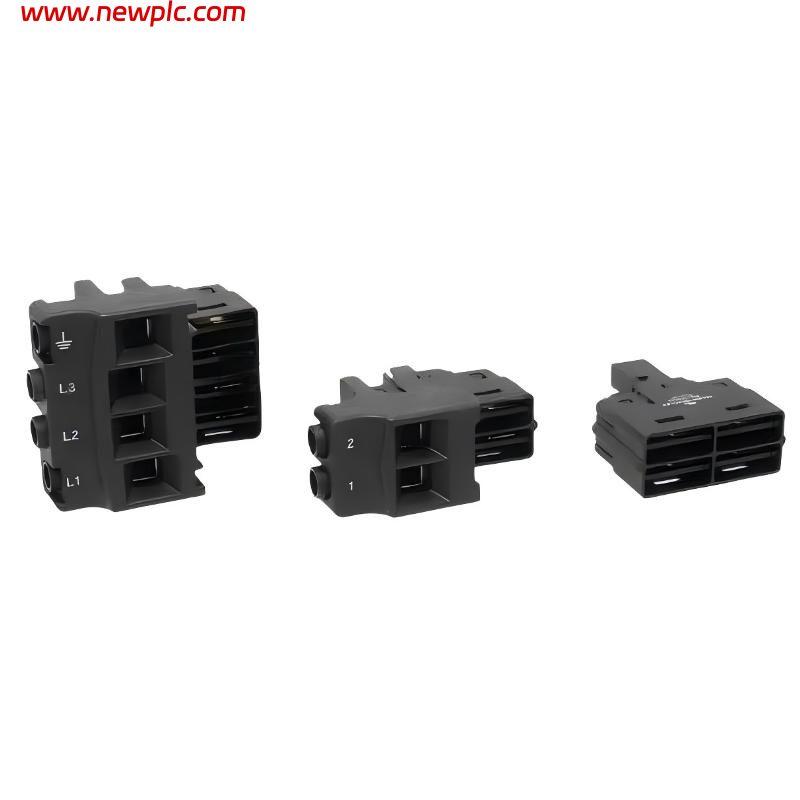

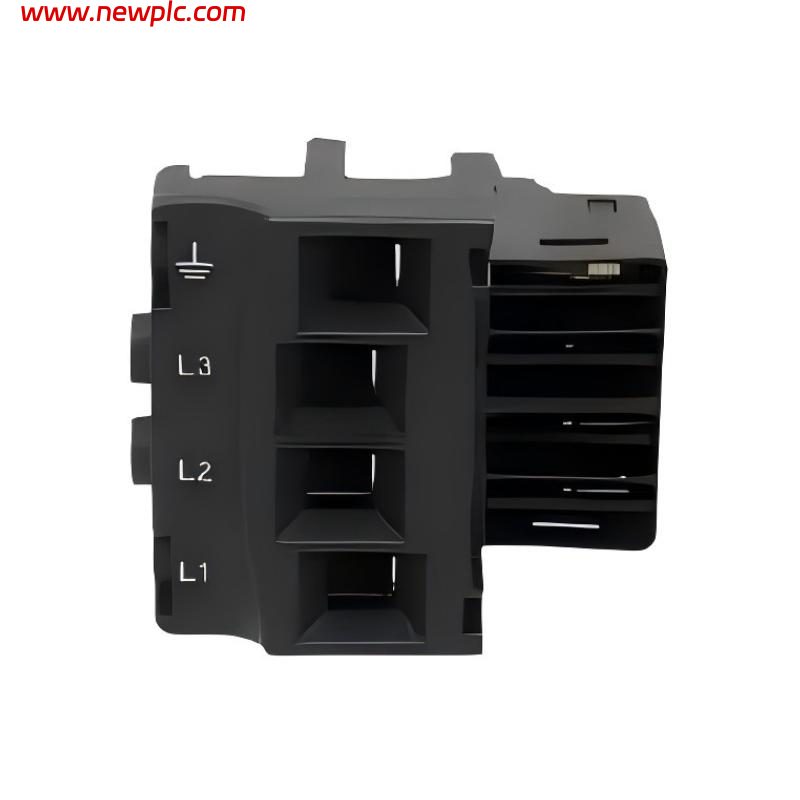

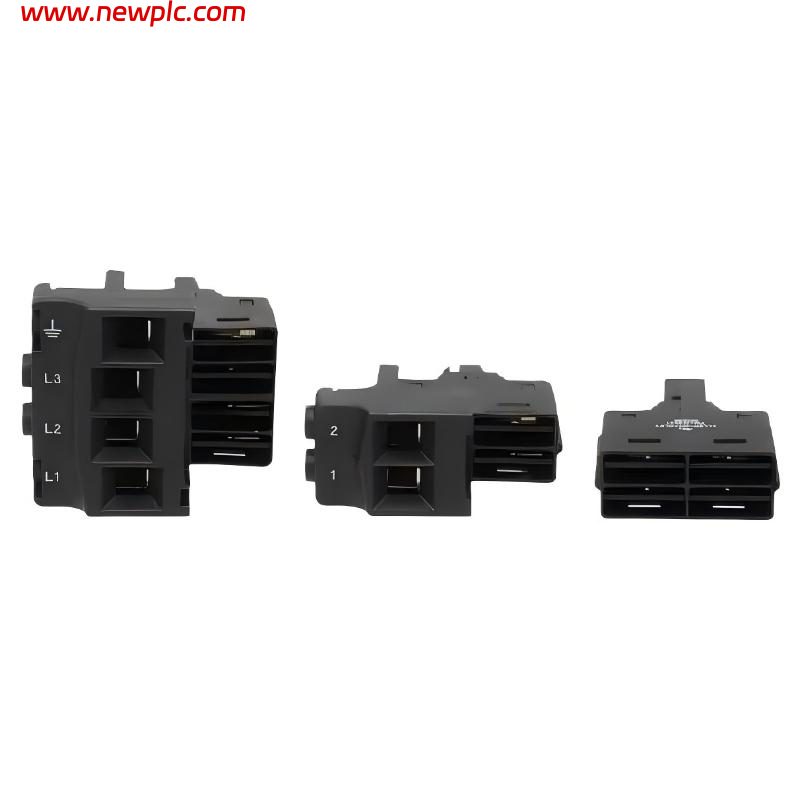

| Product Name | Allen-Bradley Kinetix 5500 Servo Connector Kit |
| Model Number | 2198-H040-ADP-IN |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Kinetix 5500 |
| Product Type | Servo Drive Power & Bus Connector Kit |
| Function | AC Input, DC Bus, Control Power Connection |
| Application Position | First drive in multi-axis system |
| Compatible Frame Size | Frame 1 and Frame 2 |
| Included Components | AC input connector, DC bus T-connector, control power input connector |
| System Type | Shared bus architecture |
| Installation Type | Plug-in connector system |
| Wiring Function | Power distribution between drives |
| Voltage Class | 200–400V class Kinetix 5500 systems |
| Mounting Method | Direct drive-side connector mounting |
| Material | Industrial-grade polymer and conductive contacts |
| Protection Rating | IP20 (system dependent on enclosure) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5–95% non-condensing |
| Certifications | UL, CE, CSA (system dependent) |
| Dimensions | Approx. 55 mm connector width (frame dependent) |
| Weight | Approx. 0.1 kg |
| Application | Servo drive power distribution in multi-axis Kinetix 5500 systems |
FAQ
FAQ
Q1: What is the Allen-Bradley 2198-H040-ADP-IN used for?
The 2198-H040-ADP-IN is a Kinetix 5500 connector kit used to distribute AC input power, DC bus power, and control power in a multi-axis servo drive system.
Q2: Which systems are compatible with the 2198-H040-ADP-IN?
It is designed for Kinetix 5500 servo drives, specifically Frame 1 and Frame 2 configurations in multi-axis setups.
Q3: What components are included in the 2198-H040-ADP-IN kit?
It includes an AC input connector, DC bus T-connector, and control power input connector for the first drive in a system.
Q4: What is the main purpose of this connector kit?
It simplifies wiring and enables a shared-bus architecture, reducing cabinet space and installation time.
Q5: Is the 2198-H040-ADP-IN an electronic device?
No, it is a passive connector accessory with no active electronics.
Q6: Can this kit be used for follower drives?
No, it is specifically intended for the first drive in a multi-axis Kinetix 5500 system; different kits are used for follower drives.
Q7: What are the operating conditions for this product?
It typically operates in industrial environments from 0°C to 50°C with up to 95% non-condensing humidity.
Q8: What is the advantage of using this connector system?
It reduces wiring complexity, improves installation speed, and supports compact multi-axis servo system design.
