Technical Specifications
| Parameter | Specification |
|---|---|

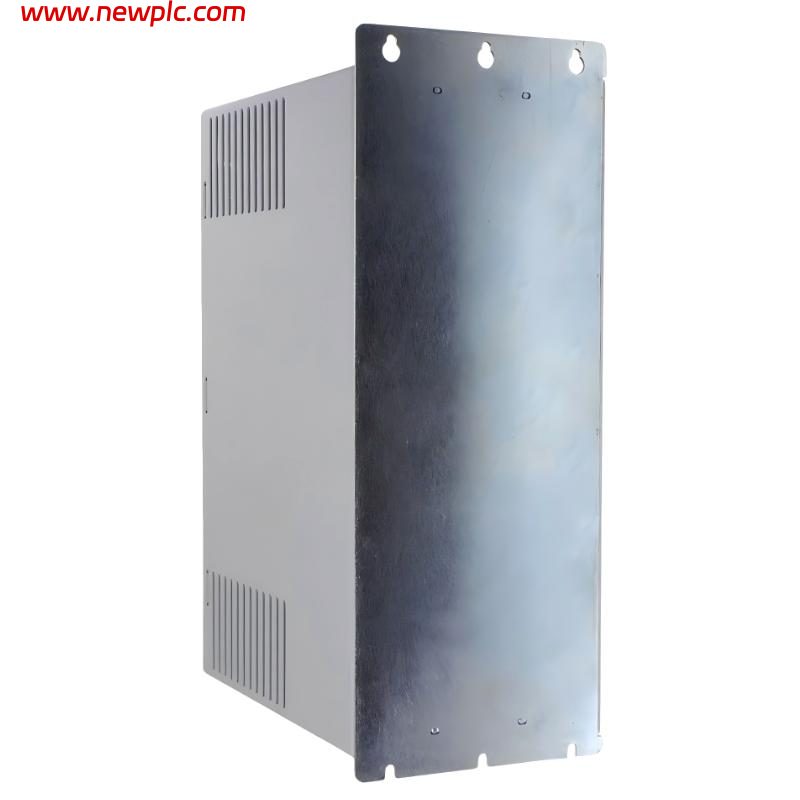

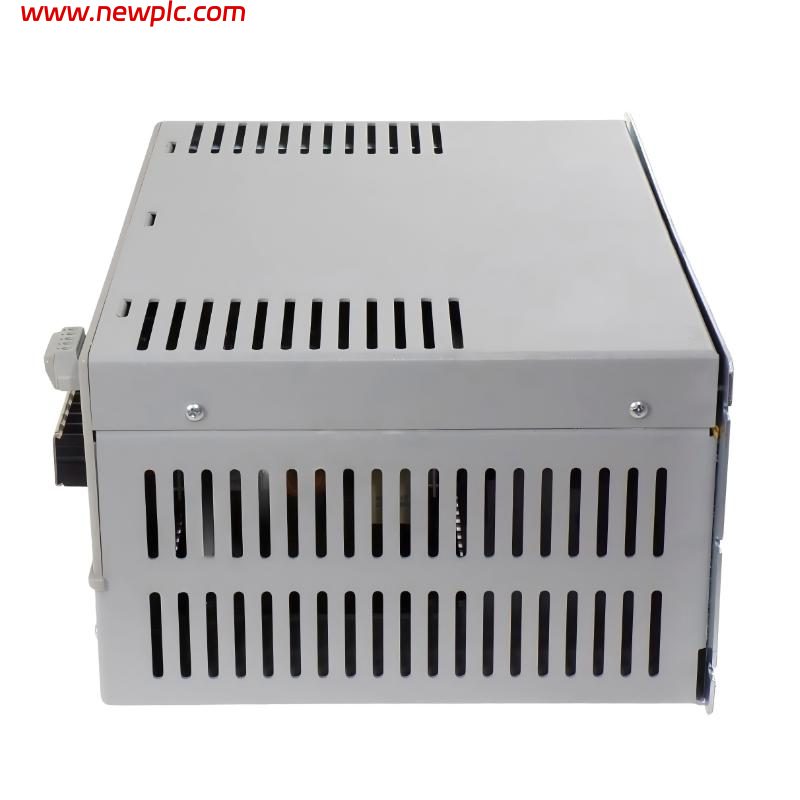

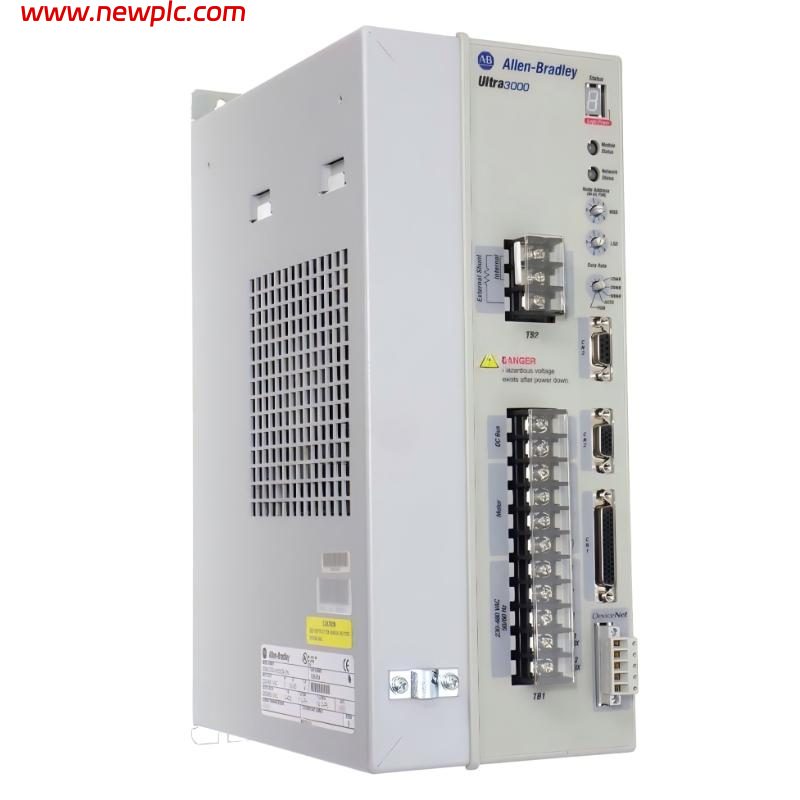

| Product Name | Allen-Bradley Ultra 3000 Digital Servo Drive |
| Model Number | 2098-DSD-HV030X-DN |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Ultra 3000 |
| Product Type | Digital Servo Drive |
| Drive Type | High-Voltage Servo Drive |
| Input Voltage | 230–480V AC Three-Phase |
| Input Frequency | 47–63 Hz |
| Continuous Output Power | 3.0 kW |
| Continuous Output Current | ~7 A RMS (typical HV030 class) |
| Peak Output Current | ~14 A RMS (typical HV030 class) |
| Communication Interface | DeviceNet |
| Control Architecture | Digital servo control |
| Feedback Support | Encoder-based servo feedback |
| Indexing Function | Supported |
| Safe Torque-Off | Not integrated |
| Auxiliary Power Input | 12/24V DC control supply required |
| Internal Shunt Regulator | Integrated |
| Cooling Method | Forced air cooling |
| Mounting Type | Panel mount |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5–95% non-condensing |
| Certifications | CE, UL, CSA |
| Dimensions | Approx. 362 × 244 × 91 mm |
| Weight | Approx. 8.5–9.5 kg |
| Lifecycle Status | Discontinued |
| Replacement Option | 2198-E4015-ERS (Kinetix migration platform) |
| Application | Industrial servo motion control systems |
FAQ
FAQ
Q1: What is the Allen-Bradley 2098-DSD-HV030X-DN used for?
The 2098-DSD-HV030X-DN is an Ultra 3000 high-voltage servo drive used for controlling servo motors in industrial automation systems such as packaging equipment, conveyors, and positioning machinery.
Q2: What communication protocol does the 2098-DSD-HV030X-DN support?
It uses the DeviceNet communication interface for integration with PLC-based automation systems.
Q3: What is the power rating of this drive?
It is a 3 kW class servo drive designed for medium-duty industrial motion applications.
Q4: What input voltage does the 2098-DSD-HV030X-DN require?
The drive operates on a 230–480V AC three-phase power supply.
Q5: Does the 2098-DSD-HV030X-DN support indexing functions?
Yes, it includes built-in indexing capability for point-to-point motion control.
Q6: Is the 2098-DSD-HV030X-DN still available?
No, it is discontinued by Rockwell Automation as part of the Ultra 3000 lifecycle.
Q7: What are the dimensions and weight of the unit?
The drive is approximately 362 × 244 × 91 mm and weighs around 8.5–9.5 kg depending on configuration.
Q8: What applications commonly use this drive?
It is commonly used in industrial automation systems such as packaging machines, labeling systems, conveyors, and coordinated motion control equipment.
