Technical Specifications
| Parameter | Specification |
|---|---|

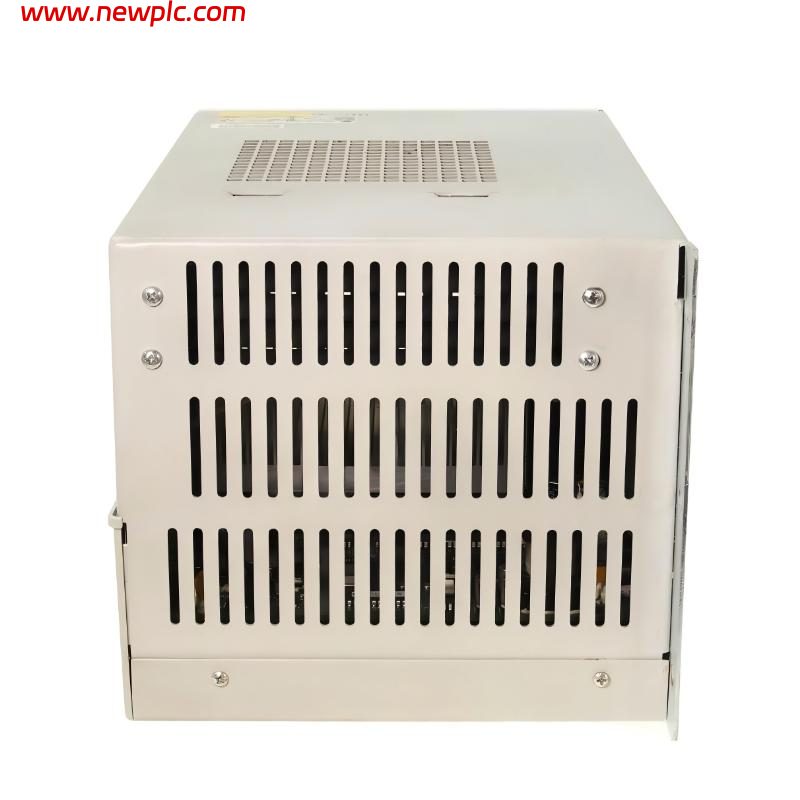

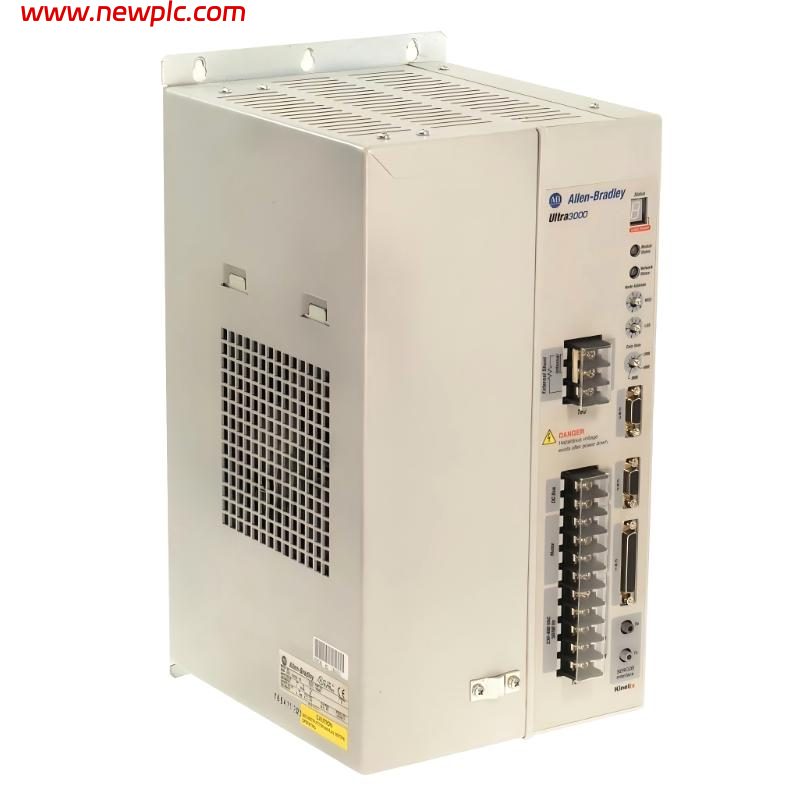

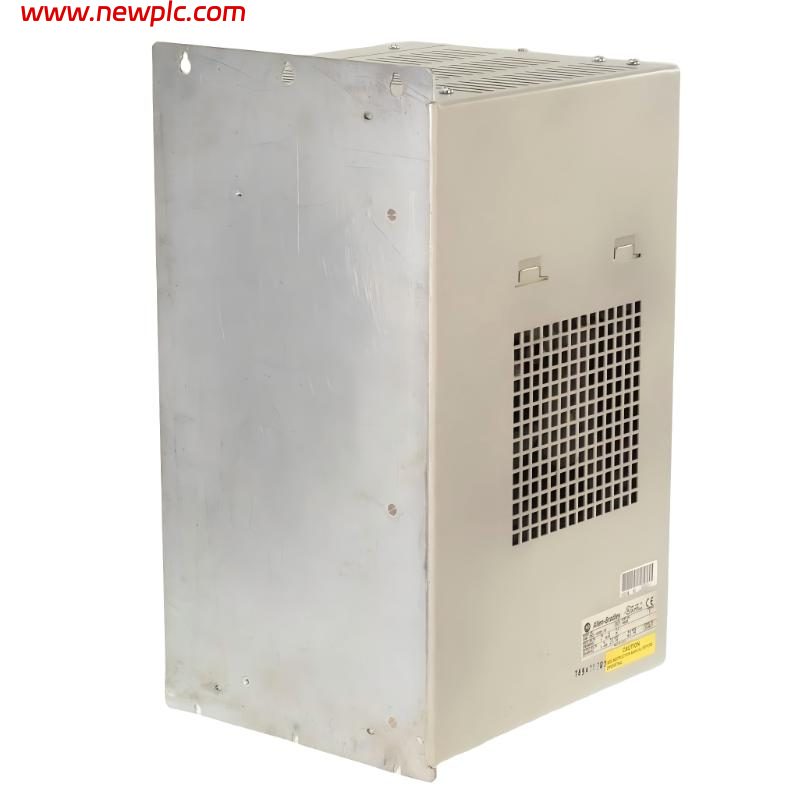

| Product Name | Allen-Bradley Ultra 3000 High-Voltage Digital Servo Drive |
| Model Number | 2098-DSD-HV220-SE |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Ultra 3000 |
| Product Type | High-Power Digital Servo Drive |
| Drive Type | SERCOS Interface Servo Drive |
| Input Voltage | 230–480V AC Three-Phase |
| Input Frequency | 47–63 Hz |
| Continuous Output Current | 47 A (0-peak) |
| Peak Output Current | 94 A (0-peak) |
| Continuous Output Power | ~22 kW |
| Control Supply | 12/24V DC auxiliary power required |
| Communication Interface | SERCOS fiber-optic |
| Feedback Support | Encoder / high-resolution feedback systems |
| Bus Voltage | Up to ~810 VDC |
| Shunt Regulator | Integrated |
| Internal Shunt Resistance | ~20 Ω |
| Cooling Method | Forced air cooling |
| Mounting Type | Panel mount |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5–95% non-condensing |
| Certifications | CE, UL, CSA |
| Dimensions | Approx. 392 × 244 × 203 mm |
| Weight | Approx. 14–16 kg |
| Lifecycle Status | Discontinued |
| Replacement Option | 2198-E4075-ERS (Kinetix series equivalent migration) |
| Application | High-power multi-axis industrial servo motion systems |
FAQ
FAQ
Q1: What is the Allen-Bradley 2098-DSD-HV220-SE used for?
The 2098-DSD-HV220-SE is a high-power Ultra 3000 servo drive used for demanding industrial motion control applications such as heavy-duty conveyors, packaging lines, robotics, and synchronized multi-axis systems.
Q2: What is the power rating of the 2098-DSD-HV220-SE?
It is a 22 kW class servo drive, delivering approximately 47 A continuous output current and up to 94 A peak output current.
Q3: What input voltage does this drive require?
It operates on a 230–480V AC three-phase power supply with a 47–63 Hz frequency range.
Q4: Does the 2098-DSD-HV220-SE use SERCOS communication?
Yes, it uses a SERCOS fiber-optic interface for high-speed, synchronized motion control in multi-axis systems.
Q5: Is auxiliary power required for this drive?
Yes, it requires an external 12/24V DC control power supply for proper operation of control electronics.
Q6: Is the 2098-DSD-HV220-SE still in production?
No, it has been discontinued by Rockwell Automation as part of the Ultra 3000 lifecycle, with migration typically toward Kinetix 6000/5700 systems.
Q7: What are the dimensions and weight of the unit?
The drive is approximately 392 × 244 × 203 mm and typically weighs around 14–16 kg depending on configuration.
Q8: What applications commonly use this servo drive?
It is used in high-power industrial automation systems including packaging machinery, heavy material handling, printing lines, robotics, and coordinated motion platforms.
