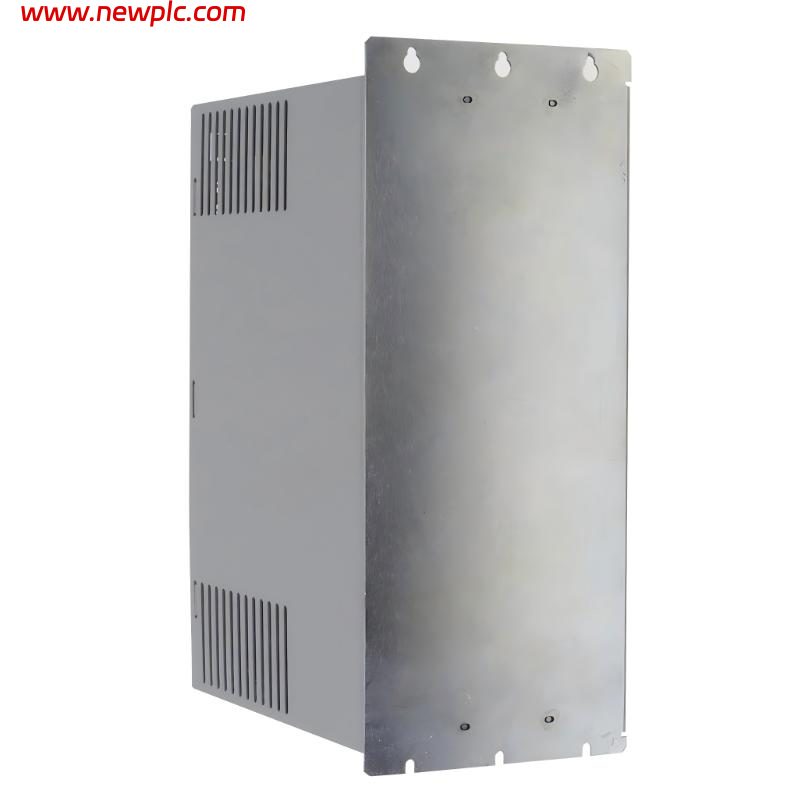

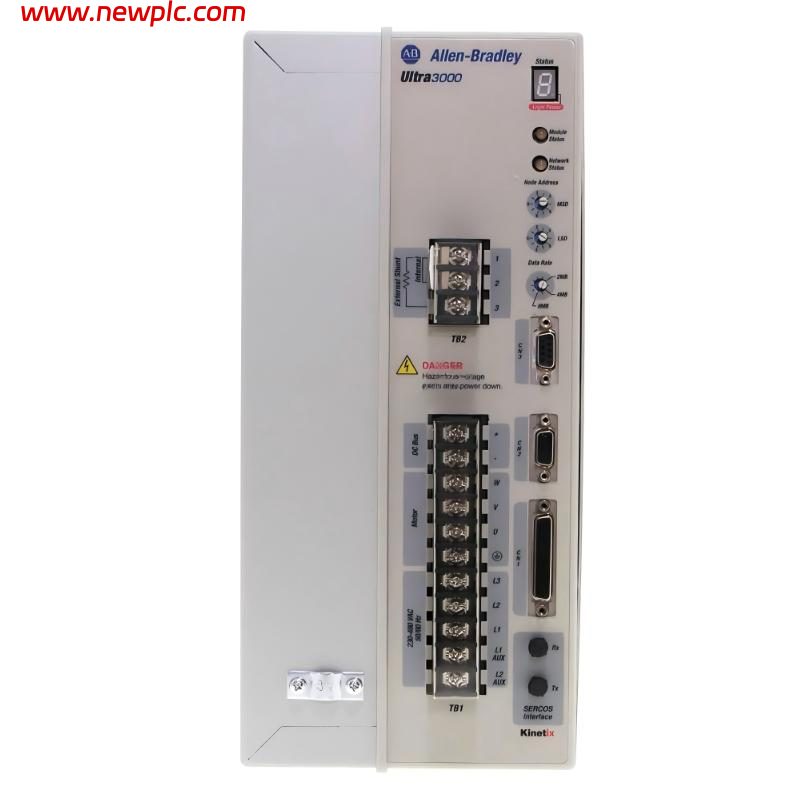

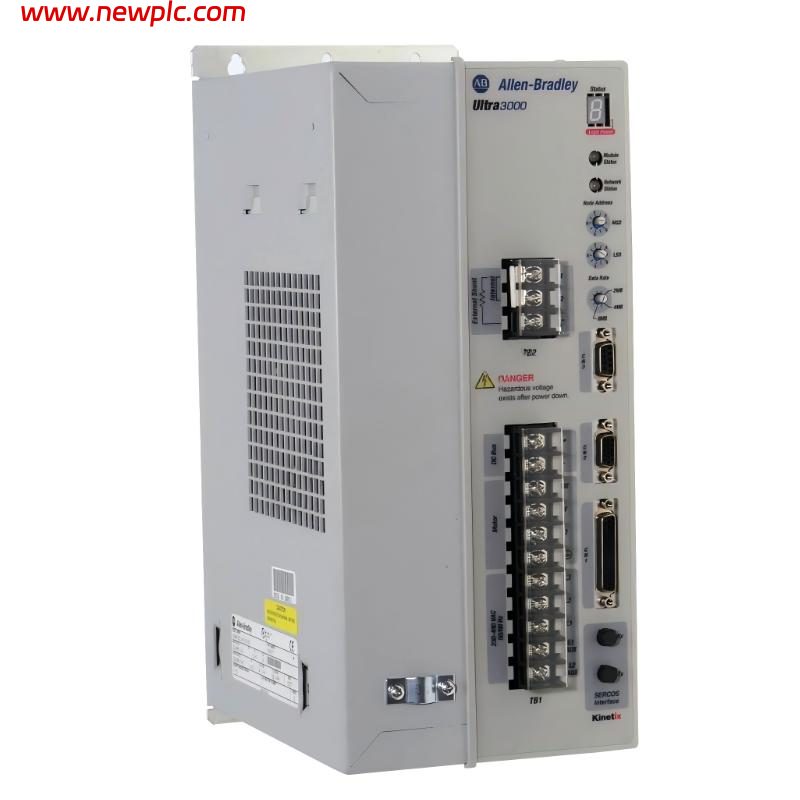

Allen Bradley 2098-DSD-HV150-SE Digital Servo Drive

FAQ

Q1: What is the Allen-Bradley 2098-DSD-HV150-SE used for?
The 2098-DSD-HV150-SE is an Ultra 3000 high-voltage digital servo drive used for high-power motion control applications such as packaging lines, robotics, heavy conveyors, and coordinated multi-axis systems.

Q2: What input voltage does the 2098-DSD-HV150-SE require?
It operates on a 230–480V AC three-phase industrial power supply with a frequency range of 47–63 Hz.

Q3: What is the output power level of this drive?
It typically supports around 7.5 kW at 230V AC and up to approximately 15 kW at 460V AC depending on system configuration.

Q4: Does the 2098-DSD-HV150-SE support SERCOS communication?
Yes, it uses a SERCOS fiber-optic interface for high-speed synchronized motion control in multi-axis systems.

Q5: Is the 2098-DSD-HV150-SE still manufactured?
No, it belongs to the discontinued Ultra 3000 series, with migration typically directed toward Kinetix 5700 or Kinetix 6000 platforms.

Q6: What is the approximate output current rating?
It is generally in the range of about 32 A continuous and up to 64 A peak (series-dependent rating within HV150 class).

Q7: What are the dimensions and weight of the unit?
The drive is approximately 362 × 244 × 91 mm and weighs around 10–11 kg.

Q8: What applications commonly use this drive?
It is commonly used in heavy-duty automation systems such as packaging machinery, industrial robotics, large conveyor systems, printing equipment, and synchronized motion platforms.
