Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Kinetix 5500 |

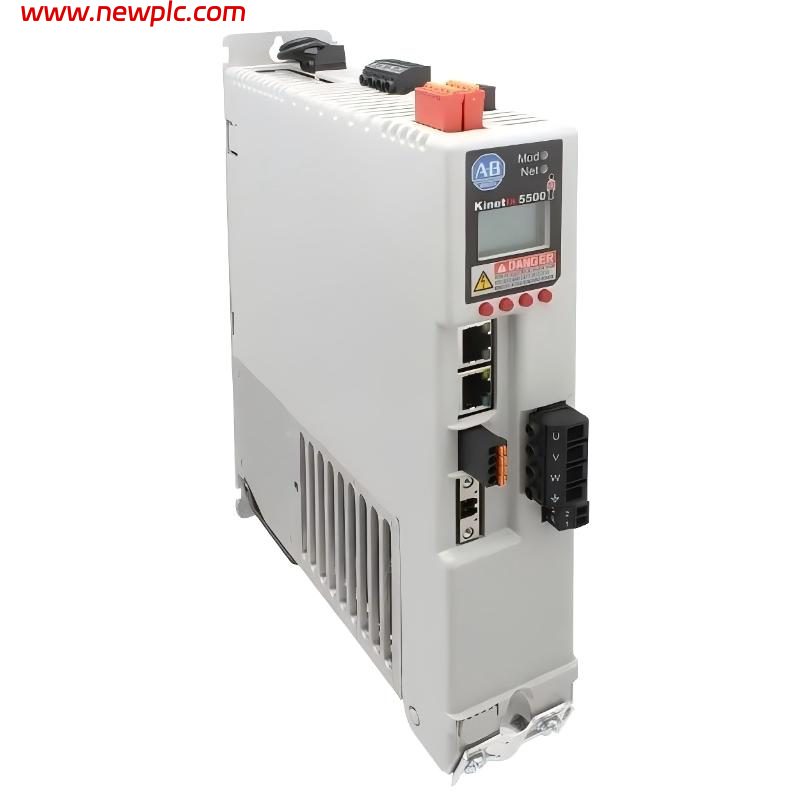

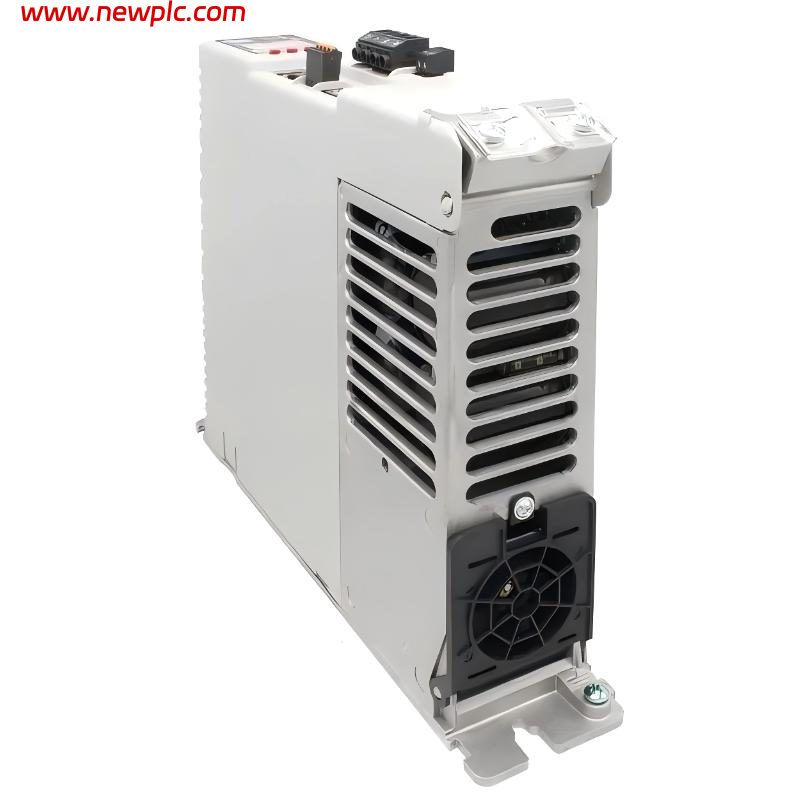

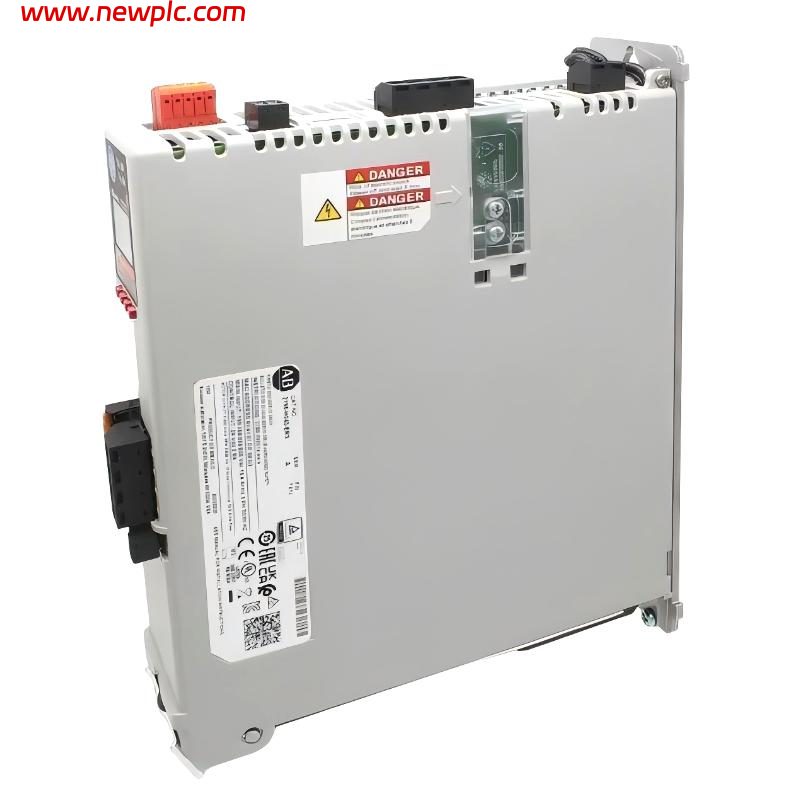

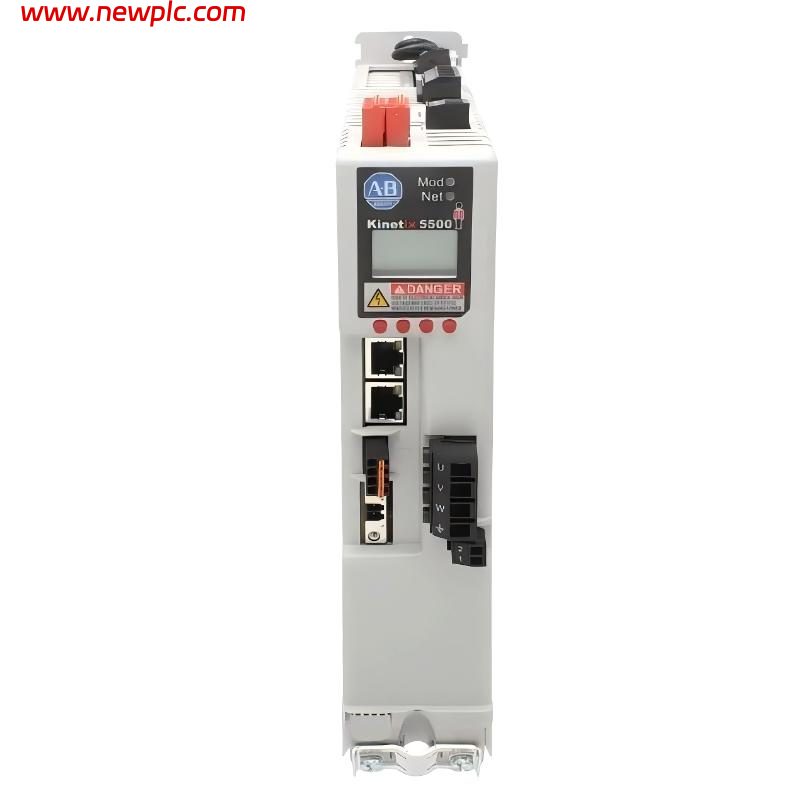

| Model Number | 2198-H040-ERS |
| Product Type | Servo Drive |
| Drive Function | EtherNet/IP Integrated Motion Servo Drive |
| Input Voltage | 195…264V AC / 324…528V AC |
| Nominal Voltage Class | 240V / 480V Class |
| Input Phase | 3-Phase |
| Input Frequency | 47…63 Hz |
| Continuous Output Current (RMS) | 13.0 A |
| Continuous Output Current (0-peak) | 18.4 A |
| Peak Output Current (RMS) | 32.5 A |
| Peak Output Current (0-peak) | 45.9 A |
| Continuous Output Power | 4.0 kW @ 240V / 8.3 kW @ 480V |
| Communication Protocol | EtherNet/IP |
| Ethernet Ports | Dual RJ45 EtherNet/IP Ports |
| Integrated Safety | Safe Torque-Off (STO) |
| Safety Rating | SIL 2 / PLd / Category 3 |
| Feedback Support | Single-cable Digital Feedback |
| Compatible Motors | MPL, MPM, MPF, MPS, LDAT, MP-Series Motors |
| Current Loop Bandwidth | 1000 Hz |
| Velocity Loop Bandwidth | 300 Hz |
| Efficiency | Up to 97% |
| Cooling Method | Forced Air Cooling |
| Mounting Type | Panel Mount |
| Frame Size | Frame 2 |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Certifications | UL, CE, KC, C-Tick, TÜV |
| Lifecycle Status | Active |
| Actual Dimensions (H × W × D) | 265 × 55 × 210 mm |
| Actual Weight | 2.3 kg |
| Typical Applications | Robotics, Packaging Machinery, Material Handling, Automated Assembly |
FAQ
FAQ
Q1: What is the Allen-Bradley 2198-H040-ERS used for?
A1: The 2198-H040-ERS is a Kinetix 5500 servo drive used for integrated motion control applications over EtherNet/IP networks.
Q2: What input voltage does the 2198-H040-ERS support?
A2: The drive supports 195…264V AC three-phase and 324…528V AC three-phase input power.
Q3: What is the continuous and peak current output of the 2198-H040-ERS?
A3: The drive provides 13.0 A RMS continuous output current and 32.5 A RMS peak output current.
Q4: Does the 2198-H040-ERS include integrated safety functions?
A4: Yes. The drive includes hardwired Safe Torque-Off (STO) safety functionality rated to SIL 2 / PLd / Category 3.
Q5: Which communication protocol does the 2198-H040-ERS support?
A5: The drive supports integrated motion communication using EtherNet/IP with dual Ethernet ports.
Q6: What are the actual dimensions of the 2198-H040-ERS?
A6: The actual dimensions are 265 × 55 × 210 mm (H × W × D).
Q7: What is the actual weight of the 2198-H040-ERS?
A7: The actual weight is approximately 2.3 kg.
Q8: What are common applications for the 2198-H040-ERS?
A8: Common applications include robotics, packaging machinery, automated assembly systems, conveyors, and high-performance industrial motion control systems.
