Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Kinetix 5700 Accessories |
| Model Number | 2198-KITCON-D057 |
| Product Type | Connector Kit |
| Accessory Type | Power and Feedback Connector Kit |
| Compatible Drives | Kinetix 5700 Dual-axis Servo Drives |
| Specifically Compatible Models | 2198-D057-ERSx Series |
| Included Components | Power Connectors, Feedback Connectors, Terminal Hardware |
| Connector Function | Motor Power, Feedback, Safety, and I/O Connections |
| Mounting Method | Plug-in Drive Connectors |
| Housing Material | Industrial-grade Thermoplastic |
| Connection Type | Screw Clamp / Plug-in Terminal |

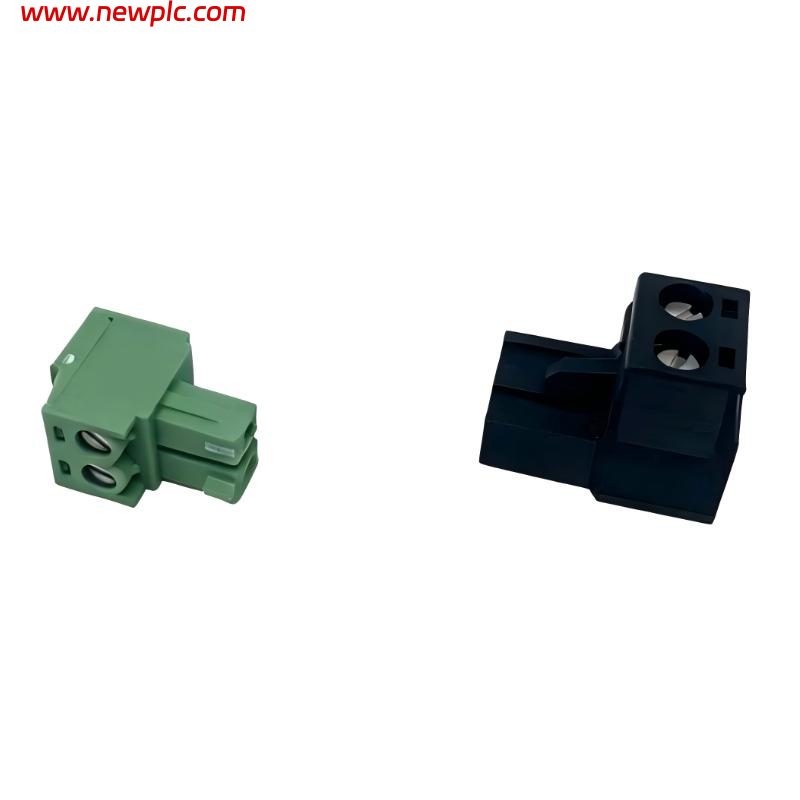

| Color | Black / Green |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Certifications | UL, CE |
| Lifecycle Status | Active |
| Actual Package Dimensions (L × W × H) | Approx. 230 × 160 × 50 mm |
| Actual Package Weight | Approx. 0.35 kg |
| Typical Applications | Servo Drive Installation, Replacement Connector Set, Industrial Motion Systems |
FAQ
FAQ
Q1: What is the Allen-Bradley 2198-KITCON-D057 used for?
A1: The 2198-KITCON-D057 is a connector kit designed for Kinetix 5700 dual-axis servo drives, providing the required removable connectors for power, feedback, safety, and I/O wiring.
Q2: Which drives are compatible with the 2198-KITCON-D057?
A2: The kit is specifically designed for Allen-Bradley Kinetix 5700 2198-D057-ERSx series dual-axis servo drives.
Q3: What connectors are included in the 2198-KITCON-D057 kit?
A3: The kit typically includes motor power connectors, feedback connectors, safety connectors, and terminal hardware required for drive installation.
Q4: Is the 2198-KITCON-D057 required for new drive installations?
A4: Yes. The connector kit is commonly required when installing or replacing compatible Kinetix 5700 servo drives.
Q5: What type of terminal connections are used in the kit?
A5: The connectors use industrial screw clamp and plug-in terminal connections.
Q6: What are the actual package dimensions of the 2198-KITCON-D057?
A6: The approximate package dimensions are 230 × 160 × 50 mm.
Q7: What is the actual package weight of the 2198-KITCON-D057?
A7: The approximate package weight is 0.35 kg.
Q8: What are common applications for the 2198-KITCON-D057?
A8: Common applications include Kinetix servo drive commissioning, industrial motion control installations, replacement connector maintenance, and OEM machine assembly.
