Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PowerFlex Communication Adapters |

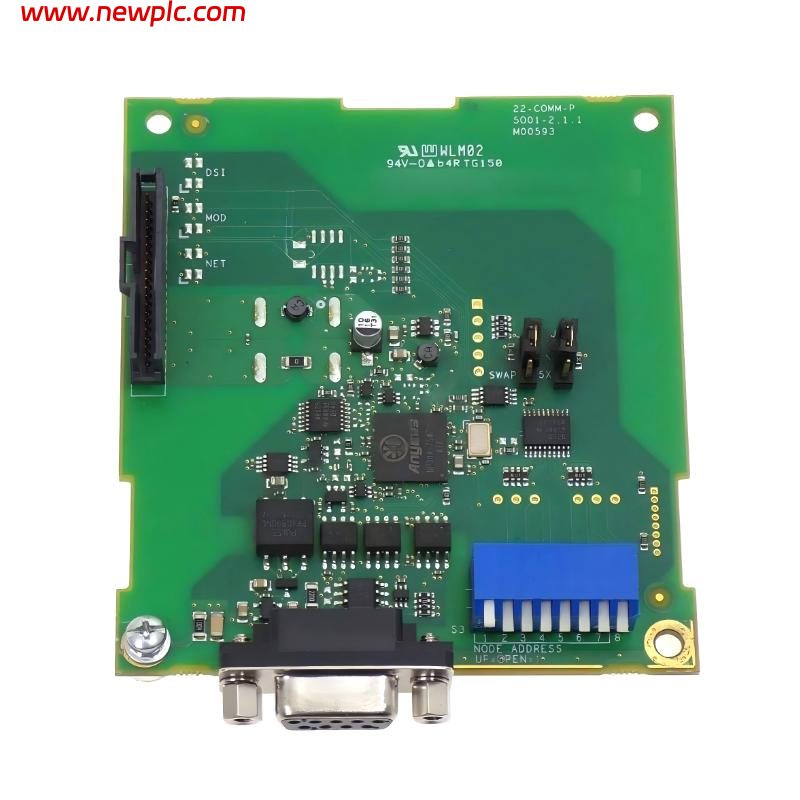

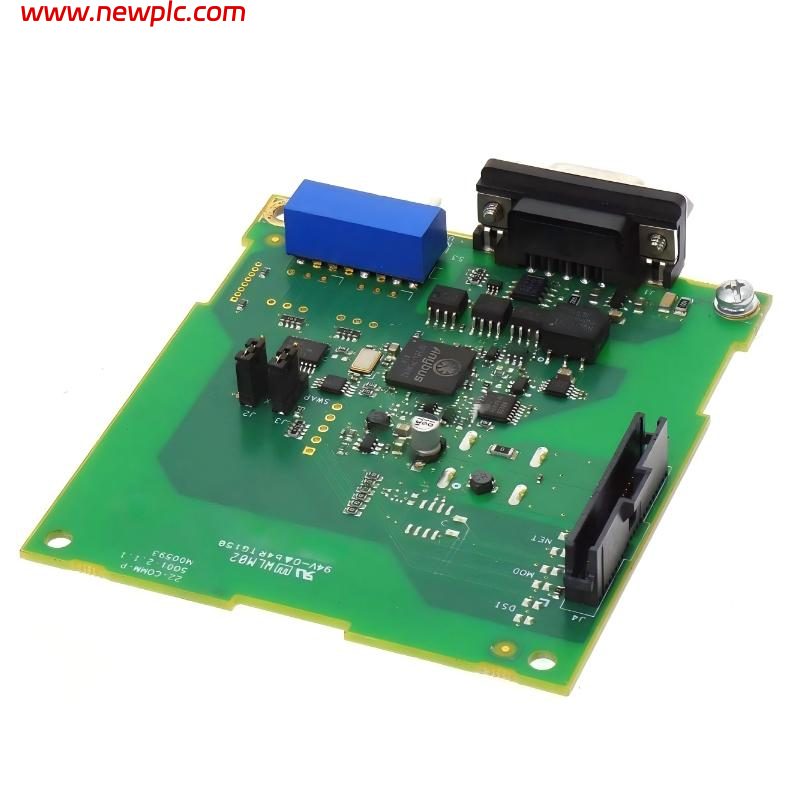

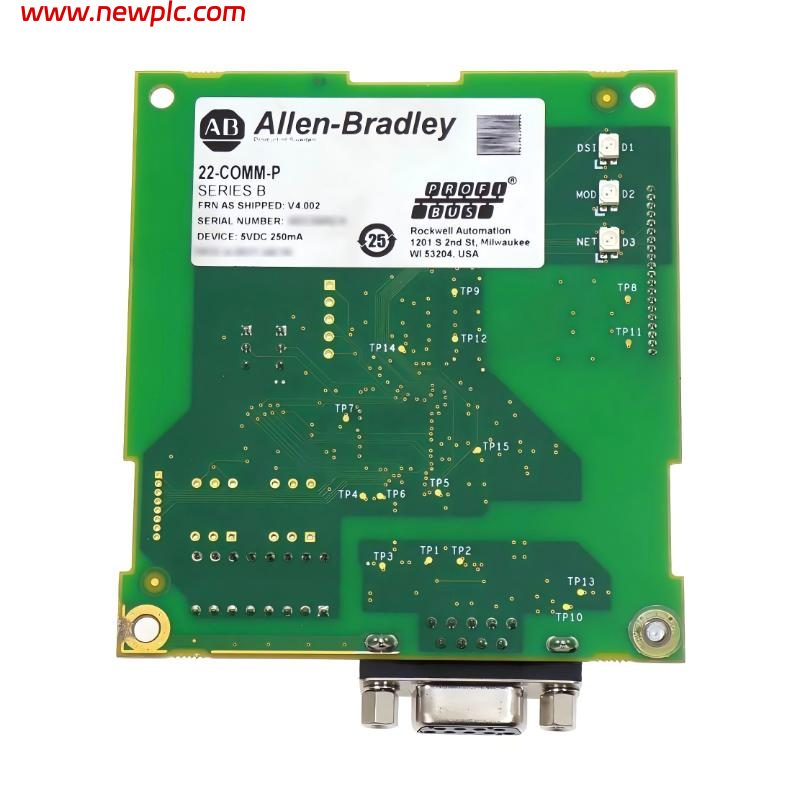

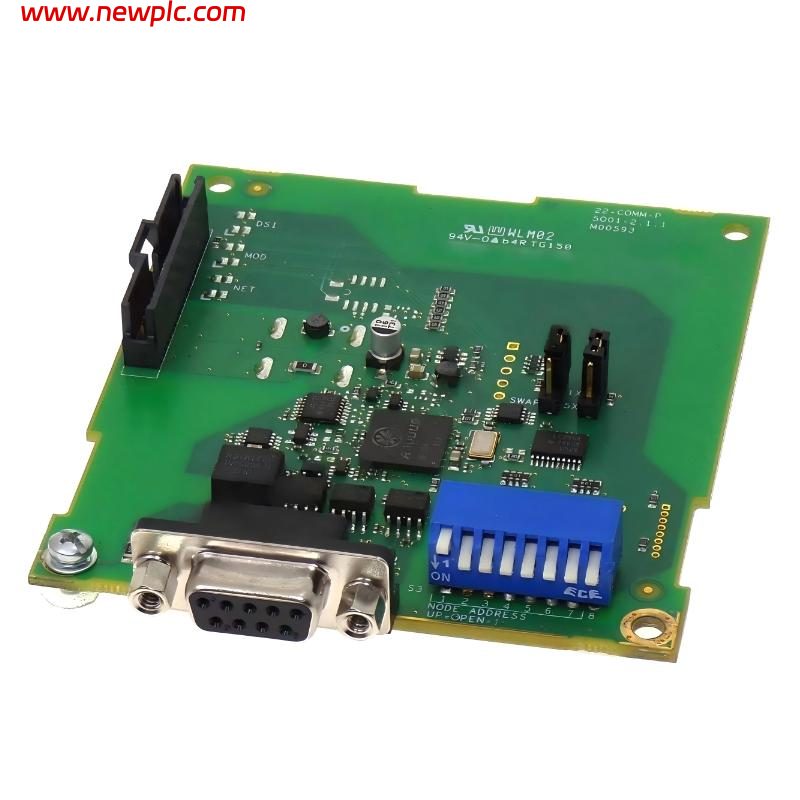

| Model Number | 22-COMM-P |
| Product Type | PROFIBUS DP Communication Adapter |
| Communication Protocol | PROFIBUS DP |
| Supported Drive Families | PowerFlex 4, 40, 40P, 400, 40P, 40P, 40P, 40P |
| Network Standard | PROFIBUS DP-V0 / DP-V1 |
| Data Transfer Rate | Up to 12 Mbps |
| Node Address Setting | Rotary Switch / Software Configuration |
| Connector Type | 9-pin D-Sub PROFIBUS Connector |
| Interface to Drive | DSI (Drive Serial Interface) |
| Mounting Type | Internal / Side-mounted Adapter |
| Status Indicators | Module Status LEDs |
| Configuration Support | RSLogix / Studio 5000 / DriveExplorer |
| Input Power | Powered by Host Drive |
| Isolation | Electrically Isolated Communication Interface |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Protection Rating | IP20 |
| Certifications | UL, CE, cUL |
| Lifecycle Status | Active / Mature |
| Actual Dimensions (H × W × D) | Approx. 90 × 40 × 25 mm |
| Actual Weight | Approx. 0.10 kg |
| Typical Applications | Industrial Networking, PLC Integration, Distributed Motor Control |
FAQ
FAQ
Q1: What is the Allen-Bradley 22-COMM-P used for?
A1: The 22-COMM-P is a PROFIBUS DP communication adapter used to connect Allen-Bradley PowerFlex drives to PROFIBUS industrial networks.
Q2: Which drives are compatible with the 22-COMM-P?
A2: The adapter is compatible with PowerFlex 4, 40, 40P, and 400 series AC drives.
Q3: What communication protocol does the 22-COMM-P support?
A3: The adapter supports PROFIBUS DP-V0 and DP-V1 communication standards.
Q4: What is the maximum communication speed of the 22-COMM-P?
A4: The adapter supports PROFIBUS communication speeds up to 12 Mbps.
Q5: How is the 22-COMM-P connected to the drive?
A5: The module connects through the DSI (Drive Serial Interface) port on compatible PowerFlex drives.
Q6: What are the actual dimensions and weight of the 22-COMM-P?
A6: The approximate dimensions are 90 × 40 × 25 mm (H × W × D) and the approximate weight is 0.10 kg.
Q7: Does the 22-COMM-P require an external power supply?
A7: No. The adapter is powered directly by the host PowerFlex drive.
Q8: What are common applications for the 22-COMM-P?
A8: Common applications include PLC integration, distributed motor control systems, industrial automation networks, process control systems, and factory automation.
