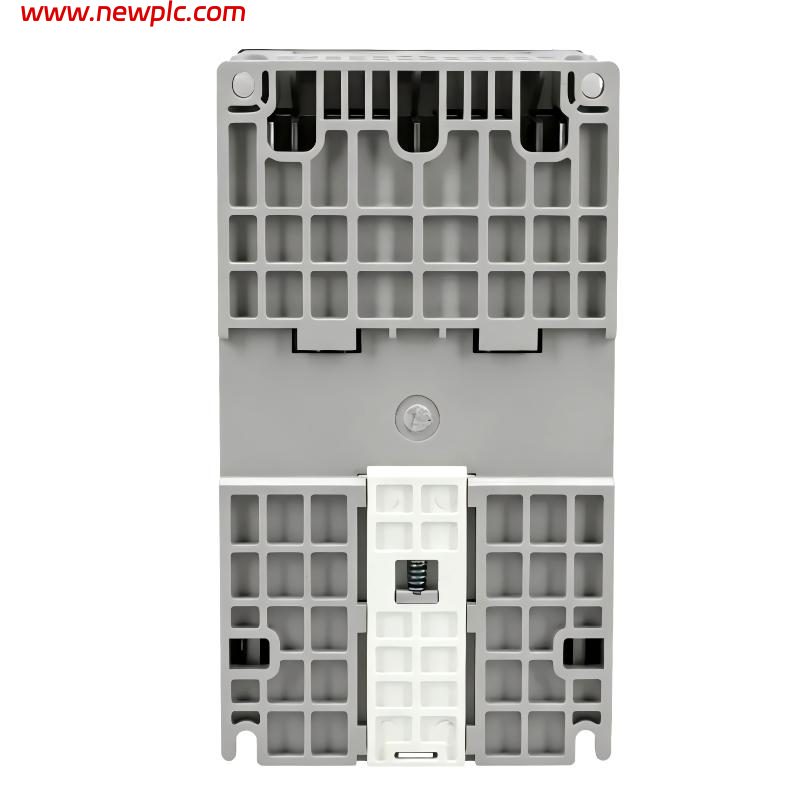

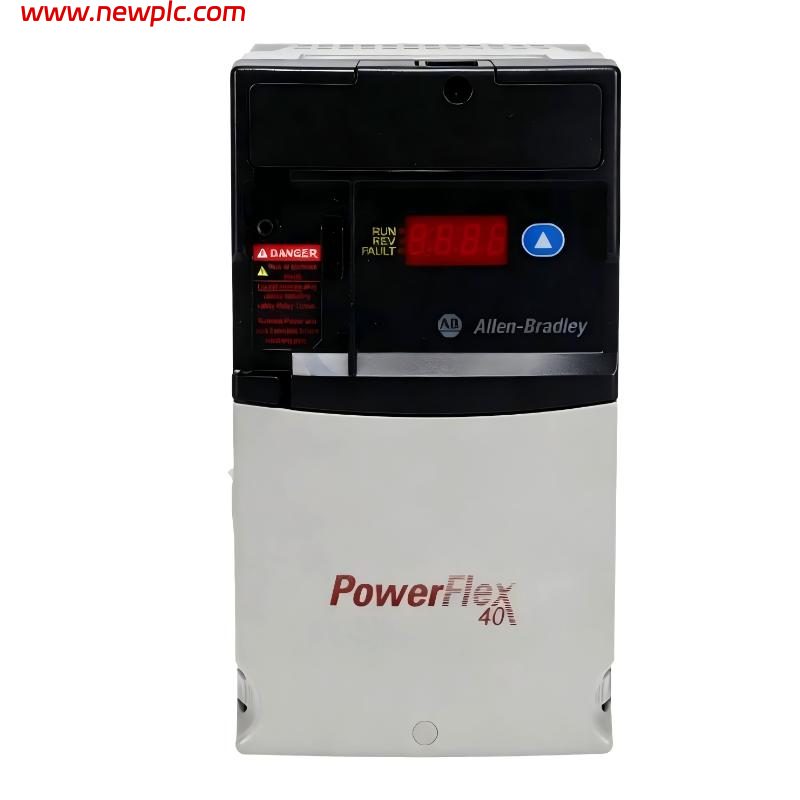

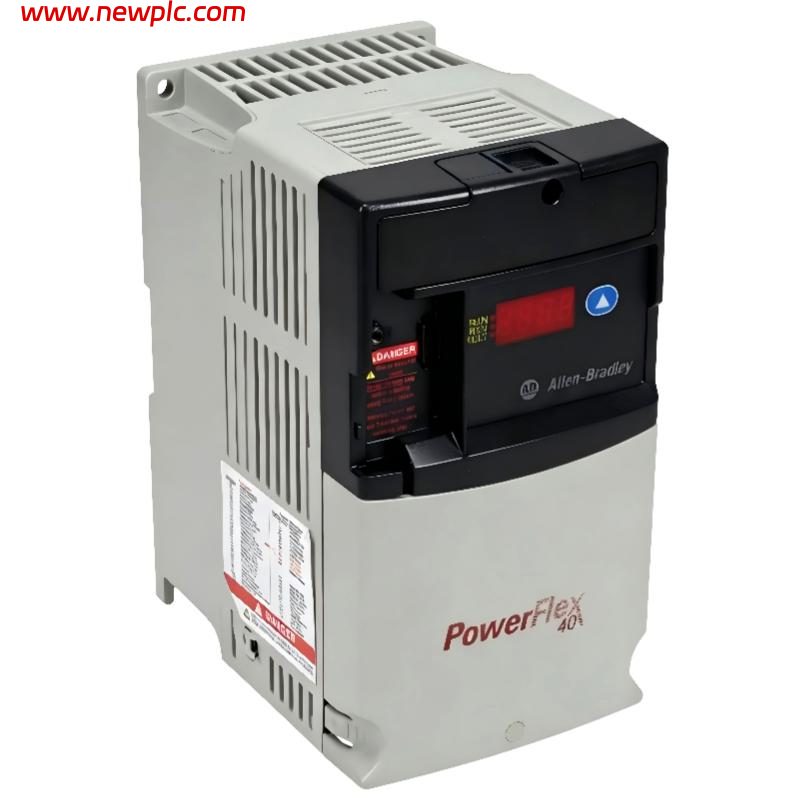

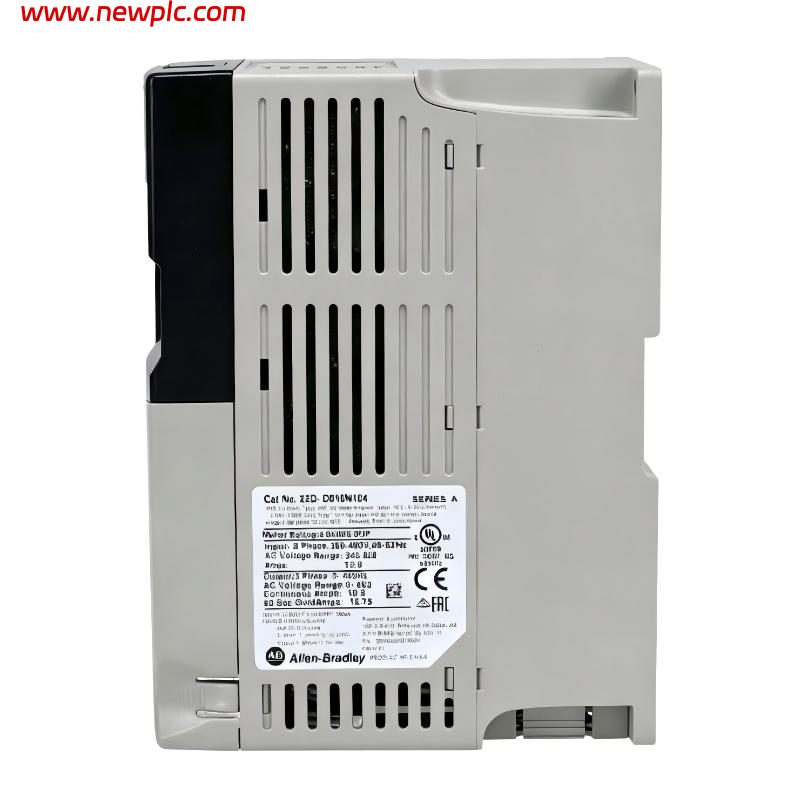

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PowerFlex 40P |
| Model Number | 22D-D010N104 |
| Product Type | AC Variable Frequency Drive (VFD) |
| Drive Function | Adjustable Frequency AC Drive |
| Input Voltage | 342…528V AC |
| Nominal Voltage Class | 480V Class |
| Input Phase | 3-Phase |
| Output Voltage | 0…460V AC |
| Output Phase | 3-Phase |
| Rated Output Current | 10.5 A |
| Input Current | 13.0 A |
| Power Rating | 4.0 kW / 5 HP |
| Input Frequency | 50/60 Hz |
| Output Frequency Range | 0…500 Hz |
| Enclosure Rating | IP20 / NEMA Type Open |
| Frame Size | B |
| Mounting Type | Panel Mount |
| Control Methods | V/Hz Control, Sensorless Vector Control |
| Built-in Communication | RS-485 |
| Optional Communication | EtherNet/IP, DeviceNet, PROFIBUS, BACnet, ControlNet, LonWorks |
| Integrated Brake Transistor | Yes (Brake IGBT Included) |
| EMC Filter | No CE-compliant Filter |
| Display | 4-digit LED Display with Reset |
| Digital Inputs | 7 |
| Analog Inputs | 1 |
| Analog Outputs | 1 |
| Relay Outputs | 1 Form C Relay |
| Cooling Method | Forced Air Cooling |
| Protection Features | Overcurrent, Overvoltage, Ground Fault, Motor Overload |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 0% to 95% Non-Condensing |
| Certifications | UL, cUL, CE, KC, C-Tick |
| Lifecycle Status | Current / Mature |
| Actual Dimensions (H × W × D) | Approx. 191 × 160 × 279 mm |
| Actual Weight | Approx. 2.16 kg |
| Typical Applications | Conveyors, Pumps, Fans, Packaging Machinery, Material Handling |
FAQ
FAQ
Q1: What is the Allen-Bradley 22D-D010N104 used for?
A1: The 22D-D010N104 is a PowerFlex 40P AC drive used for variable speed control of three-phase AC motors in industrial automation systems.
Q2: What is the power rating of the 22D-D010N104?
A2: The drive is rated for 4.0 kW (5 HP) with a rated output current of 10.5 A.
Q3: What input voltage does the 22D-D010N104 require?
A3: The drive operates on 342…528V AC three-phase input power, nominally 480V AC.
Q4: Does the 22D-D010N104 include an integrated brake transistor?
A4: Yes. The drive includes an integrated brake IGBT for dynamic braking applications.
Q5: What communication interfaces are supported by the 22D-D010N104?
A5: The drive includes built-in RS-485 communication and supports optional EtherNet/IP, DeviceNet, PROFIBUS, ControlNet, BACnet, and LonWorks adapters.
Q6: What are the actual dimensions and weight of the 22D-D010N104?
A6: The approximate dimensions are 191 × 160 × 279 mm (H × W × D) and the approximate weight is 2.16 kg.
Q7: What control methods are supported by the 22D-D010N104?
A7: The drive supports V/Hz control and sensorless vector control for improved speed and torque performance.
Q8: What are common applications for the 22D-D010N104?
A8: Common applications include conveyors, material handling systems, fans, pumps, packaging equipment, and textile machinery.
