Technical Specifications
| Item | Specification |
|---|---|

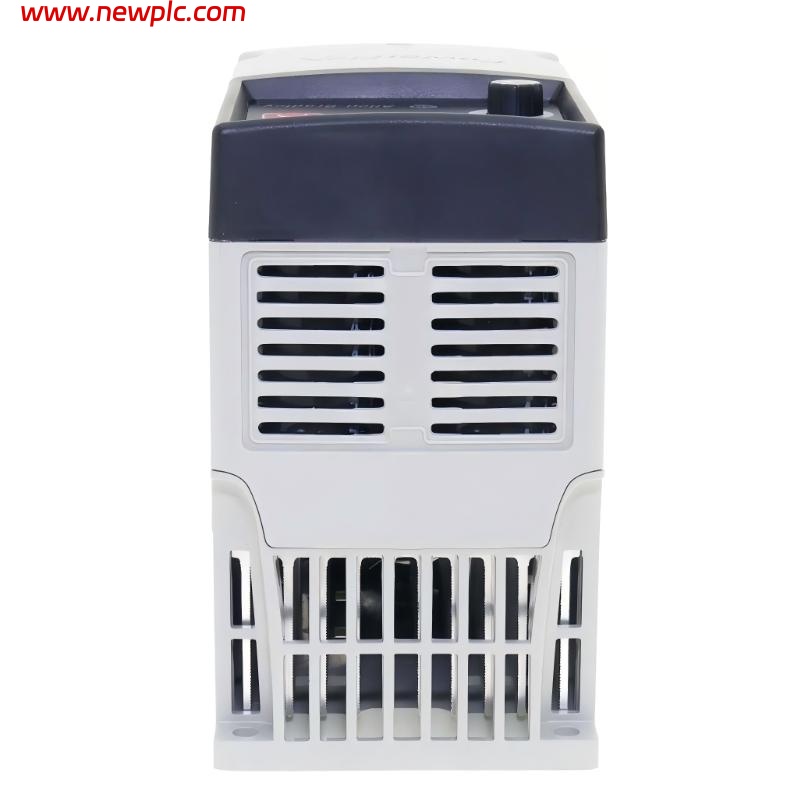

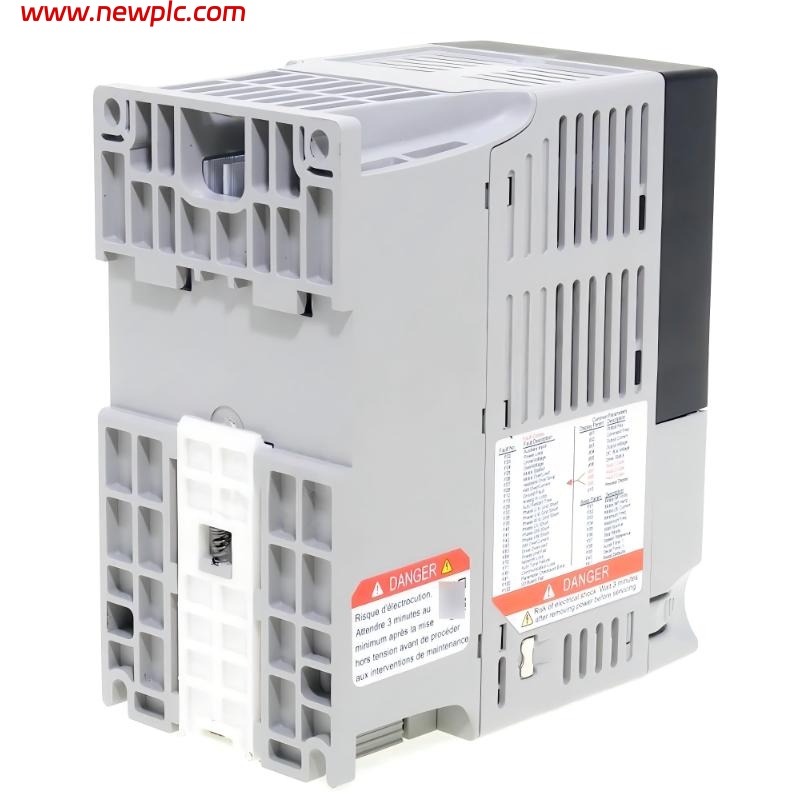

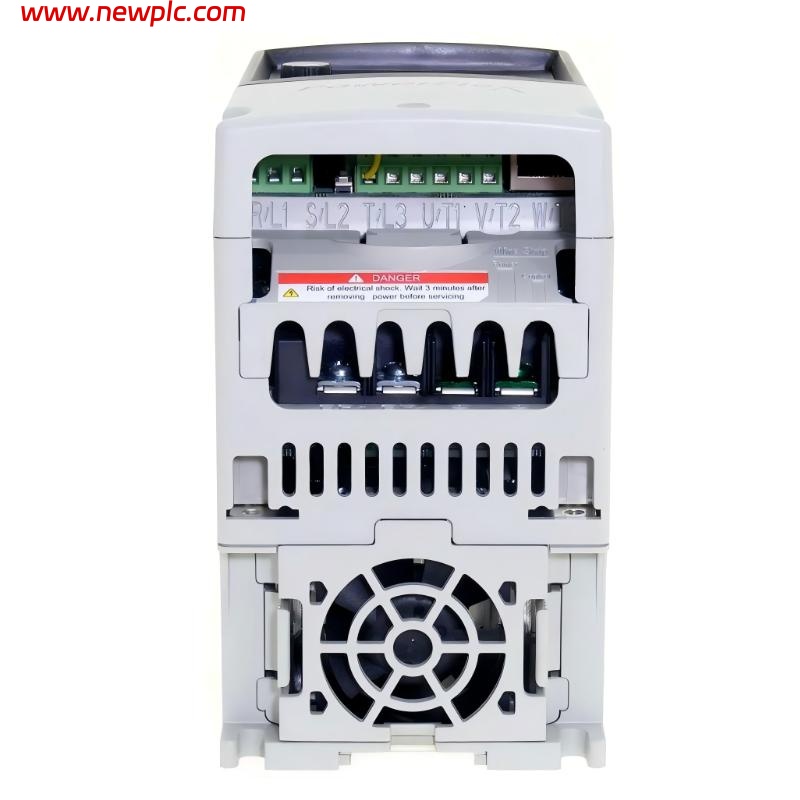

| Product Name | Allen-Bradley 22A-B8P0N104 |
| Product Series | PowerFlex 4 AC Drive |
| Product Type | Variable Frequency Drive (VFD) |
| Application | General-purpose motor speed control (fans, pumps, conveyors, industrial machinery) |
| Input Voltage | 200–240 V AC, three-phase |
| Output Voltage | 0–230 V AC, three-phase |
| Output Current | 8.0 A |
| Power Rating | 1.5 kW (2 HP) |
| Frequency Range | 0–240 Hz |
| Control Method | V/Hz control |
| Communication | RS-485 (Modbus RTU) |
| Protection Rating | IP20 (open type) |
| Mounting Type | Panel mount / DIN rail |
| Interface | Integral keypad with LED display |
| Dimensions (L × W × H) | 136 mm × 80 mm × 152 mm |
| Weight | 1.4 kg |
| Cooling Method | Natural convection |
| Operating Temperature | -10°C to +50°C |
FAQ
FAQ
Q1. What is the main function of the 22A-B8P0N104?
It is used to control the speed and operation of three-phase AC motors in industrial systems.
Q2. What type of input power does it require?
It operates on 200–240 V AC three-phase input.
Q3. What is the rated output capacity?
It provides 8.0 A output current and supports up to 1.5 kW (2 HP) motors.
Q4. What control method does it use?
It uses V/Hz control for reliable and simple motor speed regulation.
Q5. What are the exact physical dimensions?
The dimensions are 136 mm × 80 mm × 152 mm.
Q6. What is the weight of the device?
The weight is approximately 1.4 kg.
Q7. Does it support communication protocols?
Yes, it supports RS-485 communication using Modbus RTU.
Q8. Is this model still available?
No, it has been officially discontinued, and replacement models are recommended.
