Technical Specifications
| Item | Specification |
|---|---|

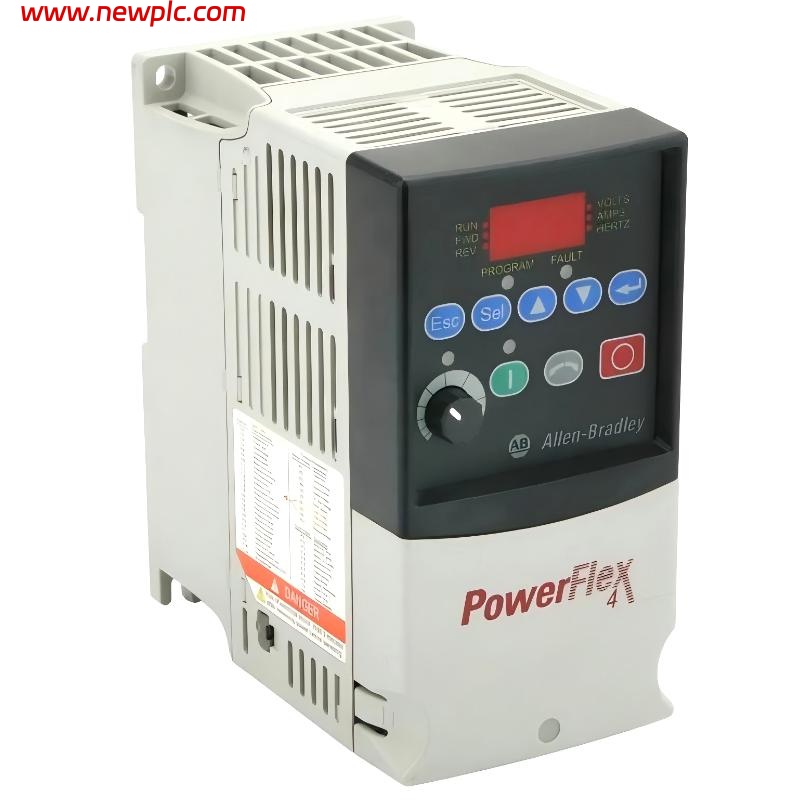

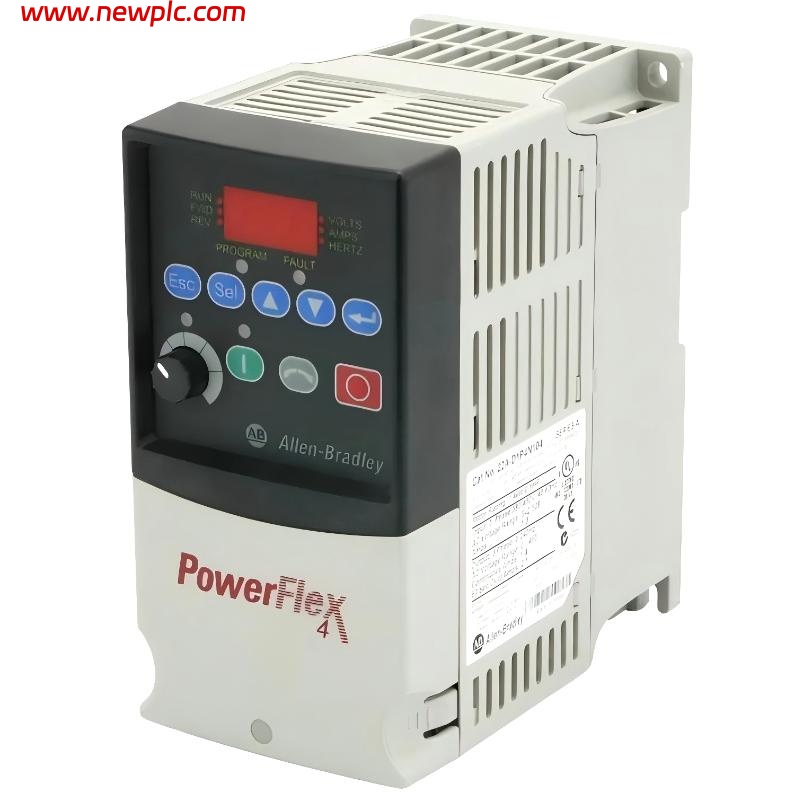

| Product Name | Allen-Bradley 22A-D1P4N104 |
| Product Series | PowerFlex 4 AC Drive |
| Product Type | Variable Frequency Drive (VFD) |
| Application | General-purpose motor speed control (fans, pumps, conveyors, light industrial equipment) |
| Input Voltage | 380–480 V AC, three-phase |
| Output Voltage | 0–480 V AC, three-phase |
| Output Current | 1.4 A |
| Power Rating | 0.37 kW (0.5 HP) |
| Frequency Range | 0–240 Hz |
| Control Method | V/Hz control, Sensorless Vector Control (SVC) |
| Communication | RS-485 |
| Protection Rating | IP20 (open type) |

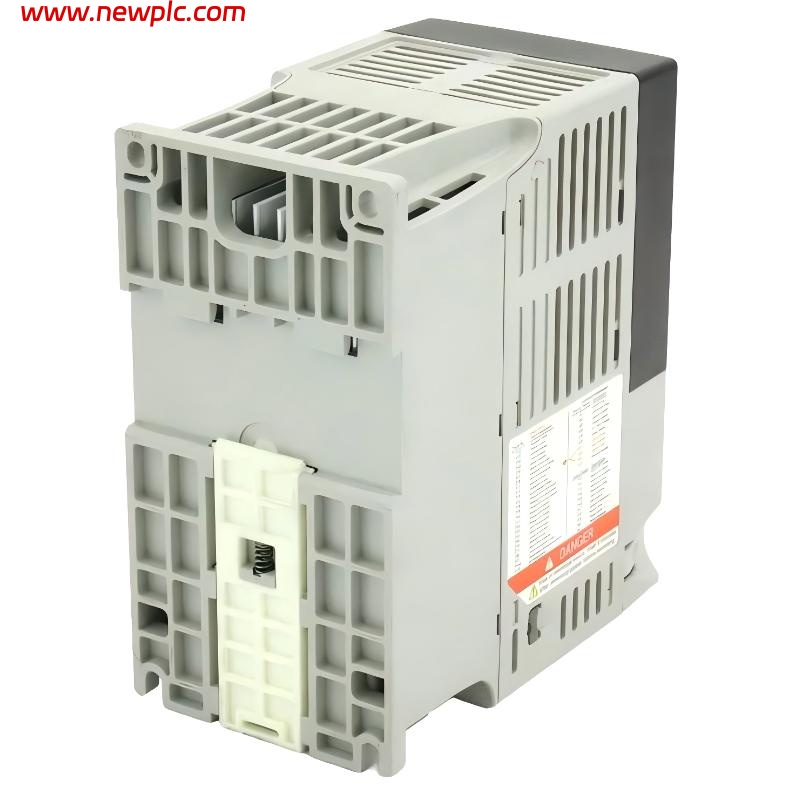

| Mounting Type | Panel mount / DIN rail |
| Interface | Integral keypad with LED display |
| Power Factor | 0.98 |
| Dimensions (L × W × H) | 234 mm × 138 mm × 190 mm |
| Weight | 1.32 kg |
| Cooling Method | Natural convection |
| Operating Temperature | 10°C to 50°C |
FAQ
FAQ
Q1. What is the 22A-D1P4N104 used for?
It is used to control the speed and torque of three-phase AC motors in industrial applications.
Q2. What type of input power does it require?
It operates on 380–480 V AC three-phase input.
Q3. What is the rated output capacity?
The drive provides 1.4 A output current and supports 0.37 kW (0.5 HP) motors.
Q4. What control methods are supported?
It supports both V/Hz control and sensorless vector control for improved performance.
Q5. What are the exact physical dimensions?
The dimensions are 234 mm × 138 mm × 190 mm.
Q6. What is the weight of the device?
The weight is approximately 1.32 kg.
Q7. Does it support communication protocols?
Yes, it includes RS-485 communication for integration into automation systems.
Q8. Is this model still available?
No, it has been officially discontinued, and a newer replacement model is recommended.
