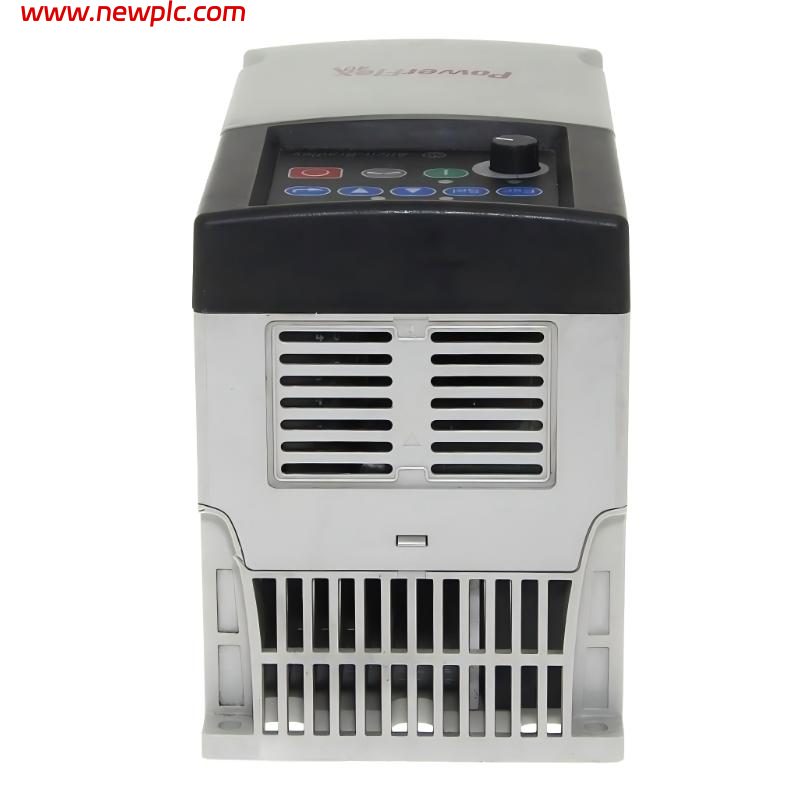

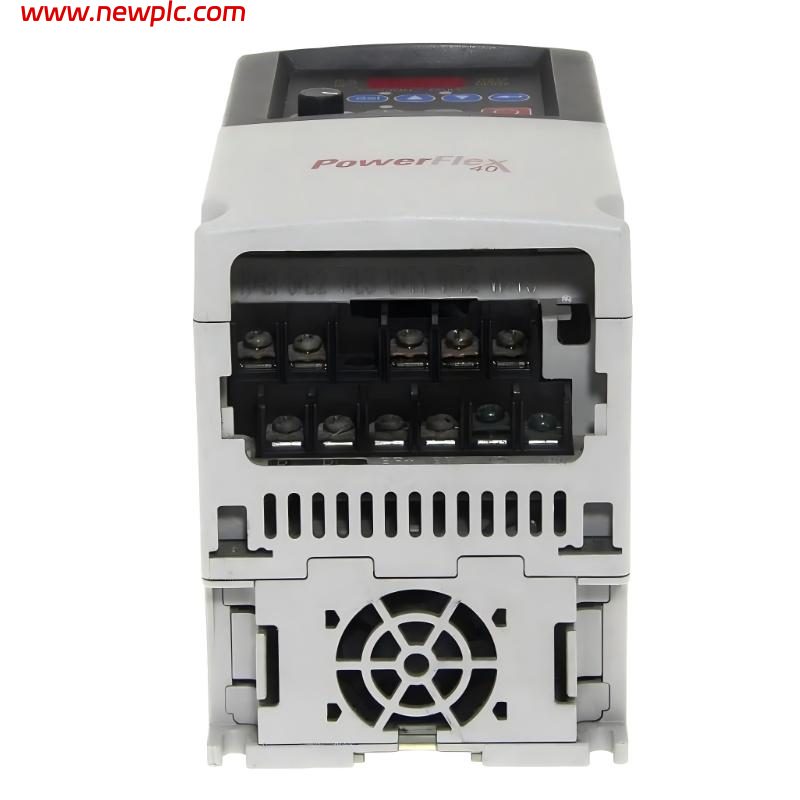

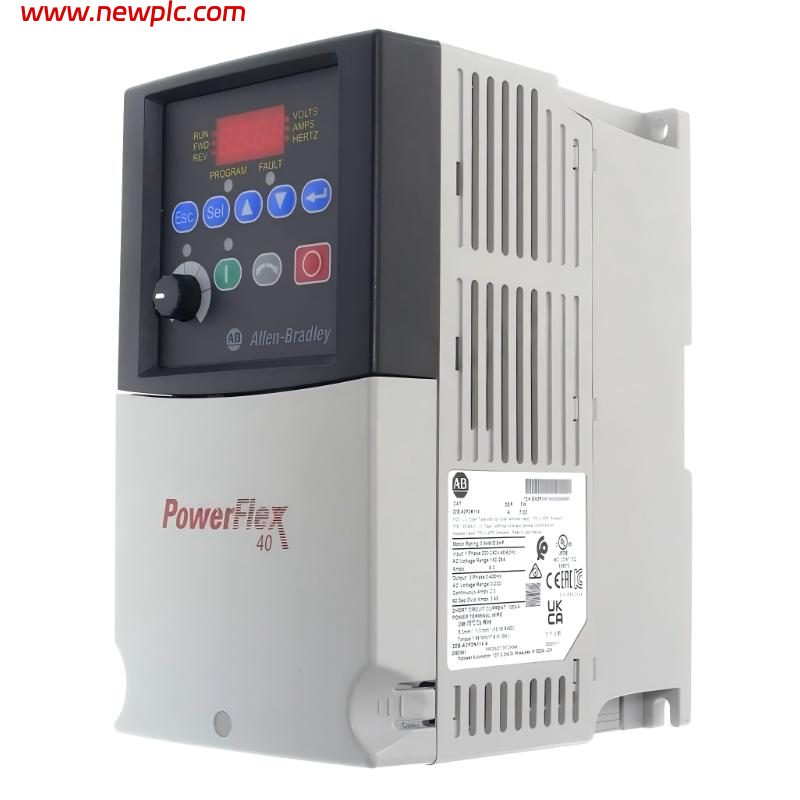

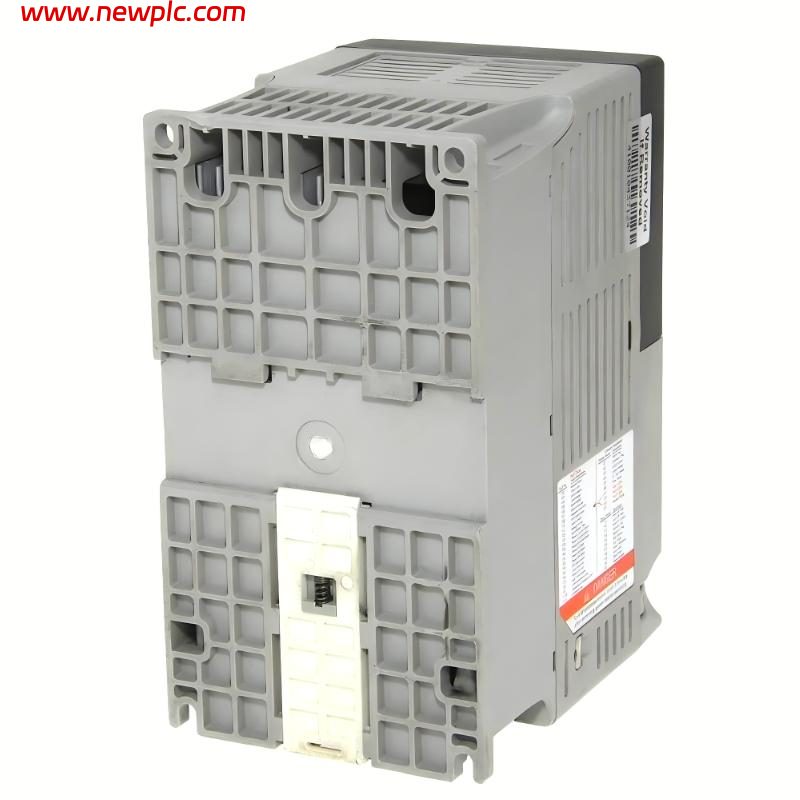

Allen Bradley 22B-A2P3N114 AC Variable Frequency Drive (VFD)

FAQ

Q1: What is the Allen-Bradley 22B-A2P3N114 used for?
A1: The 22B-A2P3N114 is a PowerFlex 40 AC drive used for variable speed control of small three-phase AC motors in industrial and OEM applications.

Q2: What is the power rating of the 22B-A2P3N114?
A2: The drive is rated at 0.4 kW (0.5 HP) with a rated output current of 2.3 A.

Q3: What input power does the 22B-A2P3N114 require?
A3: The drive operates on 100…120V AC single-phase input power.

Q4: Does the 22B-A2P3N114 include an integrated brake transistor?
A4: Yes. The drive includes a built-in brake transistor for dynamic braking applications.

Q5: What communication interface is available on the 22B-A2P3N114?
A5: The drive includes an integrated RS-485 communication interface using the DSI protocol.

Q6: What are the actual dimensions and weight of the 22B-A2P3N114?
A6: The approximate dimensions are 150 × 72 × 136 mm (H × W × D) and the approximate weight is 1.2 kg.

Q7: What control methods are supported by the 22B-A2P3N114?
A7: The drive supports V/Hz control and sensorless vector motor control methods.

Q8: What are common applications for the 22B-A2P3N114?
A8: Common applications include conveyors, pumps, fans, mixers, packaging equipment, and general-purpose industrial motor control systems.
