Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PowerFlex 4 |
| Model Number | 22A-D2P3N104 |
| Product Type | AC Variable Frequency Drive (VFD) |
| Drive Function | Adjustable Frequency AC Motor Drive |
| Input Voltage | 380…480V AC |
| Nominal Voltage Class | 480V Class |
| Input Phase | 3-Phase |
| Output Voltage | 0…460V AC |
| Output Phase | 3-Phase |
| Rated Output Current | 2.3 A |
| Power Rating | 0.75 kW / 1 HP |
| Input Frequency | 48…63 Hz |
| Output Frequency Range | 0…400 Hz |
| Enclosure Rating | IP20 / UL NEMA Type Open |
| Frame Size | Frame A |

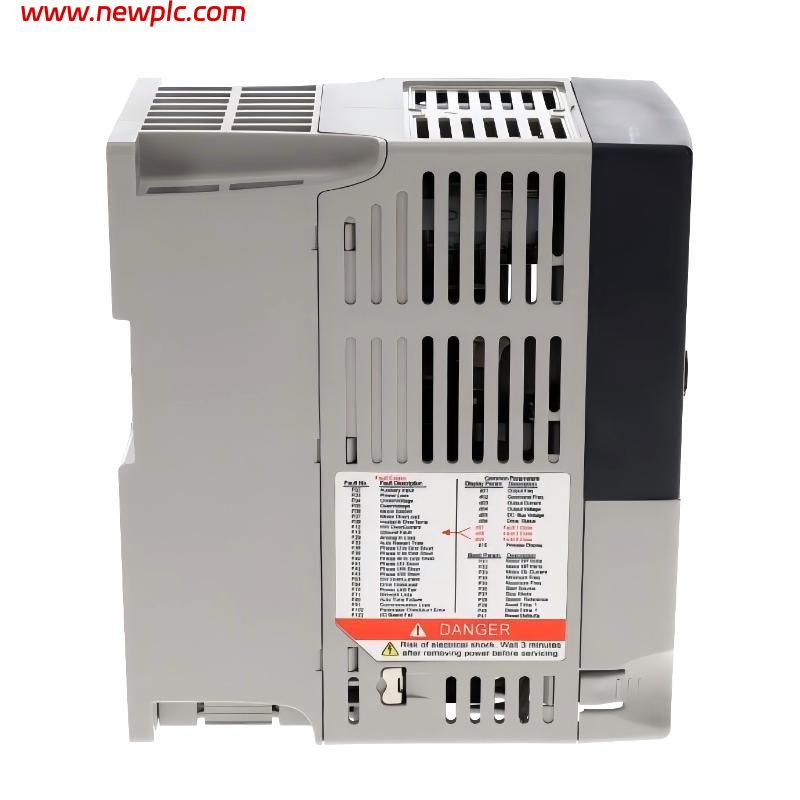

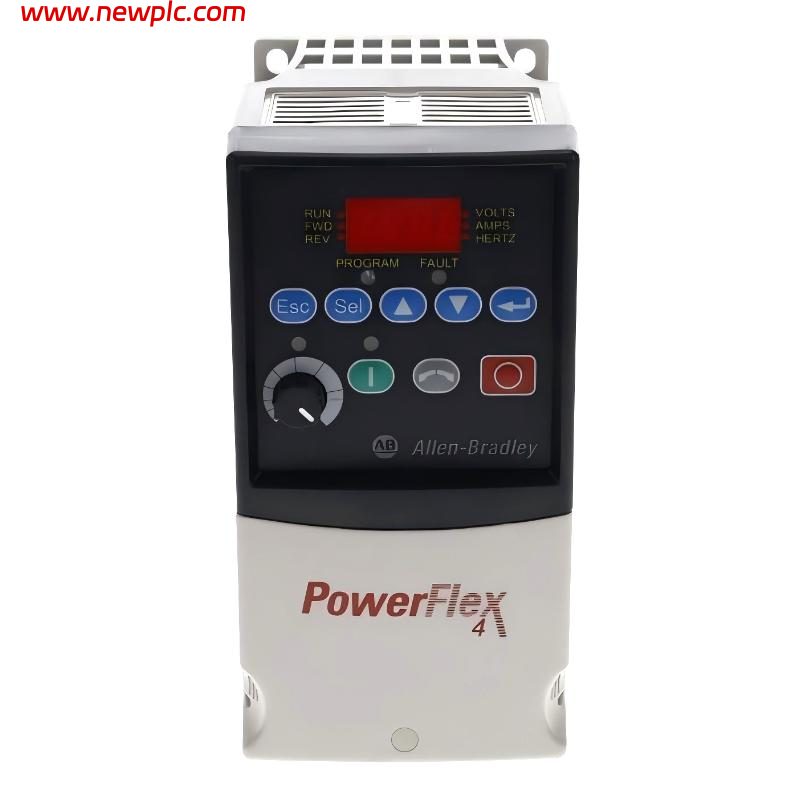

| Integrated Keypad | Fixed Integral LED Keypad |
| Display Type | 4-digit LED Display |
| Communication Interface | RS-485 (DSI Protocol) |
| Control Methods | V/Hz Control, Sensorless Vector Control |
| Embedded Brake Transistor | Yes |
| EMC Filter | No Internal EMC Filter |

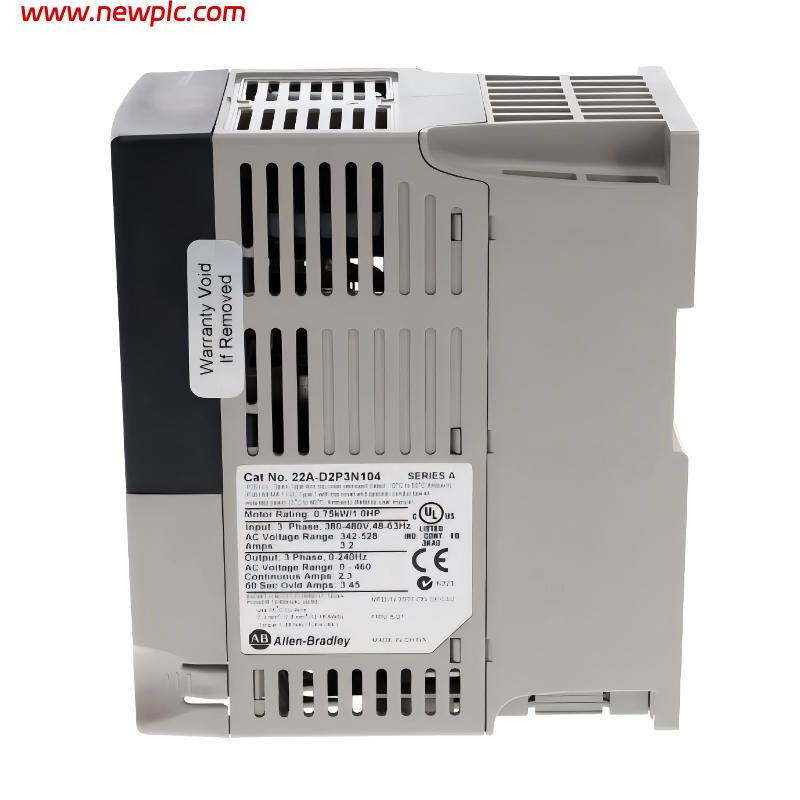

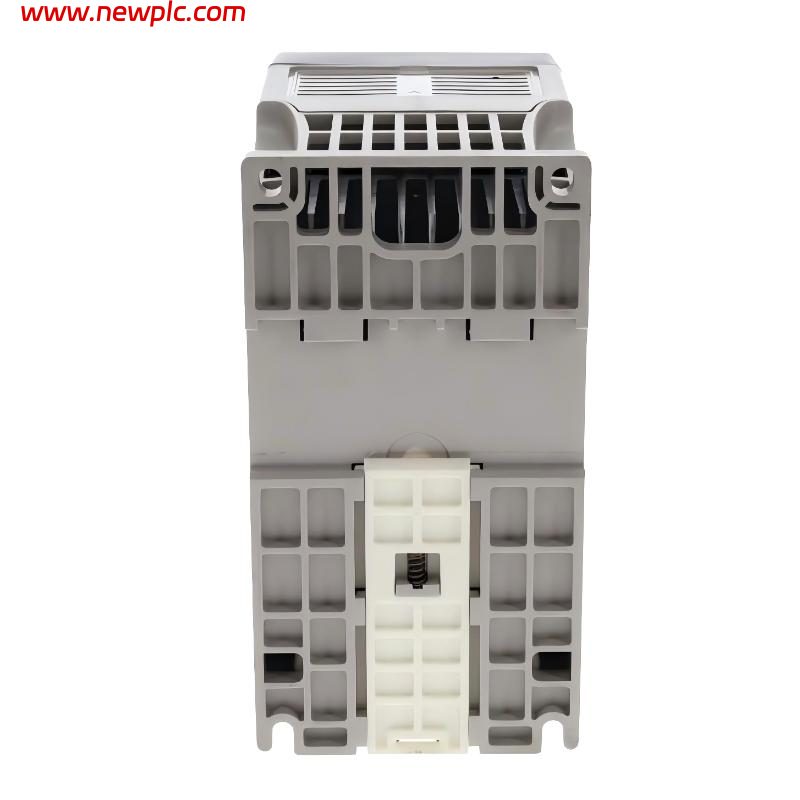

| Mounting Type | Panel Mount / DIN Rail |
| Cooling Method | Natural / Forced Air Cooling |
| Protection Features | Overcurrent, Overvoltage, Undervoltage, Ground Fault, Motor Overload |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 0% to 95% Non-Condensing |
| Certifications | UL, CE, cUL, C-Tick |
| Lifecycle Status | Discontinued (Replacement: 25B-D2P3N114) |
| Actual Dimensions (H × W × D) | Approx. 150 × 72 × 136 mm |
| Actual Weight | Approx. 1.1 kg |
| Typical Applications | Small Conveyors, Pumps, Fans, Mixers, OEM Equipment |
FAQ
FAQ
Q1: What is the Allen-Bradley 22A-D2P3N104 used for?
A1: The 22A-D2P3N104 is a PowerFlex 4 AC drive used for variable speed control of three-phase AC motors in industrial and OEM applications.
Q2: What is the power rating of the 22A-D2P3N104?
A2: The drive is rated at 0.75 kW (1 HP) with a rated output current of 2.3 A.
Q3: What input power does the 22A-D2P3N104 require?
A3: The drive operates on 380…480V AC three-phase input power.
Q4: Does the 22A-D2P3N104 include an integrated brake transistor?
A4: Yes. The drive includes a built-in brake transistor for dynamic braking applications.
Q5: What communication interface is available on the 22A-D2P3N104?
A5: The drive includes an integrated RS-485 communication interface using the DSI protocol.
Q6: What are the actual dimensions and weight of the 22A-D2P3N104?
A6: The approximate dimensions are 150 × 72 × 136 mm (H × W × D) and the approximate weight is 1.1 kg.
Q7: Is the 22A-D2P3N104 still active?
A7: No. The model is discontinued and has been replaced by the PowerFlex 525 equivalent model 25B-D2P3N114.
Q8: What are common applications for the 22A-D2P3N104?
A8: Common applications include conveyors, pumps, fans, packaging equipment, mixers, and small industrial motor control systems.
